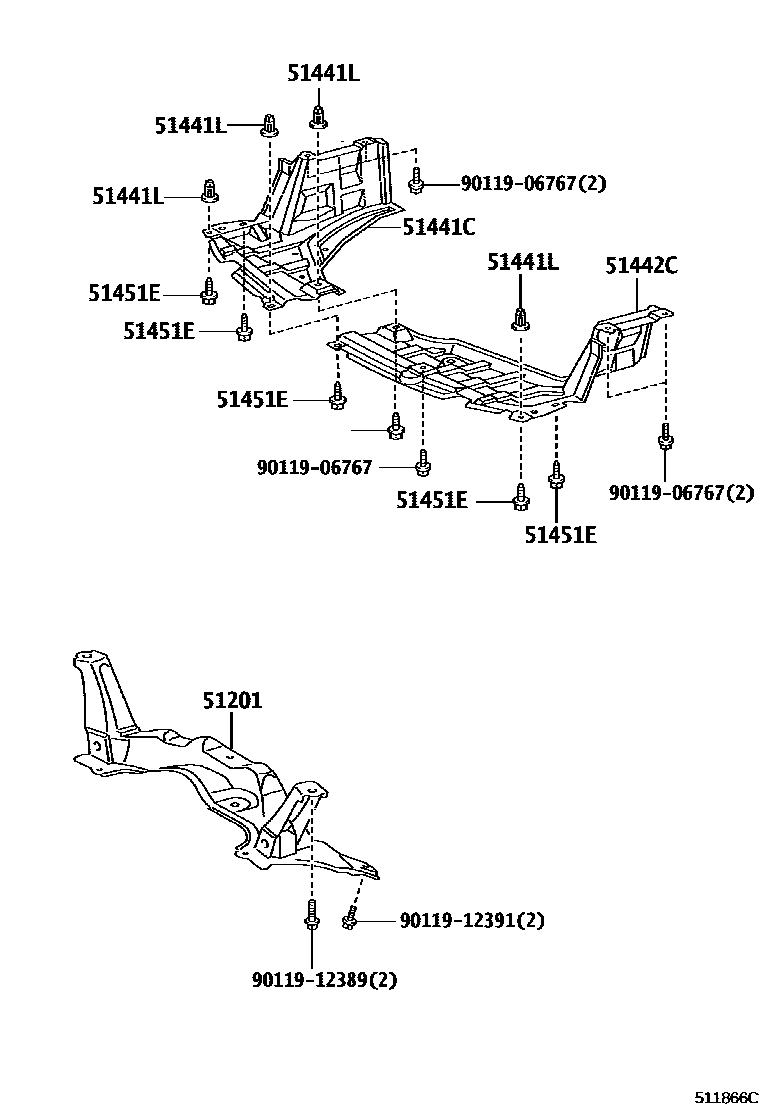

Toyota YARIS — SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52080iNCP91200508-201101

sub51201-52083

main51201-52083iNCP91201102-201107

sub51201-52084

51441CCOVER, ENGINE UNDER, RH

main51441-52140iNCP91200508-200612

sub51441-52141

main51441-52141iNCP91200701-200808

sub51441-52250

main51441-52180iNCP91201012-201107

main51441-52250iNCP91200808-201011

51441LGROMMET, NO.2(FOR ENGINE UNDER COVER)

main90189-06076iNCP91200508-201108

51442CCOVER, ENGINE UNDER, LH

main51442-52080iNCP91200508-200608

sub51442-52081

main51442-52081iNCP91200609-200612

sub51442-52082

main51442-52082iNCP91200701-200808

sub51442-52110

main51442-52090iNCP91201012-201107

main51442-52110iNCP91200808-201011

51451ESCREW, NO.2

main90159-60383iNCP91200508-201108

9011906767

main90119-06767

9011912389

main90119-12389

9011912391

main90119-12391

8 parts on this diagram · 1 diagram in section
