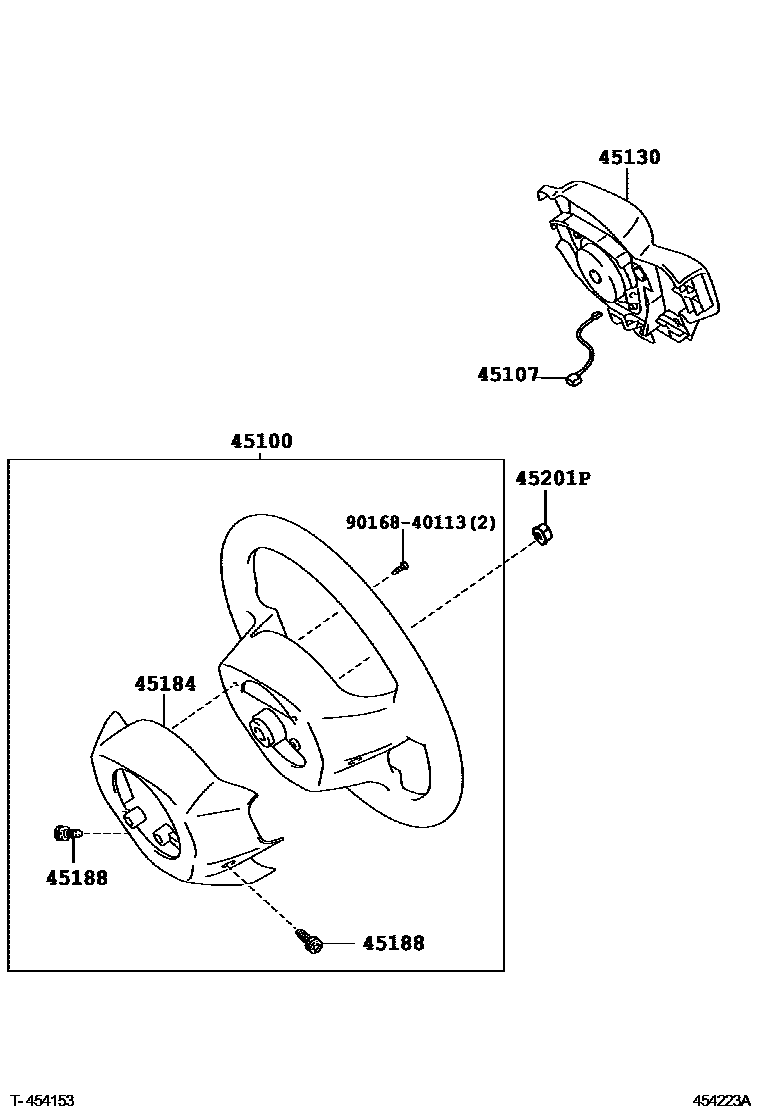

Toyota YARIS — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-52321-B0iNCP91..STD200508-201108

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-52331-B0iNCP91..5D..STD200508-201108

3-SPOKE,LEATHER,DK.GRAY,TRIM1#

main45100-52331-B0iNCP91..5D..STD200508-201108

3-SPOKE,LEATHER,MEXICO SPEC&PREMIUM PACKAGE,DK.GRAY,TRIM1#

main45100-52331-B0iNCP91..RS200708-200808

3-SPOKE,LEATHER,MEXICO SPEC&PREMIUM,DK.GRAY,TRIM1#

main45100-52331-B0iNCP91..RS200708-200808

3-SPOKE,LEATHER,SPORTS PACKAGE,DK.GRAY,TRIM1#

main45100-52331-B0iNCP91..RS200808-201108

3-SPOKE,LEATHER,SPORT PACKAGE,DK.GRAY,TRIM1#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-52010iNCP91200508-200808

main45107-52010iNCP91200808-201107

CRUISE CONTROL-WITH(ELECTRIC)

45130BUTTON ASSY, HORN

main45130-52371-B0iNCP91200508-201107

DK.GRAY,TRIM1#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-52090-B0iNCP91200508-201107

DK.GRAY,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010iNCP91200508-201107

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iNCP91200508-201107

9016840113

main90168-40113

7 parts on this diagram · 1 diagram in section
