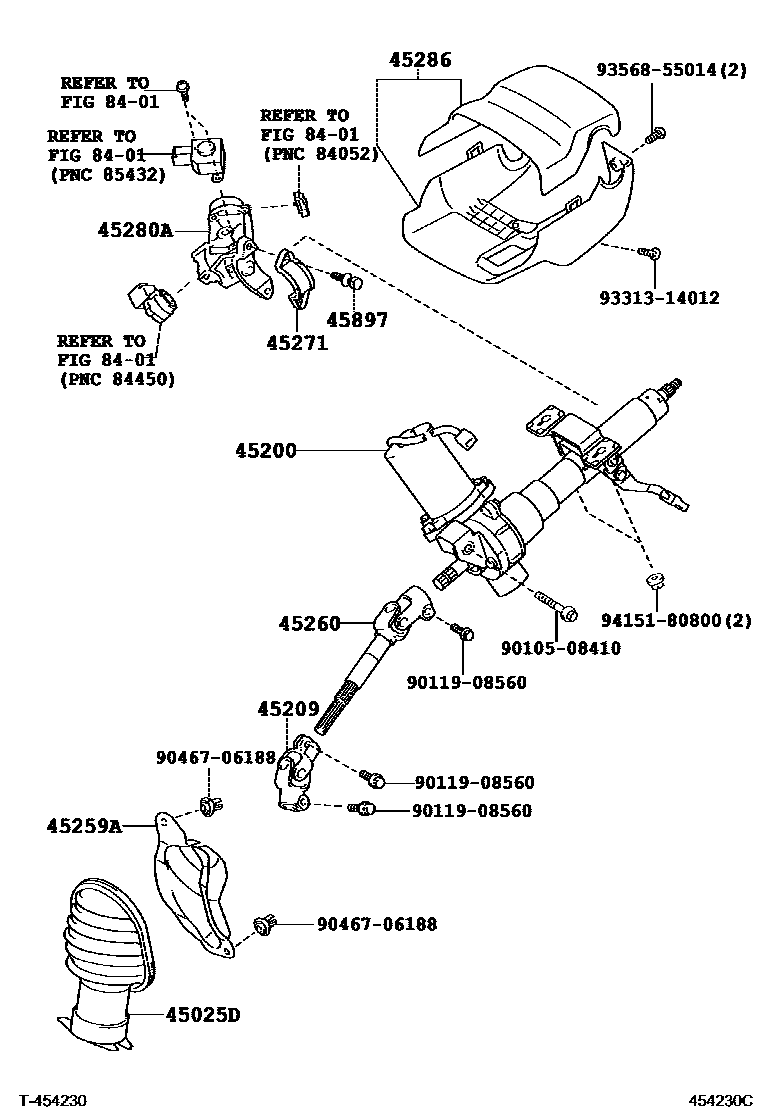

Toyota YARIS — STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52140iNCP91200508-201107

sub45025-52170

45200POST ASSY, STEERING

main45200-52300iNCP91200508-201107

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52040iNCP91200508-201107

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-52020iNCP91200508-201107

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52210iNCP91200508-201107

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iNCP91200508-201107

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-22510iNCP91..4FC200508-201108

main45280-52090iNCP91..5F200508-201108

sub45280-22510

45286COVER, STEERING COLUMN

main45286-52929-B0iNCP91..CND;NCP91..3D..USA200508-200812

DK.GRAY,TRIM1#

sub45286-52934

main45286-52934-B0iNCP91200812-201107

DK.GRAY,TRIM1#

45897BOLT, STEERING LOCK SET

main45897-12020iNCP91200508-201107

8401

9010508410

main90105-08410

9011908560

main90119-08560

9046706188

main90467-06188

9331314012

main93313-14012

9356855014

main93568-55014

9415180800

main94151-80800

16 parts on this diagram · 1 diagram in section
