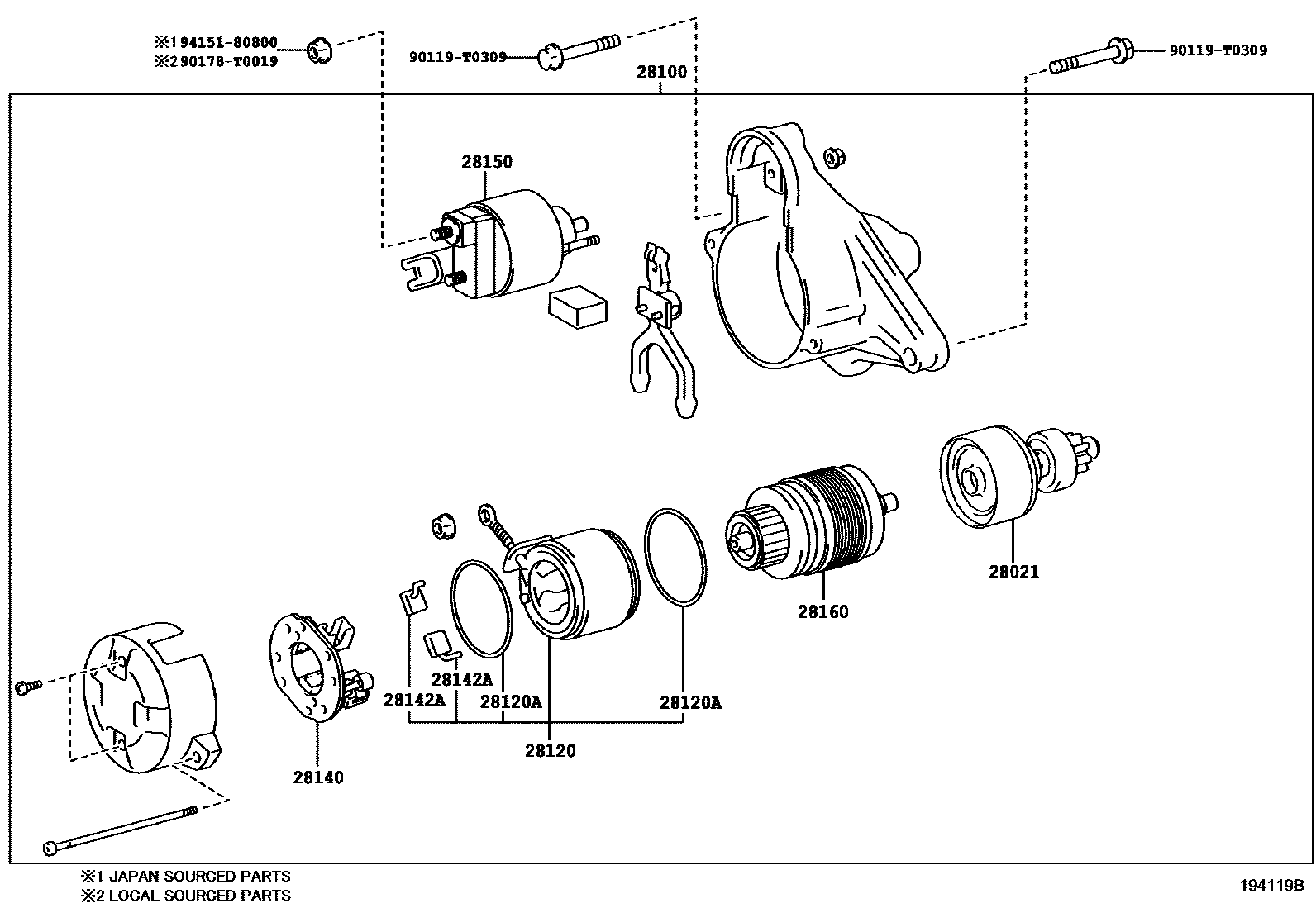

Toyota YARIS — STARTER

0001 112V 0.8KW 0002 112V 0.8KW 0003 112V 0.8KW 0004 112V 1.0KW 0007 112V 1.0KW,1.2KW 0010 112V 1.0KW,1.2KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0M120i1NZFE..NCP150..TAIW201409-201604

main28021-0T070i1NZFE..NCP150..C201310-201609

main28021-0Y300i1NRFE..NSP150..RHD;1NRFE,2NRFE..NSP150,151..5F..(IDN,PH)..R201709-202108

main28021-0Y310i1NRFBE,2NR#..NSP150,151..H201806-201910

main28021-0Y470i3NRFKE..NSP152201911-202302

main28021-37130i2NRFE..NSP151..F201804-202101

28100STARTER ASSY

main28100-0M110i1NZFE,2NZFE..NCP15#..GCC,GEN,PH,VN201403-201606

12V 0.8KW

main28100-0M120i1NZFE..NCP150..TAIW201409-201604

12V 0.8KW

main28100-0Y170i3NRFE..NSP152201310-201708

12V 0.8KW

main28100-0Y300i2NRFE..NSP151..5F..R..C201802-202108

12V 1.0KW

main28100-0Y310i2NRFE..NSP151..H201806-201910

12V 1.0KW

main28100-0Y320i1NRFBE,2NRFBE..NSP150,151201806-201910

12V 1.2KW

main28100-0Y340i1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN201607-201708

12V 1.0KW

main28100-0Y350i2NRFE..NSP151..B201904-202011

12V 1.0KW

main28100-0Y370i2NRFE..NSP151..F201804-202101

12V 1.0KW

main28100-0Y390i3NRFE..NSP152201709-201910

12V 1.0KW

main28100-0Y470i3NRFKE..NSP152201911-202302

12V 1.2KW

28120YOKE ASSY, STARTER

main28120-0D040i1NZFE,2NZFE..NCP15#..GCC,GEN,PH,VN201310-201606

main28120-47120i1NZFE..NCP150..TAIW201409-201604

28120ARING, O(FOR STARTER YOKE)

main90068-14029×2i1NZFE..NCP150..C201310-201609

main90099-14092×2i1NZFE..NCP150..TAIW201409-201604

28140HOLDER ASSY, STARTER BRUSH

main28140-0T070i1NZFE,2NZFE..NCP15#..GCC,GEN,PH,VN201310-201606

main28140-0T080i1NZFE..NCP150..TAIW201409-201604

main28140-0Y210i1NRFBE,2NR#..NSP150,151..H201806-201910

main28140-0Y300i1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN201607-201708

main28140-21070i2NRFE..NSP151..F201804-202101

main28140-K0060i3NRFKE..NSP152201911-202302

28142ASTARTER KIT

main28142-70020×2i3NRFE..NSP152201310-201708

28150SWITCH ASSY, MAGNET STARTER

main28150-0M050i1NZFE,2NZFE..NCP15#..GCC,GEN,PH,VN201403-201606

main28150-0Y170i3NRFE..NSP152201310-201708

main28150-21020i1NZFE..NCP150..TAIW201409-201604

28160ARMATURE ASSY, STARTER

main28160-0T100i3NRFE..NSP152201310-201708

main28160-0Y300i2NRFE..NSP151..PH,SA;1NRFE..NSP150..CVT..PH201709-202207

main28160-0Y310i2NRFE..NSP151..H201806-201910

main28160-0Y320i1NRFBE,2NRFBE..NSP150,151201806-201910

main28160-0Y470i3NRFKE..NSP152201911-202302

main28160-47180i2NRFE..NSP151..F201804-202101

main28160-70021i1NZFE..NCP150..TAIW201409-201604

90119T0309

main90119-T0309

90178T0019

main90178-T0019

9415180800

main94151-80800

11 parts on this diagram · 6 diagrams in section
