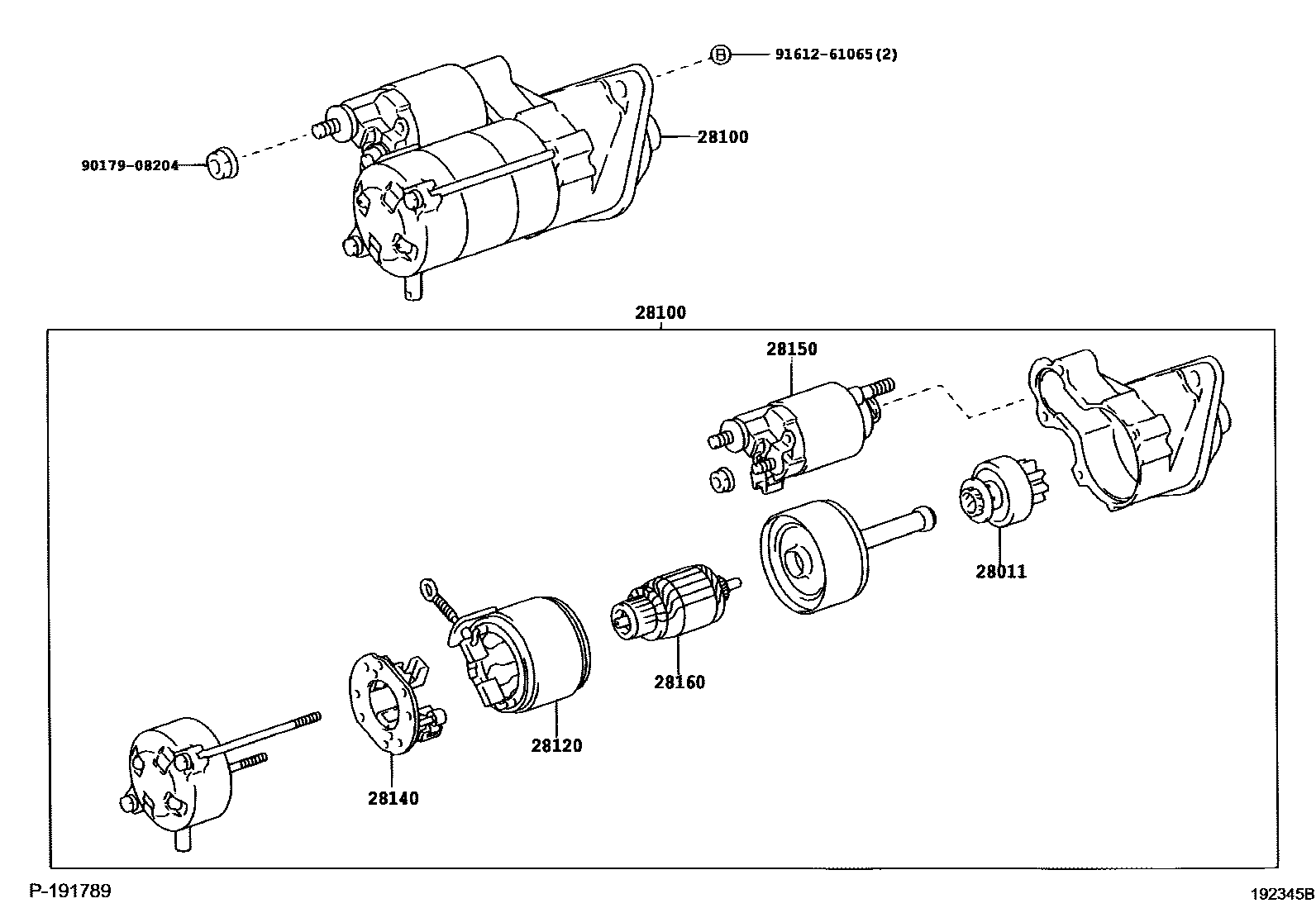

Toyota YARIS — STARTER

0001 112V 0.8KW 0002 112V 1.6KW 0003 112V 0.8KW 0004 112V 0.8KW

28011CLUTCH SUB-ASSY, STARTER

main28011-70020i1NZFE..NCP91..USA200808-201102

28100STARTER ASSY

main28100-21062supersedes 28100-21020i1NZFE..NCP91..CND200808-200909

12V 1.6KW

main28100-21063supersedes 28100-21021i1NZFE..NCP91..CND200910-201107

12V 1.6KW

28120YOKE ASSY, STARTER

main28120-28040i1NZFE..NCP91..CND200508-200708

COLD SPEC

main28120-28060supersedes 28120-70020i1NZFE..NCP91..CND200808-201107

COLD SPEC

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i1NZFE..NCP91..3D..USA200508-200708

28150SWITCH ASSY, MAGNET STARTER

main28150-16160i1NZFE..NCP91..USA200508-200705

main28150-21020i1NZFE..NCP91..USA200706-200708

28160ARMATURE ASSY, STARTER

main28160-21060supersedes 28160-70021i1NZFE..NCP91..CND200508-200708

COLD SPEC

9017908204

main90179-08204

9161261065

main91612-61065

8 parts on this diagram · 4 diagrams in section
