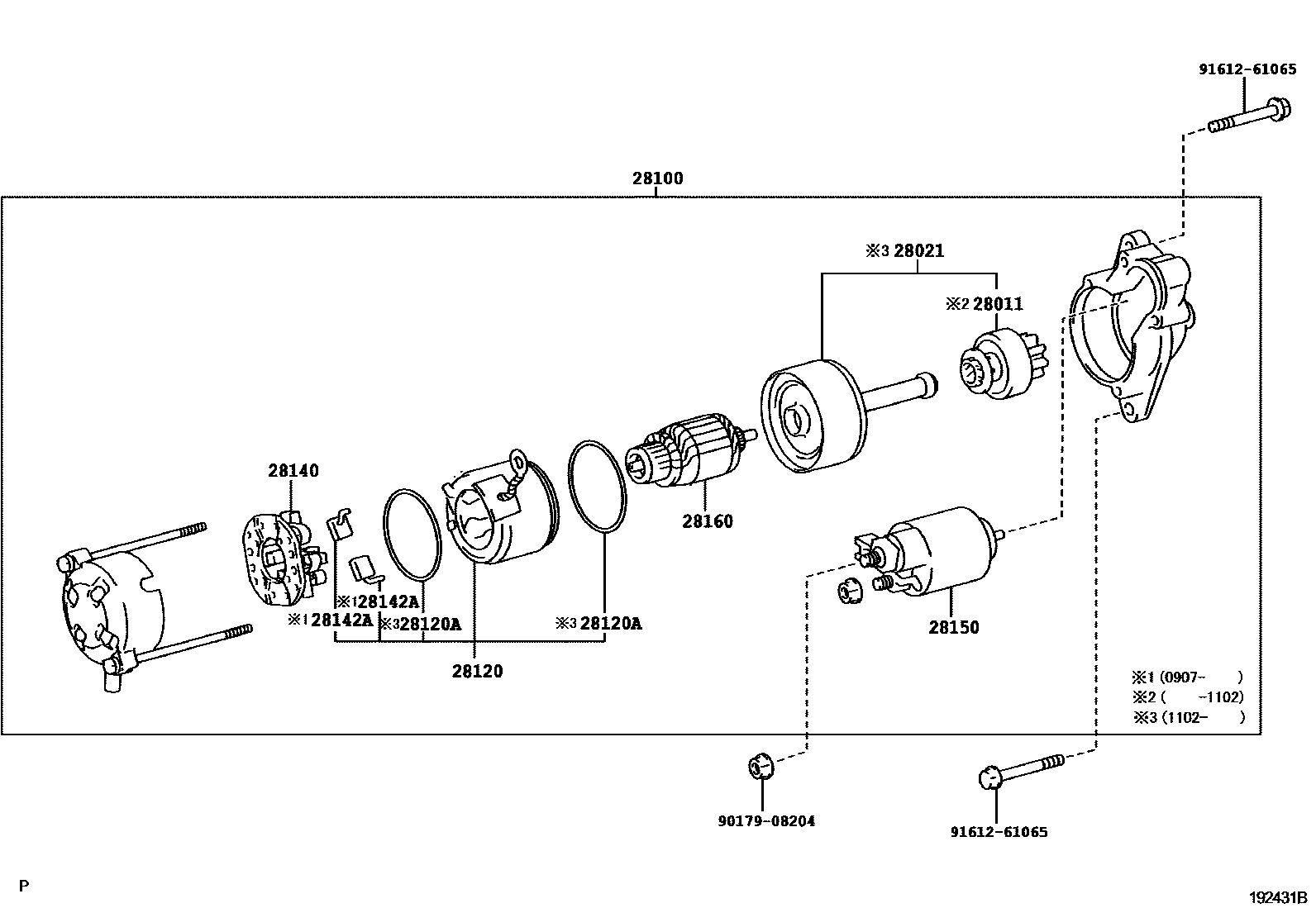

Toyota YARIS — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-70020i200602-200808

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060supersedes 28021-70020i200602-200808

COLD AREA SPEC

28100STARTER ASSY

main28100-21062i200602-200808

12V 1.6KW; 12V 1.6KW,COLD AREA SPEC

main28100-21063supersedes 28100-21022i200910-201208

12V 1.6KW; 12V 1.6KW,COLD AREA SPEC

28120YOKE ASSY, STARTER

main28120-28040i200602-200807

COLD AREA SPEC

main28120-28060supersedes 28120-70020i200807-200808

COLD AREA SPEC

28120ARING, O(FOR STARTER YOKE)

main90099-14092×2i201102

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i200602-200808

28142ASTARTER KIT

main28142-70020×2i200907

28150SWITCH ASSY, MAGNET STARTER

main28150-16160i200602-200705

main28150-21020i200706-200808

28160ARMATURE ASSY, STARTER

main28160-21060supersedes 28160-70021i200602-200808

COLD AREA SPEC

9017908204

main90179-08204

9161261065

main91612-61065

11 parts on this diagram · 2 diagrams in section

STARTER for Toyota YARIS

This section contains 23 genuine Toyota parts for the STARTER system of the Toyota YARIS. Key components include: CLUTCH SUB-ASSY, STARTER, CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, PIN, STARTER DRIVE LEVER SET.
