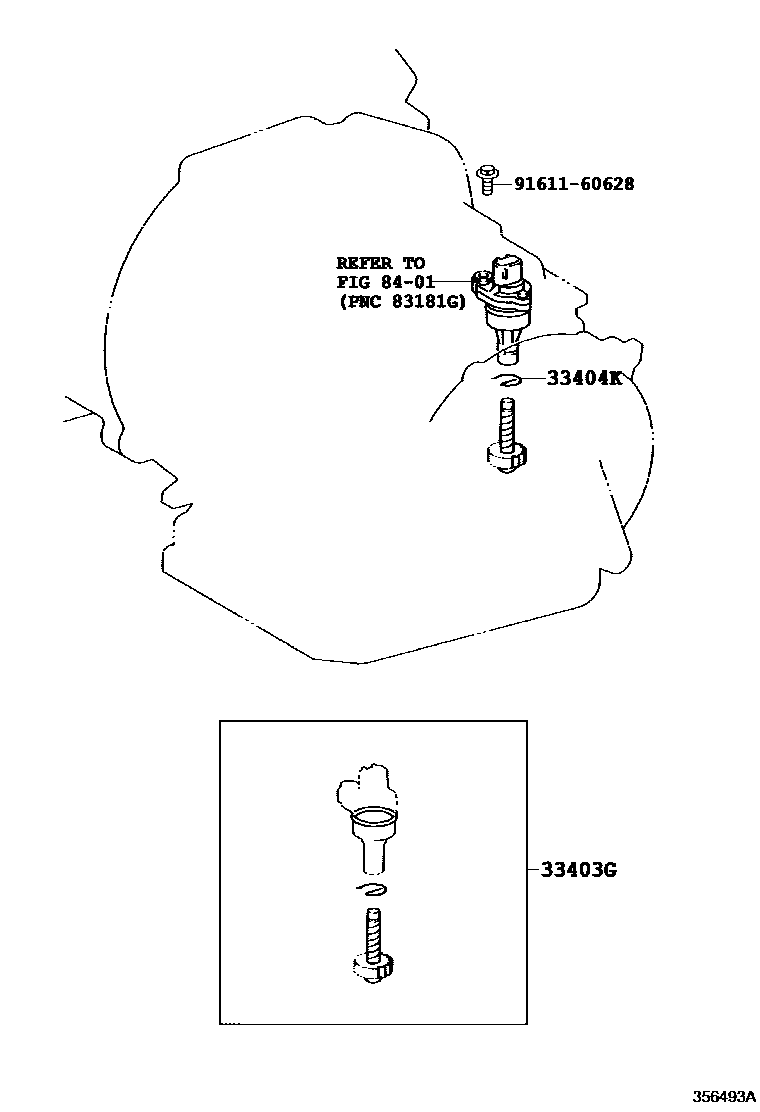

Toyota YARIS — SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29525iNCP91..4FC..CND200508-201108

N=21,MARK 21:25

main33403-29525iNCP91..4FC..RS200508-201108

N=21,MARK 21:25,TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM

main33403-29525iNCP91..4FC..RS200508-201108

N=21,MARK 21:25,TIRE & DISK WHEEL-185/60R15 5.5J BLACK

main33403-29525iNCP91..4FC..RS200508-200708

N=21,MARK 21:25,TIRE & DISK WHEEL-185/60R15 5.5J STEEL BLACK

main33403-29525iNCP91..4FC..RS200708-200808

N=21,MARK 21:25,TIRE & DISK WHEEL-185/60R15 AS5.5J ALLOY

main33403-29525iNCP91..4FC..RS200708-200808

N=21,MARK 21:25,TIRE & DISK WHEEL-185/60R15 5.5J AS BL W/N

main33403-29525iNCP91..4FC..RS200708-200808

N=21,MARK 21:25,TIRE & DISK WHEEL-185/60R15 AS5.5J BLACK

main33403-59015iNCP91..4FC..USA200508-201108

N=22,MARK 22:25

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iNCP91..4FC200508-200808

8401

9161160628

main91611-60628

4 parts on this diagram · 1 diagram in section
