Toyota YARIS — SPEAKER

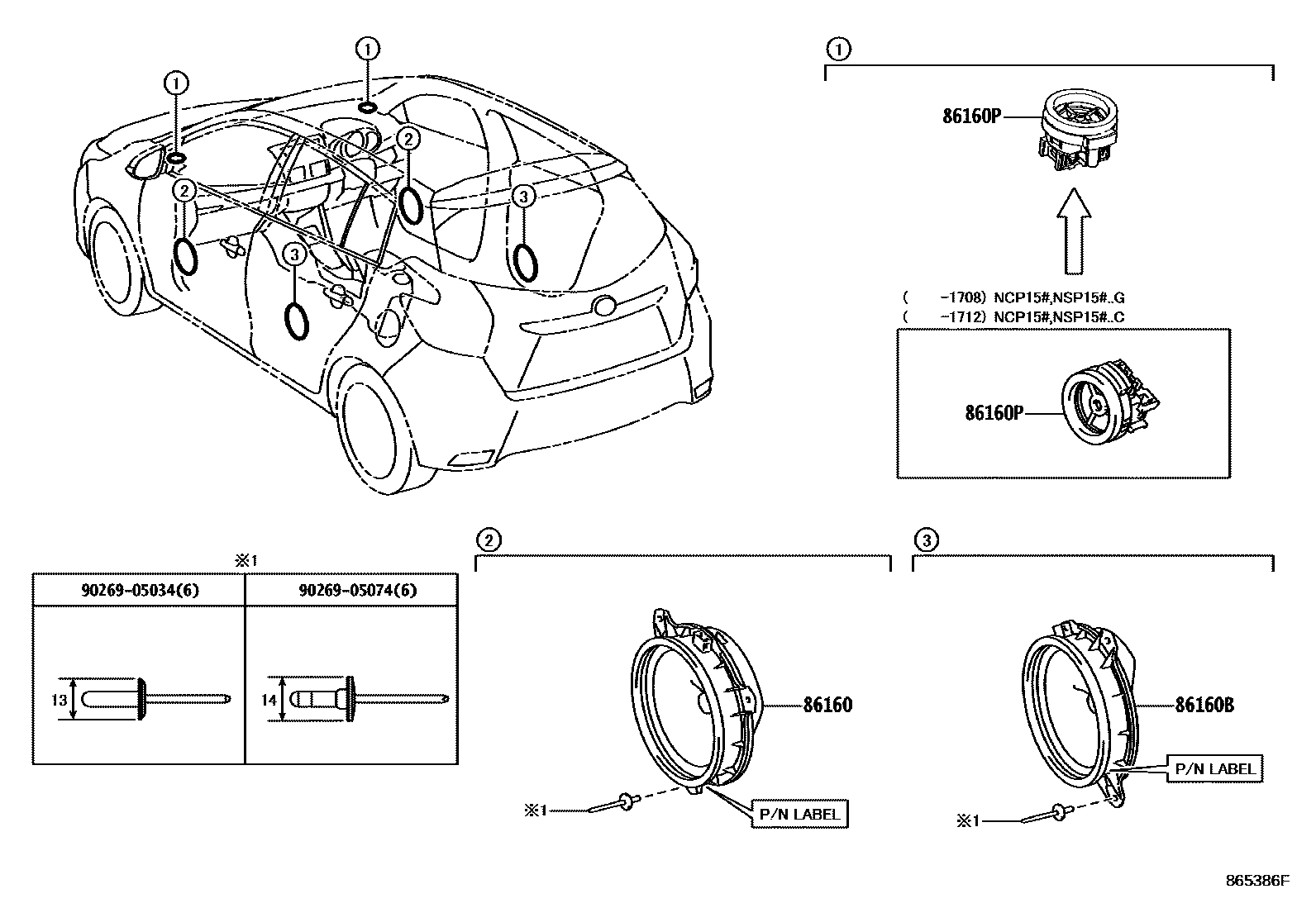

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-02750×2i201512-201604

main86160-02B00×2i201310-201606

main86160-02C70×2i201806-201910

main86160-02D30×2i202009-202108

main86160-0D400×2i201403-201609

main86160-0K300×2i201904-202011

main86160-0K350×2i201409-201512

main86160-0K510×2i202011-202108

86160BSPEAKER ASSY, REAR

main86160-02750×2i201512-201604

main86160-02B00×2i201310-201606

main86160-02C70×2i201806-201910

main86160-02D30×2i202011-202108

main86160-0D400×2i201403-201609

main86160-0K300×2i201904-202011

main86160-0K350×2i201409-201512

main86160-0K510×2i202011-202108

86160PSPEAKER ASSY, FRONT NO.2

main86160-0D420×2i201806-201910

XL-PLUS PACKAGE

main86160-0K270×2i201403-201606

main86160-0K280×2i201403-201609

BRUNEI SPEC

main86160-0K290×2i201904-202011

9026905034

main90269-05034

9026905074

main90269-05074

5 parts on this diagram · 1 diagram in section

SPEAKER for Toyota YARIS

This section contains 5 genuine Toyota parts for the SPEAKER system of the Toyota YARIS. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
