Toyota YARIS — SEAT BELT & CHILD RESTRAINT SEAT

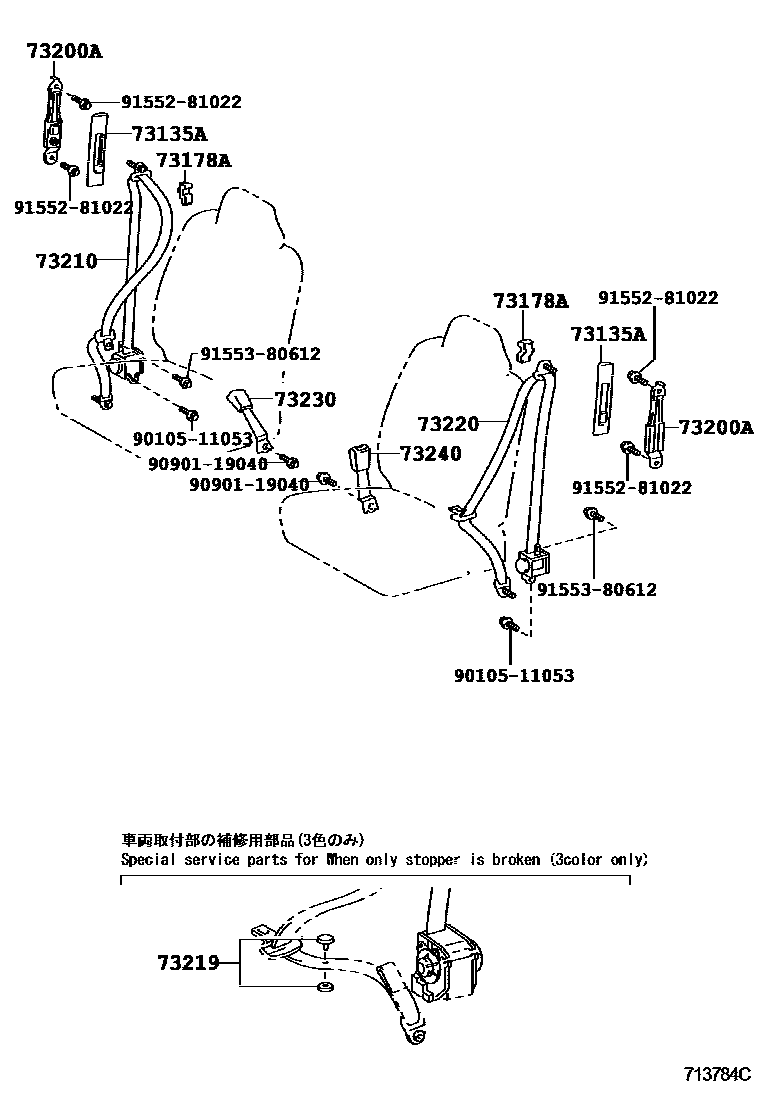

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT(CENTER = 3 POI0003 1REAR SEAT BELT(CENTER = 2 POI

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73135-52020-B0iNCP91..5D..RS200508-201107

GRAY,TRIM18

main73135-52020-B0iNCP91..5D..STD200508-201107

GRAY,TRIM1#

main73135-52020-B1iNCP91..5D..RS200508-201107

DK.GRAY,TRIM18

main73135-52020-B1iNCP91..5D..RS200708-200808

DK.GRAY,TRIM1#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-52020-B0iNCP91..5D..RS;NCP91..5D..USA200508-201107

GRAY,TRIM1#

main73178-52020-B0iNCP91..5D..RS200508-201107

GRAY,TRIM18

main73178-52020-B1iNCP91..5D..RS;NCP91..5D..USA200508-201107

DK.GRAY,TRIM18

main73178-52020-B1iNCP91..5D..RS200708-200808

DK.GRAY,TRIM1#

main73178-52060-B0iNCP91..USA200508-201107

DK.GRAY,TRIM18

main73178-52060-B0iNCP91..USA200708-200808

DK.GRAY,TRIM1#

main73178-52060-B1iNCP91..3D..STD..CND200508-201107

GRAY,TRIM18

main73178-52060-B1iNCP91..3D..STD..CND200508-201107

GRAY,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-52050-B0iNCP91..5D..RS200708-200808

DK.GRAY,TRIM1#

main73200-52050-B0iNCP91..5D..RS200508-201107

DK.GRAY,TRIM18

main73200-52050-B1iNCP91..5D..STD200508-201107

GRAY,TRIM18

main73200-52050-B1iNCP91..5D..RS200508-201107

GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-52500-C2iNCP91..3D..RS;NCP91..3D..USA200808-200902

BLACK,TRIM18,TRIM = FB**,FL**

sub73210-52501

main73210-52500-C2iNCP91..3D..RS200508-200708

BLACK,TRIM18

sub73210-52501

main73210-52500-C2iNCP91..USA200708-200808

BLACK,TRIM18,TRIM = YF**

sub73210-52501

main73210-52500-C2iNCP91..USA200708-200808

BLACK,TRIM1#

sub73210-52501

main73210-52500-C3iNCP91..USA200508-200902

BLACK,TRIM1#

sub73210-52501

main73210-52500-C3iNCP91..3D..STD..CND200708-200808

BLACK,TRIM18,TRIM = FB**

sub73210-52501

main73210-52500-C3iNCP91..3D..RS;NCP91..3D..USA200808-200902

BLACK,TRIM18,TRIM = FC**,FD**

sub73210-52501

main73210-52501-C2iNCP91..3D..RS200903-201107

BLACK,TRIM18,TRIM = FB**

main73210-52501-C2iNCP91..3D..USA200903-201107

BLACK,TRIM1#

main73210-52501-C3iNCP91..3D..STD..CND200903-201107

BLACK,TRIM1#

main73210-52501-C3iNCP91..3D..USA200903-201107

BLACK,TRIM18,TRIM = FC**

main73210-52530-C3iNCP91..5D..RS200508-200708

BLACK,TRIM18

sub73210-52531

main73210-52530-C3iNCP91..5D..RS;NCP91..5D..USA200808-200902

BLACK,TRIM18,TRIM = FT**,YE**

sub73210-52531

main73210-52530-C3iNCP91..5D..RS200708-200808

BLACK,TRIM1#

sub73210-52531

main73210-52530-C4iNCP91..5D..RS200508-200902

BLACK,TRIM1#

sub73210-52531

main73210-52530-C4iNCP91..5D..STD..CND200808-200902

BLACK,TRIM18,TRIM = FU**,FV**

sub73210-52531

main73210-52531-C3iNCP91..5D..USA200903-201107

BLACK,TRIM18,TRIM = FT**

main73210-52531-C3iNCP91..5D..RS200903-201107

BLACK,TRIM1#

main73210-52531-C4iNCP91..5D..STD..CND200903-201107

BLACK,TRIM1#

main73210-52531-C4iNCP91..5D..USA200903-201107

BLACK,TRIM18,TRIM = FU**

73219STOPPER, TONGUE PLATE

main73219-33010iNCP91200508-200808

BLACK

main73219-33020iNCP91200508-200808

GRAY

main73219-33030iNCP91200508-200808

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-52540-C2iNCP91..3D..RS200508-200708

BLACK,TRIM18

main73220-52540-C2iNCP91..3D..RS;NCP91..3D..USA200808-201107

BLACK,TRIM18,TRIM = FB**,FL**

main73220-52540-C2iNCP91..USA200708-200808

BLACK,TRIM18,TRIM = YF**

main73220-52540-C2iNCP91..3D..RS200708-200808

BLACK,TRIM1#

main73220-52540-C3iNCP91..3D..STD200508-201107

BLACK,TRIM1#

main73220-52540-C3iNCP91..USA200708-200808

BLACK,TRIM18,TRIM = FB**

main73220-52540-C3iNCP91..3D..STD..CND200808-201107

BLACK,TRIM18,TRIM = FC**,FD**

main73220-52560-C3iNCP91..5D..RS;NCP91..5D..USA200808-201107

BLACK,TRIM18,TRIM = FT**,YE**

main73220-52560-C3iNCP91..5D..RS200708-200808

BLACK,TRIM1#

main73220-52560-C3iNCP91..5D..RS200508-200708

BLACK,TRIM18

main73220-52560-C4iNCP91..5D..RS200508-201107

BLACK,TRIM1#

main73220-52560-C4iNCP91..5D..RS;NCP91..5D..USA200808-201107

BLACK,TRIM18,TRIM = FU**,FV**

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-52480-B0iNCP91200508-201108

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-52420-B0iNCP91200508-201108

DK.GRAY,TRIM1#

9010511053

main90105-11053

9090119040

main90901-19040

9155281022

main91552-81022

9155380612

main91553-80612

12 parts on this diagram · 3 diagrams in section
