Toyota YARIS — REFLEX REFLECTOR

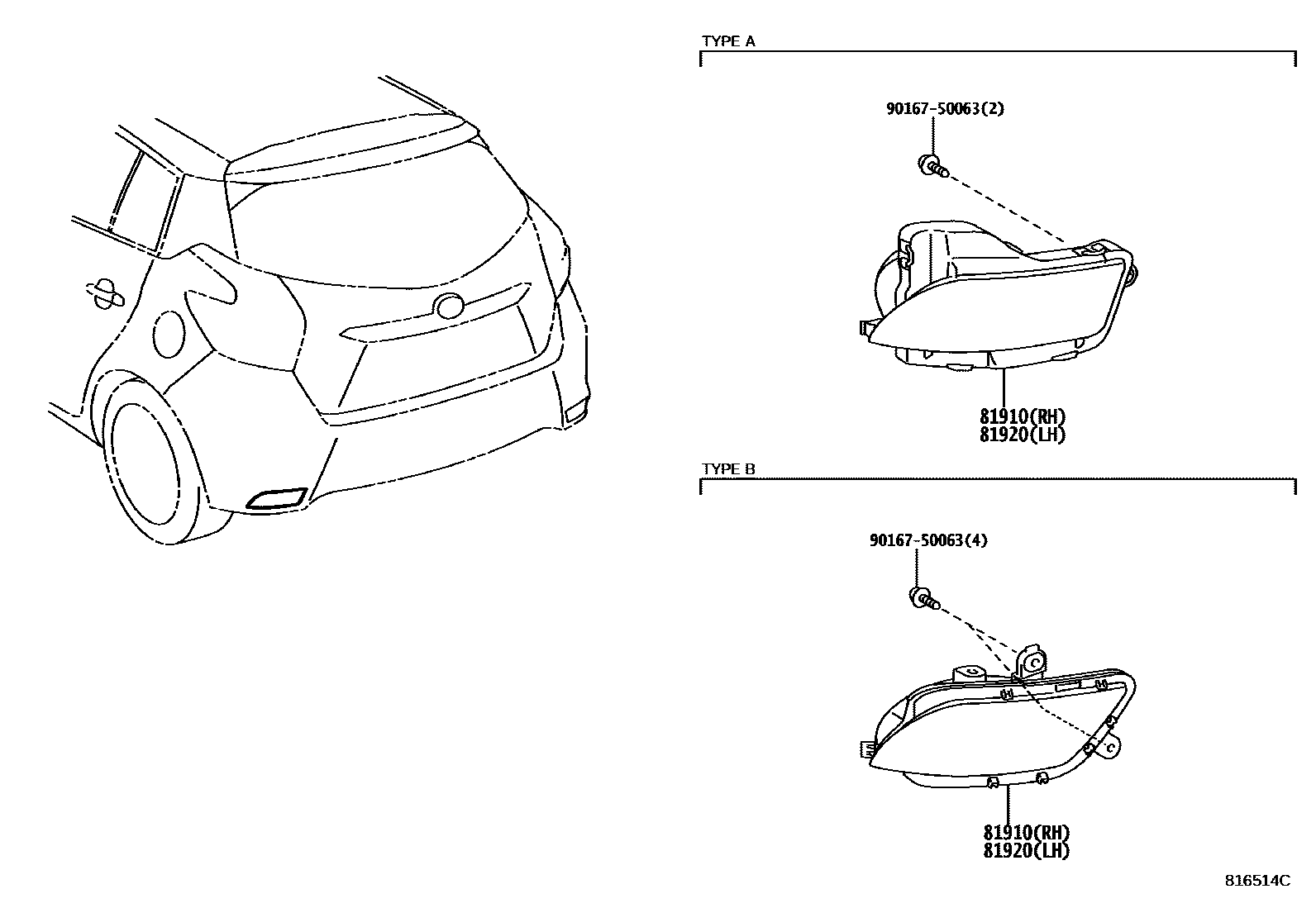

Parts diagram
81910REFLECTOR ASSY, REFLEX, RH
main81480-0D040i201709-202108
TYPE B:REFER ILLUST.
main81480-0D060i201802-202108
TYPE B:REFER ILLUST.
main81580-0D120i201310-201708
TYPE A:REFER ILLUST.
main81580-0D200i201403-201712
TYPE A:REFER ILLUST.
81920REFLECTOR ASSY, REFLEX, LH
main81490-0D040i201709-202302
TYPE B:REFER ILLUST.
main81490-0D060i201802
TYPE B:REFER ILLUST.
main81590-0D120i201310-201708
TYPE A:REFER ILLUST.
main81590-0D170i201403-201712
TYPE A:REFER ILLUST.
9016750063
main90167-50063

3 parts on this diagram · 1 diagram in section

REFLEX REFLECTOR for Toyota YARIS

This section contains 3 genuine Toyota parts for the REFLEX REFLECTOR system of the Toyota YARIS. Key components include: REFLECTOR ASSY, REFLEX, RH, REFLECTOR ASSY, REFLEX, LH.
