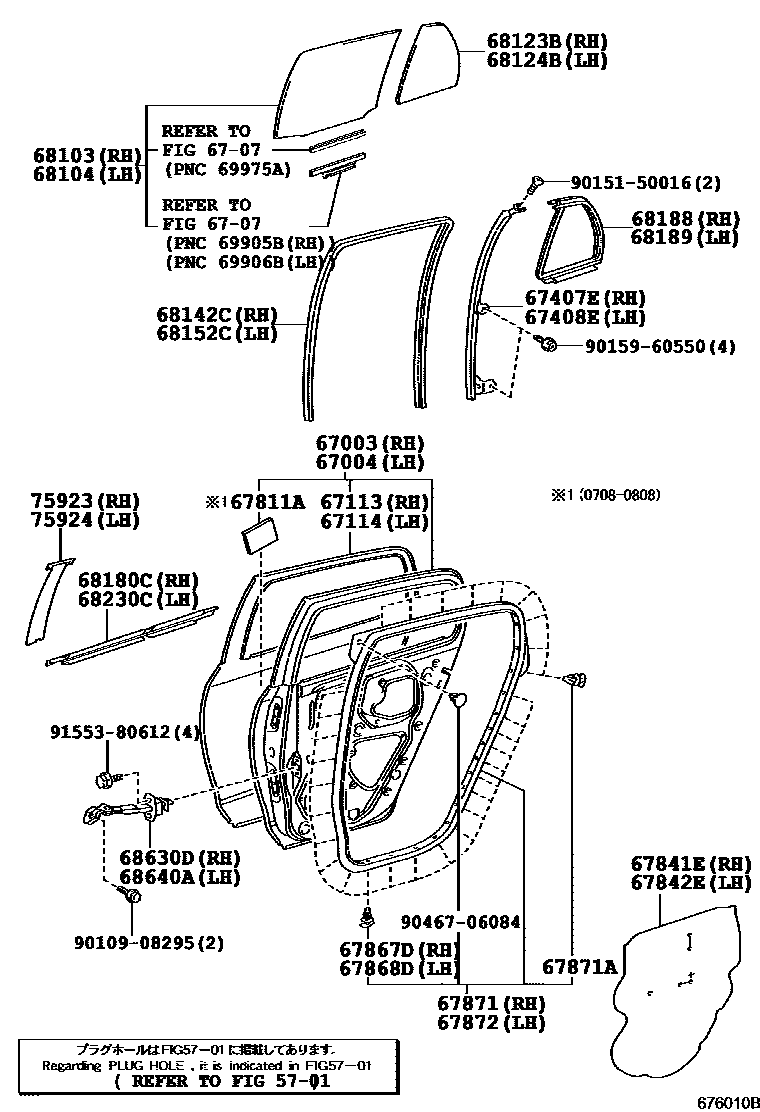

Toyota YARIS — REAR DOOR PANEL & GLASS
5701
6707
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67811APAD, REAR DOOR SILENCER
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
LH,BLUE
RH,PINK
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*UVCT,T=3.1,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*UVCT,T=3.1,GREEN
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*UVCT,T=3.1,GREEN
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*UVCT,T=3.1,GREEN
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75923TAPE, BLACK OUT, NO.2 RH
75924TAPE, BLACK OUT, NO.2 LH
9010908295
main90109-08295
9015150016
main90151-50016
9015960550
main90159-60550
9046706084
main90467-06084
9155380612
main91553-80612
35 parts on this diagram · 2 diagrams in section
