Toyota YARIS — QUARTER WINDOW

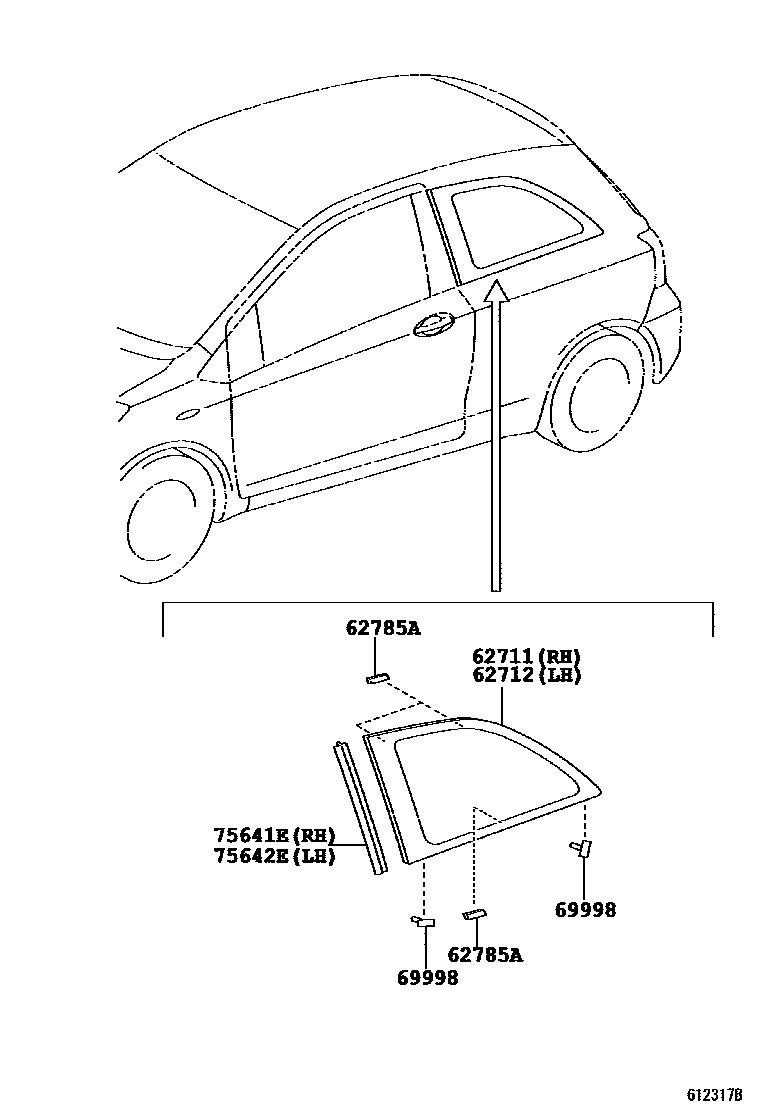

Parts diagram

62711GLASS, QUARTER WINDOW, RH

main62711-52300i200508-200808

*UVCT,T=3.1,GREEN

62712GLASS, QUARTER WINDOW, LH

main62712-52290i200508-200808

*UVCT,T=3.1,GREEN

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030i200508-200808

69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1

main69998-52030i200508-200808

75641EMOULDING, QUARTER WINDOW, RH

main75641-52040i200508-200808

75642EMOULDING, QUARTER WINDOW, LH

main75641-52040i200508-200808

6 parts on this diagram · 1 diagram in section
