Toyota YARIS — PARTIAL ENGINE ASSEMBLY

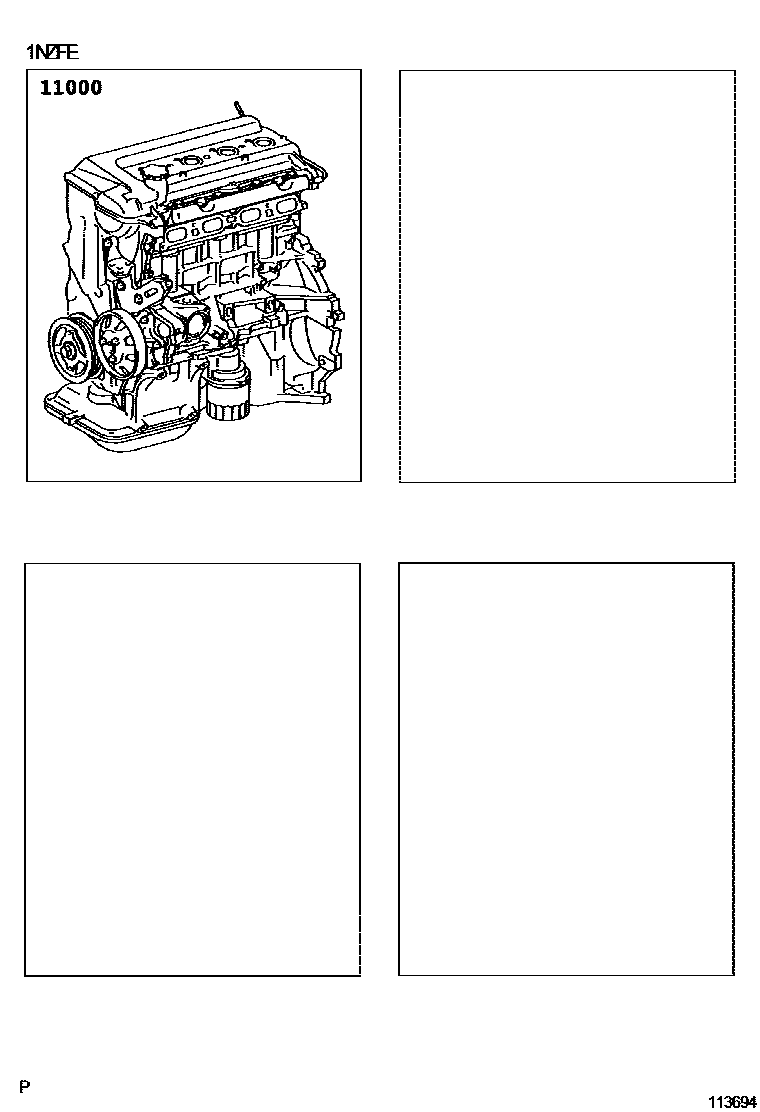

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-21860i200508-200708

main19000-21C10i200710-200711

main19000-21C11i200708-200710

1 parts on this diagram · 1 diagram in section
