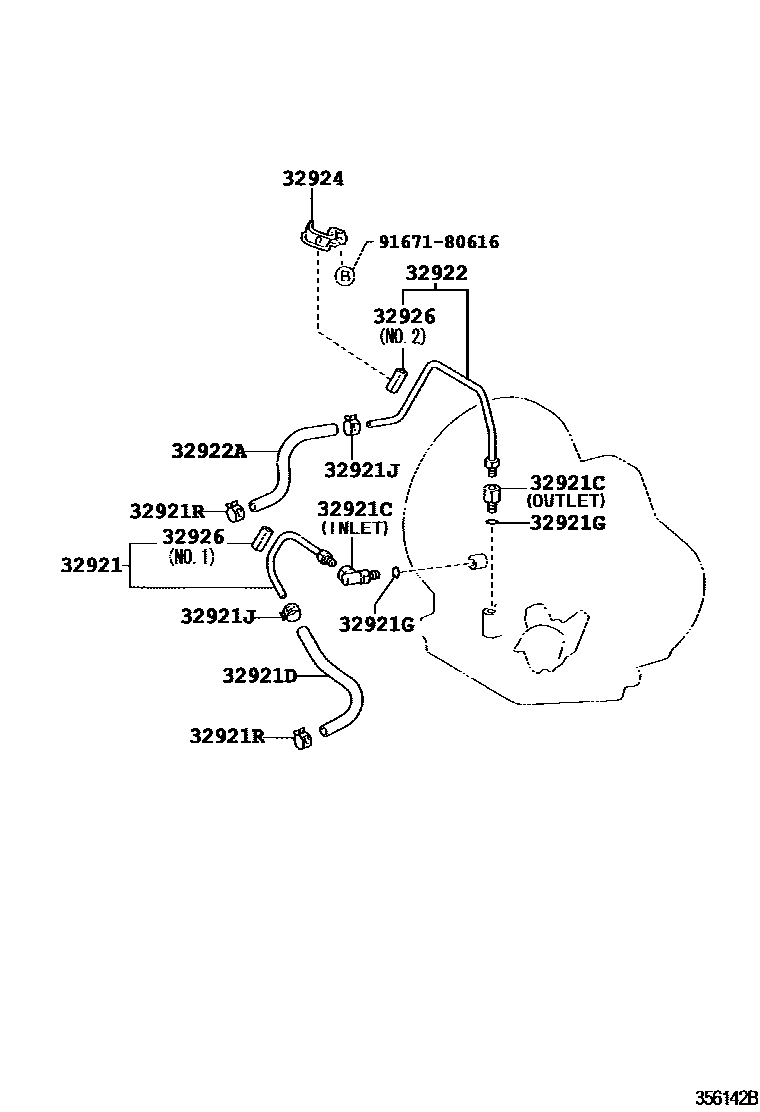

Toyota YARIS — OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-52060iNCP91..4FC200508-201107

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iNCP91..4FC200508-200808

OUTLET

main90407-14003iNCP91..4FC200508-200808

INLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-15046iNCP91..4FC200508-201107

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200808

32921JCLIP(FOR OIL COOLER HOSE)

main96135-51300iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-201107

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main96135-51300iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200703

main96137-41501iNCP91..4FC..CND;NCP91..3D..4FC..USA200703-201107

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-52060iNCP91..4FC200508-201107

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15044iNCP91..4FC200508-201107

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-52010iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200608

main32924-52030iNCP91..4FC200609-201107

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010iNCP91..4FC200508-201107

L=30,ID=8,NO.1

main32926-10010iNCP91..4FC..CND;NCP91..3D..4FC..USA200508-200706

L=30,ID=8,NO.2

main32926-22010iNCP91..4FC200707-201107

L=35,ID=8,NO.2

9167180616

main91671-80616

11 parts on this diagram · 1 diagram in section
