Toyota YARIS — MOUNTING

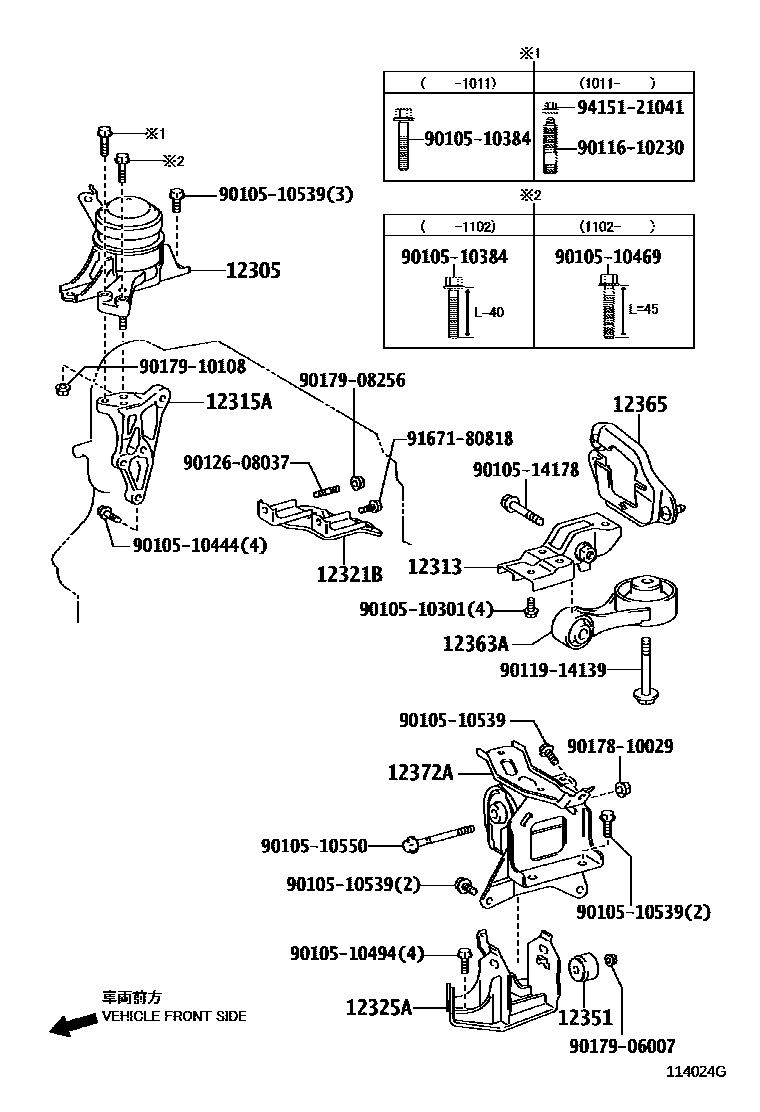

Parts diagram

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-21200i200602-200808

main12305-21220i200602-200808

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-21040i200602-200808

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-21041i200602-200808

main12315-21042i200908-201009

main12315-21043i201009-201111

main12315-21044i201111

12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-52020i200602-200808

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-21190i200602-200808

main12325-21230i200808

12351DAMPER, ENGINE MOUNTING

main12351-21090i200808

12363AROD, ENGINE MOVING CONTROL

main12363-21040i200808

main12363-21060i200602-200808

12365COVER, ENGINE MOVING CONTROL ROD

main12365-40010i200602-200808

COLD AREA SPEC

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-21130i200602-200808

main12372-21131i200902

main12372-21150i200602-200808

9010510301

main90105-10301

9010510384

main90105-10384

9010510444

main90105-10444

9010510469

main90105-10469

9010510494

main90105-10494

9010510539

main90105-10539

9010510550

main90105-10550

9010514178

main90105-14178

9011610230

main90116-10230

9011914139

main90119-14139

9012608037

main90126-08037

9017810029

main90178-10029

9017906007

main90179-06007

9017908256

main90179-08256

9017910108

main90179-10108

9167180818

main91671-80818

9415121041

main94151-21041

26 parts on this diagram · 2 diagrams in section

MOUNTING for Toyota YARIS

This section contains 27 genuine Toyota parts for the MOUNTING system of the Toyota YARIS. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), INSULATOR SUB-ASSY, DRIVE SHAFT HEAT, BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE).
