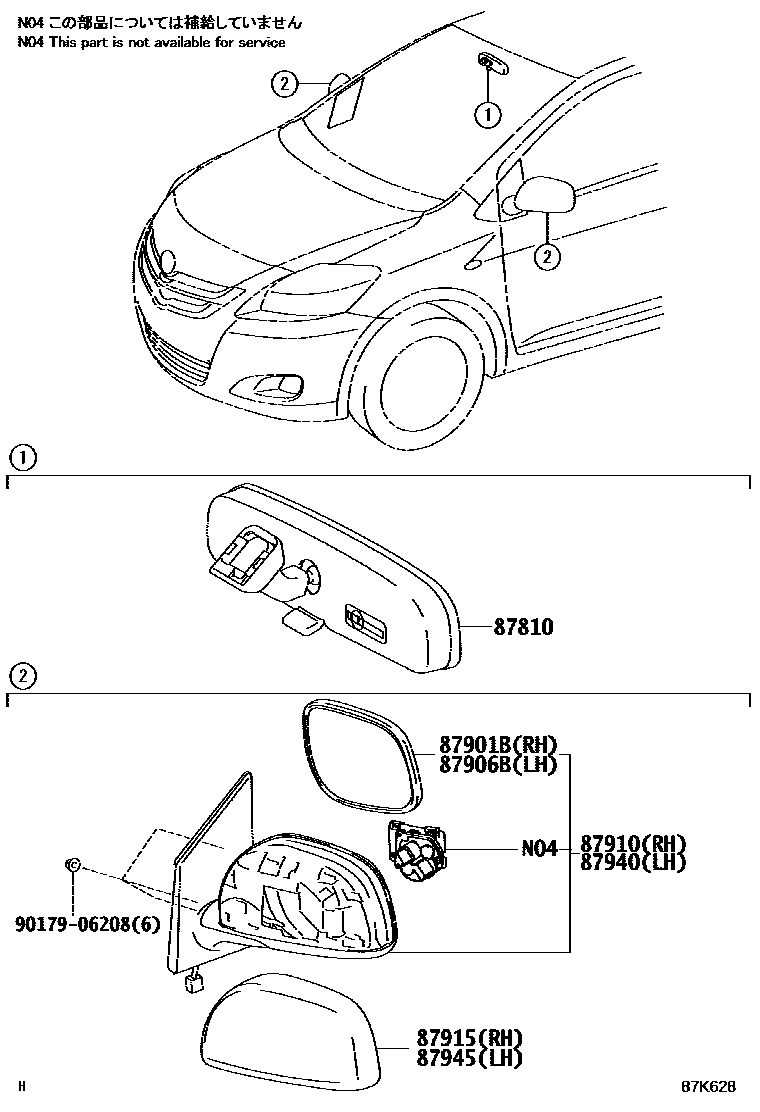

Toyota YARIS — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
POWER PACKAGE
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
POWER PACKAGE
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED); NO PAINT REQ.,POWER PACKAGE
NO PAINT REQ.,POWER PACKAGE
87915COVER, OUTER MIRROR, RH
NO PAINT REQ.
POWER PACKAGE,WHITE,068; WHITE,068
POWER PACKAGE,SILVER M.M.,1E7; SILVER M.M.,1E7
DK.GRAY MC.,1E0; POWER PACKAGE,DK.GRAY MC.,1E0
BLACK MC.,209; POWER PACKAGE,BLACK MC.,209
POWER PACKAGE,RED M.M.,3R3; RED M.M.,3R3
LT.OLIVE ME.,6U4; POWER PACKAGE,LT.OLIVE ME.,6U4
POWER PACKAGE,TURQUOISE ME.,777; TURQUOISE ME.,777
GRAYISH BLUE ME.,8R3; POWER PACKAGE,GRAYISH BLUE ME.,8R3
DK.BLUE MC.,8S6; POWER PACKAGE,DK.BLUE MC.,8S6
POWER PACKAGE,WHITE,068; WHITE,068
SUPER WHITE 2,040
DK.GRAY MC.,1E0
POWER PACKAGE,SILVER M.M.,1E7; SILVER M.M.,1E7
SILVER ME.,1F7
BLACK MC.,209; POWER PACKAGE,BLACK MC.,209
RED M.M.,3R3
LT.OLIVE ME.,6U4; POWER PACKAGE,LT.OLIVE ME.,6U4
POWER PACKAGE,TURQUOISE ME.,777; TURQUOISE ME.,777
GRAYISH BLUE ME.,8R3
DK.BLUE MC.,8S6; POWER PACKAGE,DK.BLUE MC.,8S6
BLUE ME.,8N0
BLUE ME.,8T7
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED); NO PAINT REQ.,POWER PACKAGE
NO PAINT REQ.,POWER PACKAGE
87945COVER, OUTER MIRROR, LH
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-DOOR LEVER 2
POWER PACKAGE,WHITE,068; WHITE,068
POWER PACKAGE,SILVER M.M.,1E7; SILVER M.M.,1E7
DK.GRAY MC.,1E0; POWER PACKAGE,DK.GRAY MC.,1E0
BLACK MC.,209; POWER PACKAGE,BLACK MC.,209
POWER PACKAGE,RED M.M.,3R3; RED M.M.,3R3
LT.OLIVE ME.,6U4; POWER PACKAGE,LT.OLIVE ME.,6U4
POWER PACKAGE,TURQUOISE ME.,777; TURQUOISE ME.,777
GRAYISH BLUE ME.,8R3; POWER PACKAGE,GRAYISH BLUE ME.,8R3
DK.BLUE MC.,8S6; POWER PACKAGE,DK.BLUE MC.,8S6
POWER PACKAGE,WHITE,068; WHITE,068
SUPER WHITE 2,040
DK.GRAY MC.,1E0
POWER PACKAGE,SILVER M.M.,1E7; SILVER M.M.,1E7
SILVER ME.,1F7
BLACK MC.,209; POWER PACKAGE,BLACK MC.,209
POWER PACKAGE,RED M.M.,3R3; RED M.M.,3R3
LT.OLIVE ME.,6U4; POWER PACKAGE,LT.OLIVE ME.,6U4
POWER PACKAGE,TURQUOISE ME.,777; TURQUOISE ME.,777
GRAYISH BLUE ME.,8R3; POWER PACKAGE,GRAYISH BLUE ME.,8R3
DK.BLUE MC.,8S6; POWER PACKAGE,DK.BLUE MC.,8S6
BLUE ME.,8N0
BLUE ME.,8T7
9017906208
main90179-06208
8 parts on this diagram · 1 diagram in section
MIRROR for Toyota YARIS
This section contains 8 genuine Toyota parts for the MIRROR system of the Toyota YARIS. Key components include: MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
