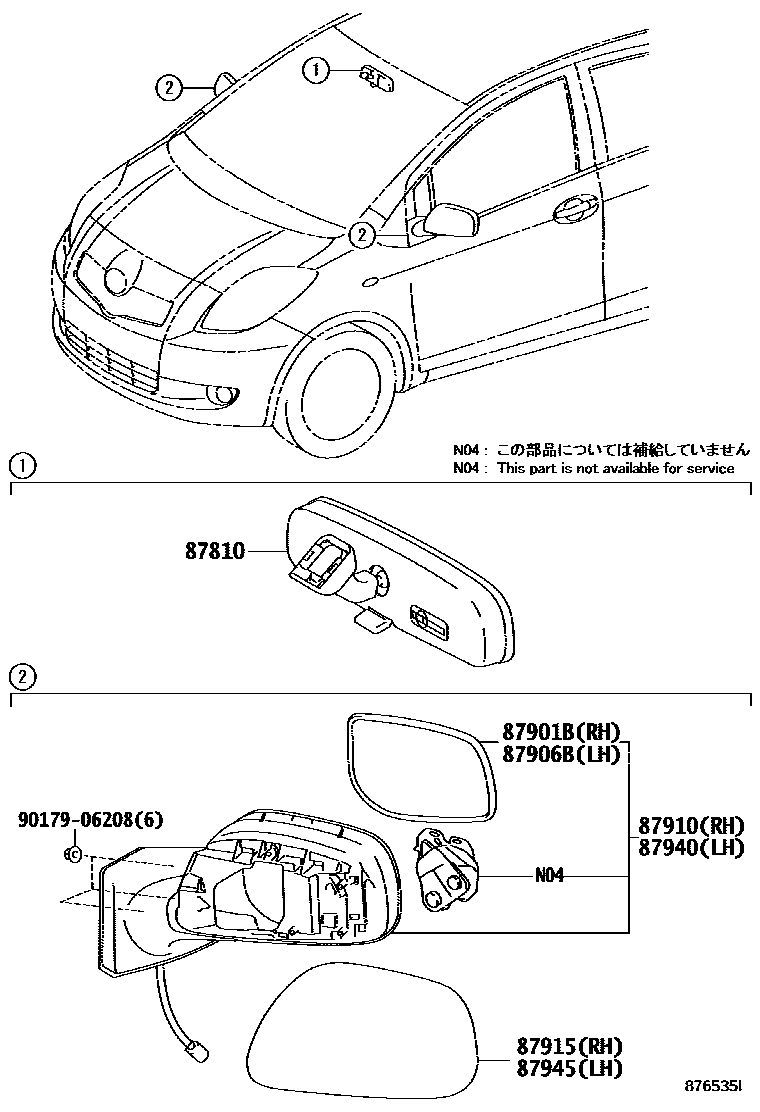

Toyota YARIS — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
OUTSIDE REAR VIEW MIRROR-COLORED & HEATER(W/TIMER)
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
OUTSIDE REAR VIEW MIRROR-COLORED & HEATER(W/TIMER)
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-RETRACTABLE TYPE
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & HEATER(W/TIMER)
87915COVER, OUTER MIRROR, RH
NO PAINT REQ.
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE,068; WHITE,068
main87915-52060-A3iNCP91..5D..STD;NCP91..3D..USA;NCP91..3D..5F..RS; NCP91..CND; NCP91..USA201008-201107
OUTSIDE REAR VIEW MIRROR-COLORED & HEATER(W/TIMER),SUPER WHITE 2,040; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040; SUPER WHITE 2,040
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER M.M.,1E7; SILVER M.M.,1E7
MEDIUM SILVER ME.,1F8; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),MEDIUM SILVER ME.,1F8
main87915-52060-C0iNCP91..5D..STD;NCP91..3D..USA;NCP91..3D..5F..RS; NCP91..CND; NCP91..USA200808-201107
BLACK MC.,209; OUTSIDE REAR VIEW MIRROR-COLORED & HEATER(W/TIMER),BLACK MC.,209; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209
main87915-52060-D0iNCP91..5D..STD;NCP91..3D..USA;NCP91..3D..5F..RS; NCP91..CND; NCP91..USA200808-201107
OUTSIDE REAR VIEW MIRROR-COLORED & HEATER(W/TIMER),SUPER RED 5,3P0; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER RED 5,3P0; SUPER RED 5,3P0
ORANGE M.M.,4S9; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),ORANGE M.M.,4S9
DK.GREEN M.M.,6S3; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.GREEN M.M.,6S3
DK.BLUE M.M.,8P4; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE M.M.,8P4
main87915-52060-J2iNCP91..5D..STD;NCP91..3D..USA;NCP91..3D..5F..RS; NCP91..CND; NCP91..USA200808-201107
BLUE M.M.,8T0; OUTSIDE REAR VIEW MIRROR-COLORED & HEATER(W/TIMER),BLUE M.M.,8T0; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE M.M.,8T0
GRAYISH BLUE M.M.,8T1; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAYISH BLUE M.M.,8T1
OUTSIDE REAR VIEW MIRROR-COLORED & HEATER(W/TIMER),GRAY ME.,1G3; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAY ME.,1G3
DARK RED MC.,3Q8; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DARK RED MC.,3Q8
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),YELLOW,5A6; YELLOW,5A6
OUTSIDE REAR VIEW MIRROR-COLORED & HEATER(W/TIMER),SILVER ME.,1F7; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
OUTSIDE REAR VIEW MIRROR-COLORED & HEATER(W/TIMER),WHITE PEARL CS.,070; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE PEARL CS.,070
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-RETRACTABLE TYPE
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & HEATER(W/TIMER)
87945COVER, OUTER MIRROR, LH
NO PAINT REQ.
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE,068; WHITE,068
main87945-52060-A3iNCP91..5D..STD;NCP91..3D..USA;NCP91..3D..5F..RS; NCP91..CND; NCP91..USA201008-201107
OUTSIDE REAR VIEW MIRROR-COLORED & HEATER(W/TIMER),SUPER WHITE 2,040; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040; SUPER WHITE 2,040
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER M.M.,1E7; SILVER M.M.,1E7
MEDIUM SILVER ME.,1F8; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),MEDIUM SILVER ME.,1F8
BLACK MC.,209; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209
main87945-52060-D0iNCP91..5D..STD;NCP91..3D..USA;NCP91..3D..5F..RS; NCP91..CND; NCP91..USA200808-201107
OUTSIDE REAR VIEW MIRROR-COLORED & HEATER(W/TIMER),SUPER RED 5,3P0; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER RED 5,3P0; SUPER RED 5,3P0
ORANGE M.M.,4S9; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),ORANGE M.M.,4S9
DK.GREEN M.M.,6S3; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.GREEN M.M.,6S3
DK.BLUE M.M.,8P4; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE M.M.,8P4
main87945-52060-J2iNCP91..5D..STD;NCP91..3D..USA;NCP91..3D..5F..RS; NCP91..CND; NCP91..USA200808-201107
BLUE M.M.,8T0; OUTSIDE REAR VIEW MIRROR-COLORED & HEATER(W/TIMER),BLUE M.M.,8T0; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE M.M.,8T0
GRAYISH BLUE M.M.,8T1; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAYISH BLUE M.M.,8T1
OUTSIDE REAR VIEW MIRROR-COLORED & HEATER(W/TIMER),GRAY ME.,1G3; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAY ME.,1G3
DARK RED MC.,3Q8; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DARK RED MC.,3Q8
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),YELLOW,5A6; YELLOW,5A6
OUTSIDE REAR VIEW MIRROR-COLORED & HEATER(W/TIMER),SILVER ME.,1F7; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
OUTSIDE REAR VIEW MIRROR-COLORED & HEATER(W/TIMER),WHITE PEARL CS.,070; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE PEARL CS.,070
9017906208
main90179-06208
8 parts on this diagram · 1 diagram in section
MIRROR for Toyota YARIS
This section contains 8 genuine Toyota parts for the MIRROR system of the Toyota YARIS. Key components include: MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
