Toyota YARIS — METER

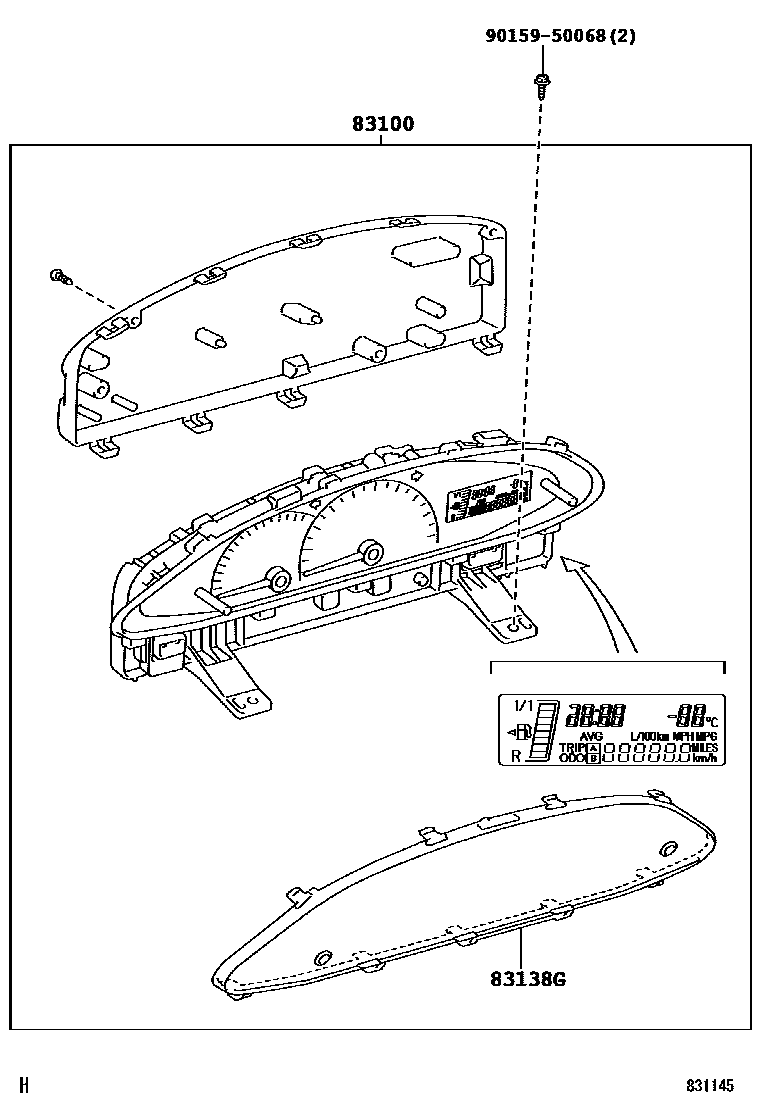

Parts diagram

83100METER ASSY, COMBINATION

main83800-52B80i200508-200708

main83800-52C70i200508-200708

main83800-52C90i200508-200708

main83800-52L30i200908-201107

main83800-52N61i200808-200908

main83800-52N80i200708-200808

main83800-52N81i200808-200908

main83800-52N90i200708-200808

main83800-52P00i200708-200808

main83800-52X00i200908-201107

83138GGLASS, COMBINATION METER

main83852-52A00i200508-201107

9015950068

main90159-50068

3 parts on this diagram · 3 diagrams in section

METER for Toyota YARIS

This section contains 4 genuine Toyota parts for the METER system of the Toyota YARIS. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER, CLOCK ASSY.
