Toyota YARIS — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01240×4i200508-200708

SK16R11

19500DCOIL, IGNITION, NO.1

main90919-02240×4i200508-200708

main90919-02265×4i201010-201107

9155180625

main91551-80625

3 parts on this diagram · 1 diagram in section

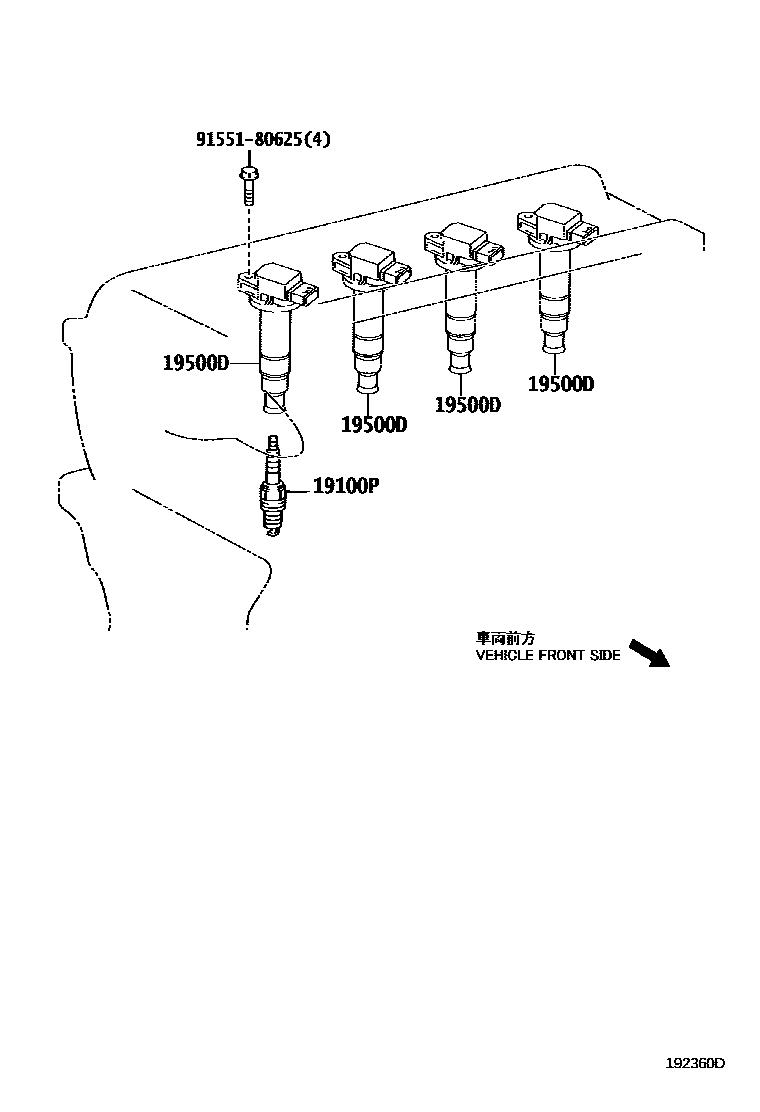

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota YARIS

This section contains 3 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota YARIS. Key components include: PLUG, SPARK, COIL, IGNITION, NO.1.
