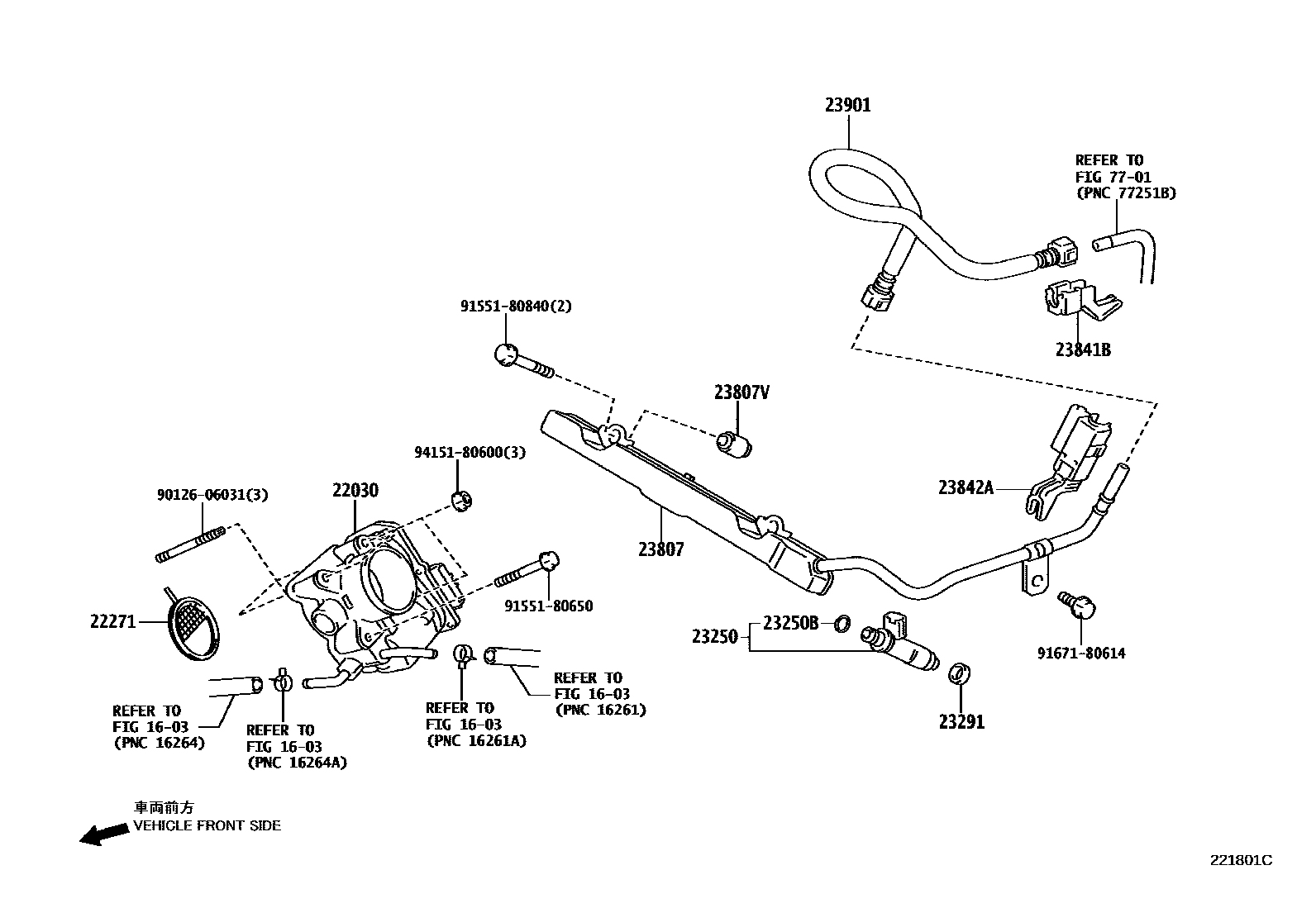

Toyota YARIS — FUEL INJECTION SYSTEM

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21030i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201107

22271GASKET, THROTTLE BODY

main22271-21060i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201107

23250INJECTOR ASSY, FUEL

main23209-21040i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201107

sub23209-21120

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-200607

main90301-07037i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200607-201107

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-201107

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21050i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-200612

sub23807-21051

main23807-21051i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200612-201107

sub23807-21090

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010i1NZFE..NCP91200508-201107

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1NZFE..NCP91200607-201108

main23841-28010i1NZFE..NCP91200508-200606

sub23841-21050

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-21040i1NZFE..NCP91200906-201107

main23842-21010i1NZFE..NCP91..CND;1NZFE..NCP91..3D..USA200508-200906

23901TUBE SUB-ASSY, FUEL

main23901-21120i1NZFE..NCP91200508-201108

7701

9012606031

main90126-06031

9155180650

main91551-80650

9155180840

main91551-80840

9167180614

main91671-80614

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
