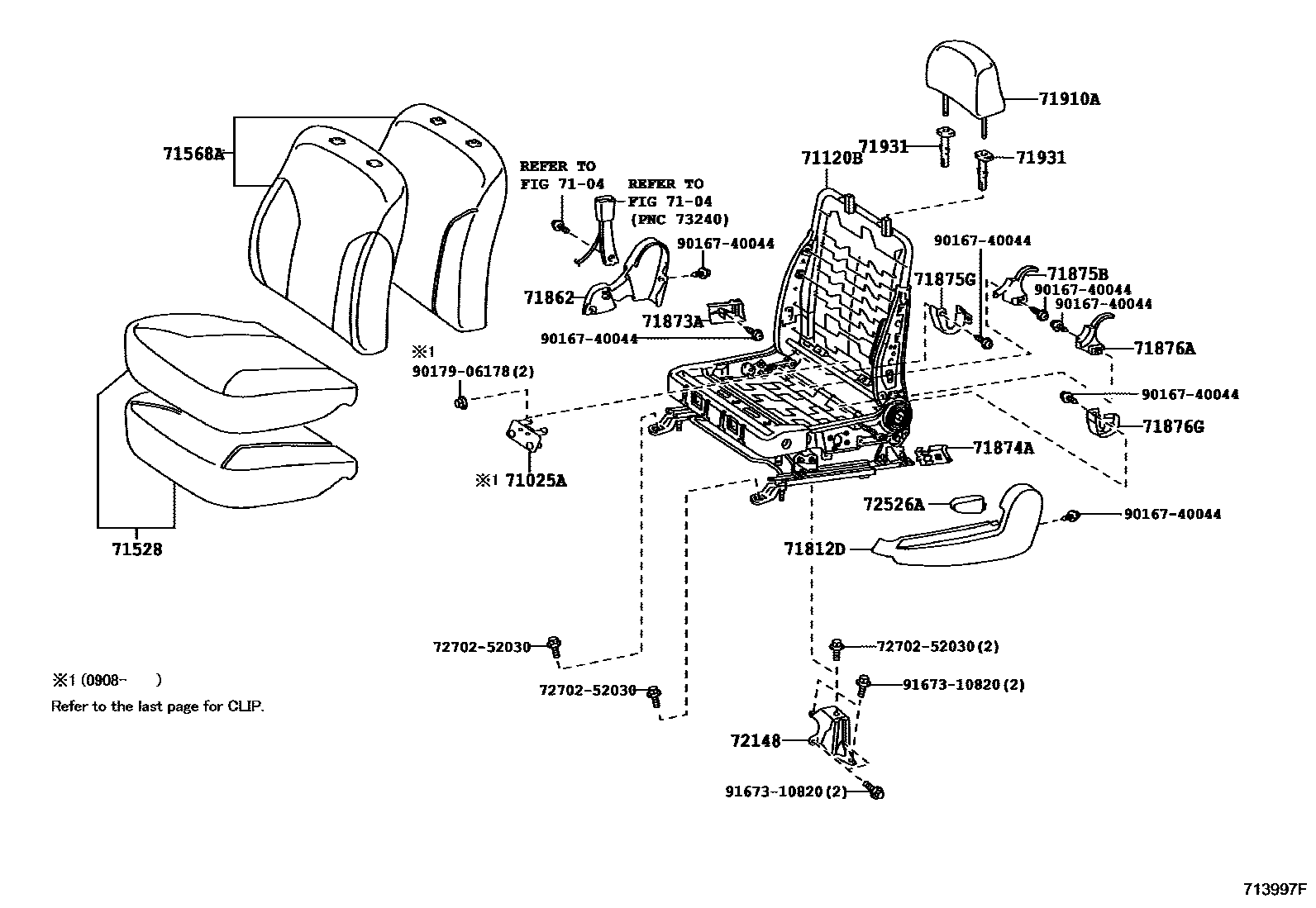

Toyota YARIS — FRONT SEAT & SEAT TRACK

71025ABRACKET SUB-ASSY, FRONT SEATBACK

main71025-52010i200908-201107

7104

71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH

main71120-52200i200508-200908

main71120-52201i200908-201001

sub71120-52202

main71120-52202i201002-201108

main71120-52340i200808-200908

SPORT PACKAGE&REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN

main71120-52340i200508-200708

main71120-52340i200708-200808

SPORTS PACKAGE

main71120-52340i200708-200808

SPORTS PACKAGE&REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN

main71120-52340i200708-200808

SPORTS PACKAGE&REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main71120-52340i200708-200808

SPORTS PACKAGE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main71120-52340i200808-200908

SPORT PACKAGE

main71120-52340i200808-200908

SPORT PACKAGE&REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE)

main71120-52340i200808-200908

SPORT PACKAGE&SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE)

main71120-52341i200908-201001

SPORT PACKAGE&REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE)

sub71120-52342

main71120-52341i200908-201001

SPORT PACKAGE&SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE)

sub71120-52342

main71120-52341i200908-201001

SPORT PACKAGE

sub71120-52342

main71120-52341i200908-201001

SPORT PACKAGE&REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN

sub71120-52342

main71120-52341i200908-201002

sub71120-52342

main71120-52342i201002-201108

SPORT PACKAGE

main71120-52342i201002-201108

SPORT PACKAGE&REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN

71528PAD, FRONT SEAT CUSHION W/COVER, LH

main71528-52E50-C0i200508-200808

BLACK,TRIM1#

sub71528-52E60

main71528-52L40-B1i200808-201002

SPORT PACKAGE&SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE),DARK GRAY,TRIM1#

sub71528-52L50

main71528-52L40-B1i200808-201002

DARK GRAY,TRIM1#

sub71528-52L50

main71528-52L40-B1i200808-201002

SPORT PACKAGE&REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE),DARK GRAY,TRIM1#

sub71528-52L50

main71528-52L50-B1i201002-201107

DARK GRAY,TRIM1#

main71528-52L60-B2i200808-201002

DARK GRAY,TRIM1#

sub71528-52L61

main71528-52L70-B2i200808-201107

DARK GRAY,TRIM1#

sub71528-52L71

main71528-5C600-C0i200508-200708

BLACK,TRIM1#

sub71528-5C600

sub71528-52A90

main71528-5C600-C2i200708-200808

SPORTS PACKAGE,BLACK,TRIM1#

sub71528-5C600

sub71528-52A90

main71528-5C600-C2i200708-200808

SPORTS PACKAGE&REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN,BLACK,TRIM1#

sub71528-5C600

sub71528-52A90

main71528-5C600-C2i200708-200808

BLACK,TRIM1#

sub71528-5C600

sub71528-52A90

71568APAD, FRONT SEATBACK W/COVER, LH

main71558-52B50-C1i200508-200708

BLACK,TRIM1#

sub71558-52B50

main71558-52B50-C2i200708-200808

SPORTS PACKAGE,BLACK,TRIM1#

sub71558-52B50

main71558-52B50-C2i200708-200808

SPORTS PACKAGE&REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN,BLACK,TRIM1#

sub71558-52B50

main71558-52B50-C2i200708-200808

REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN,BLACK,TRIM1#

sub71558-52B50

main71558-52B50-C2i200708-200808

BLACK,TRIM1#,*104 TYPE C:REF ILL.

sub71558-52B50

main71558-52B50-C2i200708-200808

BLACK,TRIM1#

sub71558-52B50

main71558-52F20-C1i200508-200702

BLACK,TRIM1#,*104 TYPE B:REF ILL.

sub71558-52F20

sub71558-52F22

main71558-52F20-C1i200508-200702

REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN,BLACK,TRIM1#

sub71558-52F20

sub71558-52F22

main71558-52F20-C1i200508-200708

BLACK,TRIM1#

sub71558-52F20

sub71558-52F22

main71558-52F20-C2i200708-200808

BLACK,TRIM1#

sub71558-52F20

sub71558-52F22

main71558-52N60-B1i200808-200908

DARK GRAY,TRIM1#

main71558-52N60-B1i200808-200908

SPORT PACKAGE&REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE),DARK GRAY,TRIM1#

main71558-52N60-B1i200808-200908

SPORT PACKAGE&SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE),DARK GRAY,TRIM1#

main71558-52N61-B1i200908-201002

SPORT PACKAGE&REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE),DARK GRAY,TRIM1#

main71558-52N61-B1i200908-201002

SPORT PACKAGE&SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE),DARK GRAY,TRIM1#

main71558-52N61-B1i200908-201002

DARK GRAY,TRIM1#

main71558-52P20-B2i200808-200908

SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE),DARK GRAY,TRIM1#

sub71558-52P22

main71558-52P20-B2i200808-200908

DARK GRAY,TRIM1#

sub71558-52P22

main71558-52P20-B2i200808-200908

REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE),DARK GRAY,TRIM1#

sub71558-52P22

main71558-52P21-B2i200908-201002

DARK GRAY,TRIM1#

sub71558-52Y90

main71568-52K70-B2i200808-200908

SRS AIR BAG-DRIVER(DUAL)+PASS(ADVANCE)+SIDE+CURTAIN,DARK GRAY,TRIM1#

sub71568-52K72

main71568-52K70-B2i200808-200908

DARK GRAY,TRIM1#

sub71568-52K72

main71568-52K70-B2i200808-200908

REAR SEAT-6:4 FOLDING,RECLINING&SRS AIR BAG-DRIVER(DUAL)+PASS(ADVANCE)+SIDE+CURTAIN,DARK GRAY,TRIM1#

sub71568-52K72

main71568-52K71-B2i200908-201107

DARK GRAY,TRIM1#

sub71568-52S10

main71568-52N80-B0i201002-201107

DARK GRAY,TRIM1#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-52190-B2i200508-201107

DK.GRAY,TRIM1#

main71812-52190-B2i200508-200708

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-52140-B2i200508-201107

DK.GRAY,TRIM1#

sub71862-52140

main71862-52140-B2i200508-200708

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1#

sub71862-52140

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-52080-B0i200508-201107

DK.GRAY,TRIM1#

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-52190-B0i200708-201107

DK.GRAY,TRIM1#

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-52180-B0i200508-201107

DK.GRAY,TRIM1#

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-52070-B0i200508-201107

DK.GRAY,TRIM1#

main71874-52070-B0i200508-200708

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1#

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-52090-B0i200508-201107

DK.GRAY,TRIM1#

sub71875-52090

main71875-52090-B0i200508-200708

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1#

sub71875-52090

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-52170-B0i200508-201107

DK.GRAY,TRIM1#

main71875-52170-B0i200508-200708

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-52090-B0i200508-201107

DK.GRAY,TRIM1#

sub71876-52090

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-52090-B0i200508-201107

DK.GRAY,TRIM1#

sub71876-52090

main71876-52090-B0i200508-200708

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1#

sub71876-52090

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-52160-B0i200508-200708

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1#

main71876-52160-B0i200508-201107

DK.GRAY,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-52510-C0i200508-200708

BLACK,TRIM1#

sub71910-52670

main71910-52520-C0i200708-200808

SPORTS PACKAGE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1#

main71910-52520-C0i200708-200808

SPORTS PACKAGE,BLACK,TRIM1#

main71910-52520-C0i200508-200808

BLACK,TRIM1#

main71910-52520-C0i200708-200808

SPORTS PACKAGE&REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN,BLACK,TRIM1#

main71910-52520-C0i200708-200808

SPORTS PACKAGE&REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,BLACK,TRIM1#

main71910-52660-B0i200808-200908

SPORT PACKAGE&SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE),DARK GRAY,TRIM1#

main71910-52660-B0i200808-200908

DARK GRAY,TRIM1#

main71910-52660-B0i200808-200908

SPORT PACKAGE,DARK GRAY,TRIM1#

main71910-52660-B0i200808-200908

SPORT PACKAGE&REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN,DARK GRAY,TRIM1#

main71910-52660-B0i200808-200908

SPORT PACKAGE&REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN&SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE),DARK GRAY,TRIM1#

main71910-52670-C0i200708-201107

BLACK,TRIM1#

sub71910-52670

main71910-52671-C0i201010-201105

BLACK,TRIM1#

sub71910-52670

main71910-52B90-B0i200908-201107

DARK GRAY,TRIM1#

main71910-52B90-B0i200908-201107

SPORT PACKAGE&REAR SEAT-6:4/SLIDE/RECLINING/FOLD-DOWN,DARK GRAY,TRIM1#

main71910-52B90-B0i200908-201107

SPORT PACKAGE,DARK GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-44020-B0i200705-201107

W(LOCK),DK.GRAY,TRIM1#

sub71930-44020

sub71930-02370

main71930-47010-B2i200508-200704

W(LOCK),DK.GRAY,TRIM1#

sub71930-47010

sub71930-44020

main71931-47010-B2i200508-201107

W/O(LOCK),DK.GRAY,TRIM1#

sub71931-47010

sub71931-42020

72148BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

main72148-52010i200508-200808

sub72148-52060

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-58040-B0i200508-201107

DK.GRAY,TRIM1#

sub72526-58040

main72526-58040-B0i200508-200708

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,DK.GRAY,TRIM1#

sub72526-58040

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030

9016740044

main90167-40044

9017906178

main90179-06178

9167310820

main91673-10820

24 parts on this diagram · 9 diagrams in section
