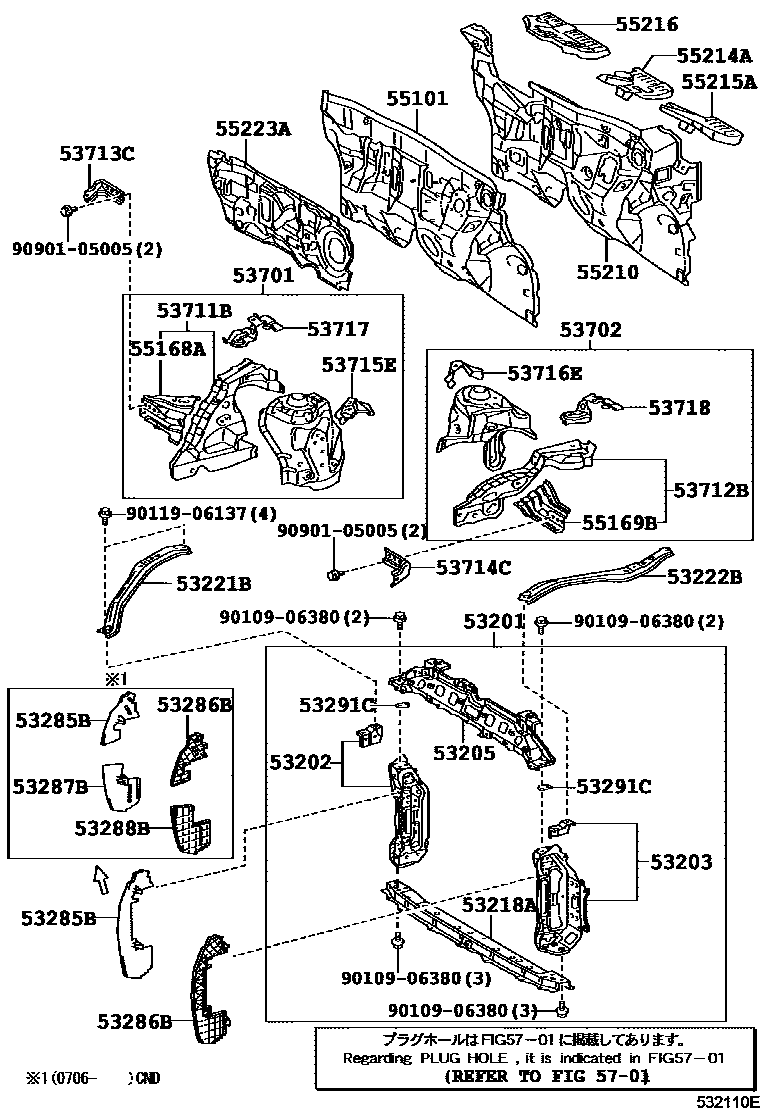

Toyota YARIS — FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-52230iNCP93200602-200808

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-52902iNCP93200602-200808

main53202-52909iNCP93201010

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-52902iNCP93200602-200808

main53203-52907iNCP93201010

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-52100iNCP93200602-200808

53218ASUPPORT, RADIATOR, LOWER

main53028-52070iNCP93200602-200808

53221BBRACE, RADIATOR SUPPORT APRON, RH

main53221-52020iNCP93200602-200808

53222BBRACE, RADIATOR SUPPORT APRON, LH

main53222-52020iNCP93200602-200808

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-52230iNCP93..CND200706-200808

main53285-52240iNCP93..CND200602-200706

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-52170iNCP93..CND200808-201208

main53286-52180iNCP93..CND200602-200706

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-52050iNCP93..CND200808-201208

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-52050iNCP93..CND200706-200808

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-52070×2iNCP93200602-200808

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-52180iNCP93200602-200808

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-52180iNCP93200808-201607

53711BAPRON, FRONT FENDER, FRONT RH

main53707-52030iNCP93200602-200808

main53707-52060iNCP93201108

53712BAPRON, FRONT FENDER, FRONT LH

main53708-52030iNCP93200602-200808

main53708-52060iNCP93201108

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-52030iNCP93200602-200808

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-52040iNCP93200602-200808

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-52030iNCP93200808

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-52030iNCP93200602-200808

53717PLATE, FENDER APRON, RH

main53717-52100iNCP93200602-200808

53718PLATE, FENDER APRON, LH

main53718-52100iNCP93200602-200808

55101PANEL SUB-ASSY, DASH

main55101-52490iNCP93..MTM200602-200808

main55101-52500iNCP93..ATM200602-200808

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-52130iNCP93200602-200808

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-52130iNCP93200602-200808

55210INSULATOR ASSY, DASH PANEL

main55210-52230iNCP93200602-200808

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-52140iNCP93200602-200808

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-52110iNCP93200602-200808

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-52020iNCP93200602-200606

main55216-52021iNCP93200607-200808

55223AINSULATOR, DASH PANEL, OUTER

main55223-52090iNCP93200602-200808

main55223-52110iNCP93200808

5701

9010906380

main90109-06380

9011906137

main90119-06137

9090105005

main90901-05005

34 parts on this diagram · 1 diagram in section
