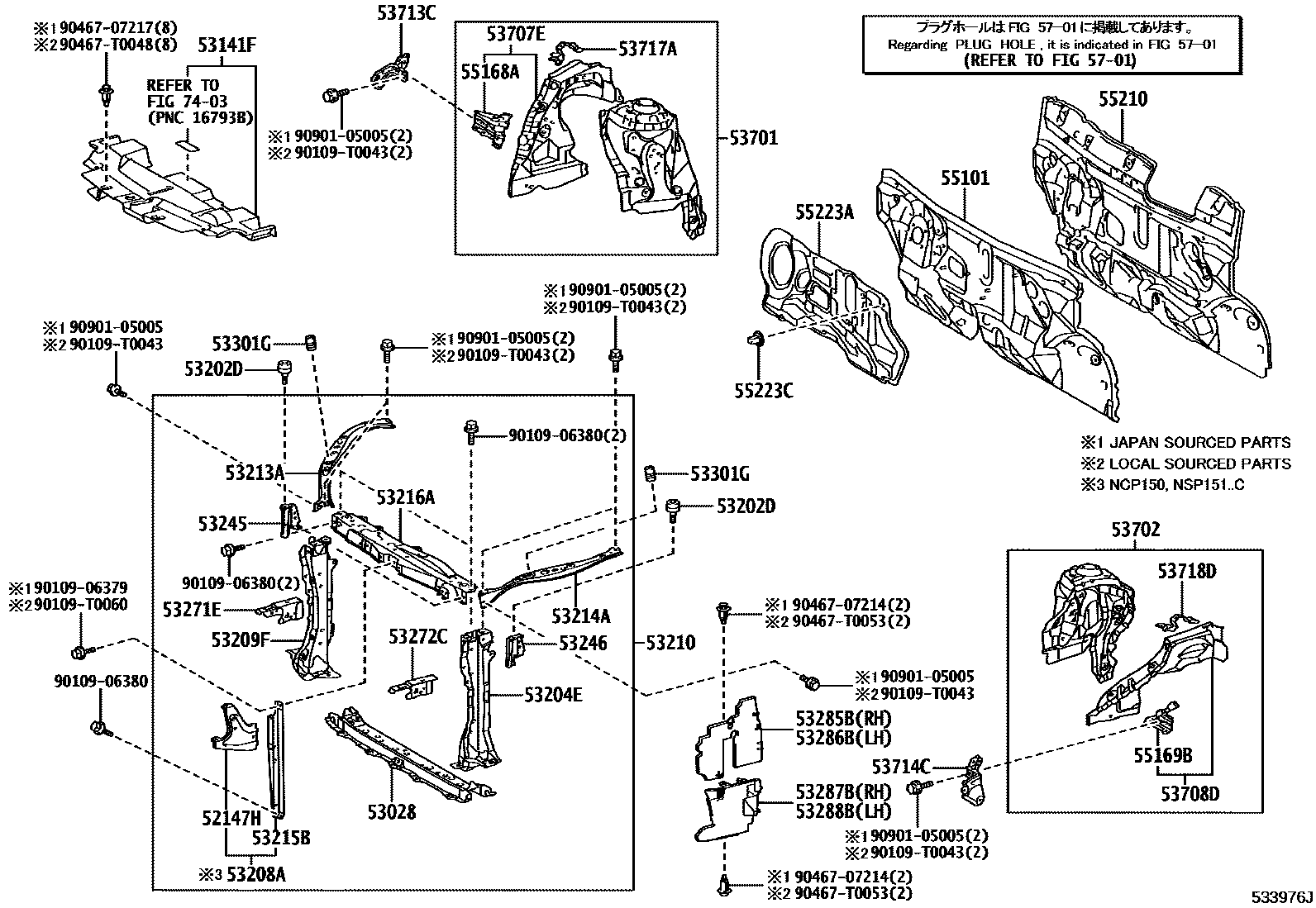

Toyota YARIS — FRONT FENDER APRON & DASH PANEL

0001 1 0004 1 0006 1 0010 1 0012 1

52147HBRACKET, FRONT BUMPER MOUNTING

main52147-0D120iNCP15#..GCC,GEN,PH,VN201310-201606

main52147-0D150iNSP151..C201403-201712

main52147-0D180iNCP150..TAIW201409-201604

main52147-0D280iNSP151..F201804-202101

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-0D070iNSP151..PH,SA;NSP150..CVT..PH201709-202207

main53028-0D090iNSP151..5F..R..C201802-202108

main53028-0D100iNSP151..F201804-202101

main53028-0D120iNSP150,151..H201806-201910

53141FCOVER, RADIATOR

main53141-0D020iNSP152201709-201910

main53141-0D040iNSP152..HTWCB;NSP150..LHD..(GCC,GEN);NSP151..(GCC,GEN,MA,VN)..(A,B)201710-202302

main53141-0D060iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main53141-0D080iNCP15#..GCC,GEN,PH,VN201403-201606

main53141-0D081iNSP150,151..GCC,GEN,PH,VN201607-201708

main53141-0D100iNSP151201409-201606

main53141-0D101iNSP151..TAIW201607-201802

main53141-0D110iNSP152201310-201708

main53141-0D140iNCP150..C201403-201605

main53141-0D141iNCP150201606-201609

main53141-0D170iNSP151..F201804-202101

main53141-0D190iNSP150,151..H201806-201910

53202DCUSHION, RADIATOR SUPPORT

main53119-12150×2iNSP150..RHD;NSP150,151..5F..(IDN,PH)..R201709-202108

53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH

main53204-0D021iNSP151..B201904-202011

main53204-0D050iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main53204-0D060iNSP151..TAIW201409-201802

main53204-0D070iNSP15#..GCC,GEN,PH,TH,VN201310-201702

main53204-0D071iNSP15#..GCC,GEN,PH,TH,VN201703-201708

main53204-0D901iNSP150,151..6F201806-201910

main53204-0D990iNSP150,151..CVT..H201806-201910

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-0D150iNSP151..C201403-201712

main53208-0D190iNSP151..5F..R..C201802-202108

main53208-0D901iNSP151..PH,SA;NSP150..CVT..PH201709-202207

53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH

main53209-0D021iNSP151..B201904-202011

main53209-0D050iNCP150..C201403-201609

main53209-0D060iNSP151..TAIW201409-201802

main53209-0D070iNCP15#..GCC,GEN,PH,VN201310-201606

main53209-0D071iNSP151..PH,SA;NSP150..CVT..PH201709-202207

main53209-0D901iNSP150,151..6F201806-201910

main53209-0D902iNSP150,151..CVT..H201806-201910

53210SUPPORT ASSY, RADIATOR

main53201-0D190iNSP151..C201403-201712

main53201-0D240iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main53210-0D914iNCP150..TAIW201409-201604

main53210-0D917iNSP15#..GCC,GEN,PH,TH,VN201310-201703

main53210-0D919iNSP151..F201804-202101

main53210-0D920iNSP15#..GCC,GEN,PH,SA,TH,VN201709-201803

main53210-0D924iNSP15#..GCC,GEN,PH,TH,VN201703-201708

main53210-0D926iNSP150,151..6F201806-201910

main53210-0D927iNSP150,151..CVT..H201806-201910

main53210-0D929iNSP151..PH,SA;NSP150..CVT..PH201803-202207

main53210-0D930iNSP151..B201904-202011

53213ASUPPORT, RADIATOR, UPPER RH

main53213-0D110iNSP151..B201904-202010

main53213-0D140iNCP150..C201403-201609

main53213-0D141iNSP151..5F..R..C202010-202108

main53213-0D150iNSP151..F201804-202010

main53213-0D151iNSP151..F202010-202101

main53213-0D160iNSP15#..(GCC,GEN,PH,SA,TH,VN)..A201709-202009

main53213-0D161iNSP150..RHD;NSP150..5F..PH202010-202108

main53213-0D210iNSP150,151..H201806-201910

main53213-0D220iNSP151..B202010-202011

53214ASUPPORT, RADIATOR, UPPER LH

main53214-0D120iNSP151..B201904-202010

main53214-0D140iNSP151..C201403-201712

main53214-0D141iNSP151..(G,V)..C;NSP151..CVT..R..C202010

main53214-0D150iNCP150..TAIW201409-201604

main53214-0D151iNSP151..F202010-202101

main53214-0D160iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main53214-0D161iNSP151..PH,SA;NSP150..CVT..PH202010-202207

main53214-0D210iNSP150,151..H201806-201910

main53214-0D220iNSP151..B202010-202011

53215BSUPPORT, HOOD LOCK

main53215-0D121iNCP15#..GCC,GEN,PH,VN201310-201606

main53215-0D141iNCP150..C201403-201609

main53215-0D151iNCP150..TAIW201409-201604

main53215-0D901iNSP150,151..H201806-201910

53216ASUPPORT, RADIATOR, UPPER

main53216-0D090iNSP151..B201904-202011

main53216-0D120iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main53216-0D130iNCP150..TAIW201409-201604

main53216-0D150iNCP15#..GCC,GEN,PH,VN201310-201606

main53216-0D190iNSP150,151..H201806-201910

53245BRACKET, HEADLAMP, RH

main53245-0D030iNCP15#..GCC,GEN,PH,VN201310-201606

main53245-0D050iNCP150..TAIW201409-201604

main53245-0D060iNSP151..C201403-201712

main53245-0D100iNSP150,151..H201806-201910

main53245-0D110iNSP151..PH,SA;NSP150..CVT..PH201709-202207

main53245-0D120iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main53245-0D130iNSP151..F201804-202101

53246BRACKET, HEADLAMP, LH

main53246-0D030iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main53246-0D050iNSP151..TAIW201409-201802

main53246-0D060iNCP150..C201403-201609

main53246-0D100iNSP150,151..H201806-201910

main53246-0D110iNSP151..PH,SA;NSP150..CVT..PH201709-202207

main53246-0D120iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main53246-0D130iNSP151..F201804-202101

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-0D040iNSP15#..GCC,GEN,PH,SA,TH,VN201709-201802

main53271-0D041iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201803-202302

main53271-0D060iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main53271-0D070iNSP151..F201804-202101

main53271-0D100iNSP150,151..H201806-201910

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-0D040iNCP15#..GCC,GEN,PH,VN201310-201606

main53272-0D041iNSP150..RHD;NSP150..5F..PH201803-202108

main53272-0D060iNSP151..C201403-201712

main53272-0D070iNSP151..TAIW201409-201802

main53272-0D100iNSP150,151..H201806-201910

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-0D170iNCP15#,NSP15#..GEN,PH,TH,VN201310-201708

main53285-0D180iNCP15#,NSP150,151..GCC201403-201708

main53285-0D220iNCP150,NSP151..TAIW201409-201802

main53285-0D240iNCP150,NSP151..C201403-201712

main53285-0D300iNSP150,151..6F201806-201910

main53285-0D370iNSP150..LHD..GEN;NSP151,152..(GEN,MA,TH,VN)..(A,B)201709-202302

main53285-0D380iNSP150..5F..GEN..R201710-202302

ECUADOR SPEC

main53285-0D390iNSP151..5F..R..C201802-202108

main53285-0D410iNSP151..F201804-202101

main53285-0D430iNSP150,151..CVT..H201806-201910

main53285-YP020supersedes 53285-0D370iNSP150..LHD..GEN;NSP151,152..GEN,TH,VN202009-202302

MLM PACKAGE

main53285-YP030supersedes 53285-0D390iNSP151..(G,V)..C;NSP151..CVT..R..C201911

MLM PACKAGE

main53285-YP050iNSP151..5F..GEN202009-202302

PERU SPEC&MLM PACKAGE

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-0D160iNCP15#,NSP15#..GEN,PH,TH,VN201310-201708

main53286-0D170iNCP15#,NSP150,151..GCC201403-201708

main53286-0D210iNCP150,NSP151..TAIW201409-201802

main53286-0D230iNCP150,NSP151..C201403-201712

main53286-0D300iNSP150,151..6F201806-201910

main53286-0D370iNSP150..LHD..GEN;NSP151,152..(GEN,MA,TH,VN)..(A,B)201709-202302

main53286-0D380iNSP150..5F..GEN..R201710-202302

ECUADOR SPEC

main53286-0D390iNSP151..5F..R..C201802-202108

main53286-0D410iNSP151..F201804-202101

main53286-0D430iNSP150,151..CVT..H201806-201910

main53286-YP020supersedes 53286-0D370iNSP151..PH,SA;NSP150..CVT..PH202009-202207

MLM PACKAGE

main53286-YP030supersedes 53286-0D390iNSP151..(G,V)..C;NSP151..CVT..R..C201911

MLM PACKAGE

main53286-YP050iNSP150..5F..GEN..R202009-202302

PERU SPEC&MLM PACKAGE

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-0D090iNSP150,151..6F201806-201910

main53287-0D120iNCP15#,NSP15#..GCC,GEN,PH,TH,VN201310-201708

main53287-0D150iNCP150,NSP151..TAIW201409-201802

main53287-0D170iNCP150,NSP151..C201403-201712

main53287-0D260iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201709-202302

main53287-0D270iNSP151..5F..R..C201802-202108

main53287-0D280iNSP151..F201804-202101

main53287-0D300iNSP150,151..CVT..H201806-201910

main53287-0D310iNSP151..5F..GEN201710-202302

ECUADOR SPEC

main53287-YP020supersedes 53287-0D260iNSP151..PH,SA;NSP150..CVT..PH202009-202207

MLM PACKAGE

main53287-YP030supersedes 53287-0D270iNSP151..(G,V)..C;NSP151..CVT..R..C201911

MLM PACKAGE

main53287-YP040iNSP150..5F..GEN..R202009-202302

PERU SPEC&MLM PACKAGE

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-0D080iNSP150,151..6F201806-201910

main53288-0D110iNCP15#,NSP15#..GCC,GEN,PH,TH,VN201310-201708

main53288-0D140iNCP150,NSP151..TAIW201409-201802

main53288-0D160iNCP150,NSP151..C201403-201712

main53288-0D250iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201709-202302

main53288-0D260iNSP151..5F..R..C201802-202108

main53288-0D270iNSP151..F201804-202101

main53288-0D300iNSP150,151..CVT..H201806-201910

main53288-0D290iNSP151..5F..GEN201710-202302

ECUADOR SPEC

main53288-YP020supersedes 53288-0D250iNSP150..LHD..(GCC,GEN);NSP151,152..GCC,GEN,TH,VN202009-202302

MLM PACKAGE

main53288-YP030supersedes 53288-0D260iNSP151..(G,V)..C;NSP151..CVT..R..C201911

MLM PACKAGE

main53288-YP040iNSP151..5F..GEN202009-202302

PERU SPEC&MLM PACKAGE

53301GCUSHION, HOOD BUMPER

main90541-15111×2iNCP15#..GCC,GEN,PH,VN201310-201606

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0D190iNCP15#..GCC,GEN,PH,VN201310-201606

main53701-0D220iNCP150..C201403-201609

main53701-0D240iNCP150..TAIW201409-201604

main53701-0D330iNSP151..PH,SA;NSP150..CVT..PH201709-202207

main53701-0D340iNSP150,151..H201806-201910

main53701-0D360iNSP151..5F..R..C201802-202108

main53701-0D380iNSP151..B201904-202011

main53701-0D390iNSP151..F201804-202101

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0D180iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main53702-0D210iNCP150..C201403-201609

main53702-0D230iNCP150..TAIW201409-201604

main53702-0D320iNSP150..RHD;NSP150..5F..PH201709-202108

main53702-0D330iNSP150,151..H201806-201910

main53702-0D350iNSP151..5F..R..C201802-202108

main53702-0D370iNSP151..B201904-202011

main53702-0D380iNSP151..F201804-202101

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-0D020iNSP150..RHD;NSP150..5F..PH201709-202108

main53707-0D030iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main53707-0D050iNSP150,151..H201806-201910

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-0D020iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main53708-0D030iNCP150..C201403-201609

main53708-0D050iNSP150,151..H201806-201910

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-0D070iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main53713-0D090iNCP150..C201403-201609

main53713-0D110iNCP150..TAIW201409-201604

main53713-0D200iNSP150..RHD;NSP150..5F..PH201709-202108

main53713-0D210iNSP150,151..H201806-201910

main53713-0D220iNSP151..5F..R..C201802-202108

main53713-0D240iNSP151..B201904-202011

main53713-0D250iNSP151..F201804-202101

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-0D070iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main53714-0D090iNCP150..C201403-201609

main53714-0D110iNSP151..TAIW201409-201802

main53714-0D200iNSP151..PH,SA;NSP150..CVT..PH201709-202207

main53714-0D210iNSP150,151..H201806-201910

main53714-0D220iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main53714-0D240iNSP151..B201904-202011

main53714-0D250iNSP151..F201804-202101

53717APLATE, FENDER APRON

main53717-0D060iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main53717-0D090iNSP151..C201403-201712

main53717-0D110iNCP150..TAIW201409-201604

main53717-0D180iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201709-202302

main53717-0D190iNSP151..5F..R..C201802-202108

main53717-0D200iNSP151..F201804-202101

main53717-0D220iNSP150,151..H201806-201910

53718DGUSSET, FENDER APRON, LH

main53718-0D060iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main53718-0D090iNCP150..C201403-201609

main53718-0D110iNSP151..TAIW201409-201802

main53718-0D180iNSP150..RHD;NSP150..5F..PH201709-202108

main53718-0D190iNSP150,151..H201806-201910

main53718-0D200iNSP151..5F..R..C201802-202108

main53718-0D210iNSP151..F201804-202101

55101PANEL SUB-ASSY, DASH

main55101-0D490iNSP150..5F..G201403-201708

main55101-0D500iNSP151..CVT..SA201709-202207

main55101-0D510iNSP150,151..LHD..5F201403-201708

main55101-0D520iNSP150,151..LHD..CVT..(GCC,GEN,VN)..A201710-202302

main55101-0D560iNSP151..5F..(G,V)..C201802

main55101-0D570iNSP151..CVT..C201403-201712

main55101-0D640iNSP151..F201804-202101

main55101-0D800iNSP150,151..6F201806-201910

main55101-0D810iNSP150,151..CVT..H201806-201910

main55101-0D820iNSP151..B201904-202011

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-0D050iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main55168-0D070iNSP151..C201403-201712

main55168-0D090iNSP150,151..H201806-201910

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-0D050iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main55169-0D070iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main55169-0D090iNSP150,151..H201806-201910

55210INSULATOR ASSY, DASH PANEL

main55210-0D380iNSP152;NSP150..5F..G201310-201707

main55210-0D381iNSP151..SA201709-202207

main55210-0D390iNSP150..RHD..R201403-201708

main55210-0D400iNSP150,151..CVT..(GCC,GEN,PH,VN)..G201403-201708

main55210-0D401iNSP150,151..LHD..(GCC,GEN,VN)..A201710-202302

main55210-0D410iNSP150,151..LHD..(GCC,GEN,PH,VN)..(D,R)201403-201708

main55210-0D471iNSP151..B201904-202011

main55210-0D510iNCP150..TAIW..(G,V)201409-201604

main55210-0D511iNSP151..F201804-202101

main55210-0D540iNCP150..TAIW..R201409-201604

main55210-0D550iNSP151..(G,V)..C201403-201712

main55210-0D551iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main55210-0D560iNSP151..R..C201403-201712

main55210-0D830iNSP150,151..H201806-201910

55223AINSULATOR, DASH PANEL, OUTER

main55223-0D250iNCP151..RHD201310-201606

main55223-0D260iNCP15#..LHD..(GCC,GEN,PH,VN)..(G,R)201403-201606

main55223-0D380iNSP150..RHD;NSP151..5F..R..C201709-202108

main55223-0D390iNSP151..B201904-202011

main55223-0D410iNSP151..F201710-202101

main55223-0D430iNSP150,151..H201806-201910

55223CCLIP

main90467-06197iNSP152201310-201412

J PACKAGE

main90467-T0032iNSP151..TAIW201412-201802

(L)

5701

7403

9010906379

main90109-06379

9010906380

main90109-06380

90109T0043

main90109-T0043

90109T0060

main90109-T0060

9046707214

main90467-07214

9046707217

main90467-07217

90467T0048

main90467-T0048

90467T0053

main90467-T0053

9090105005

main90901-05005

46 parts on this diagram · 5 diagrams in section
