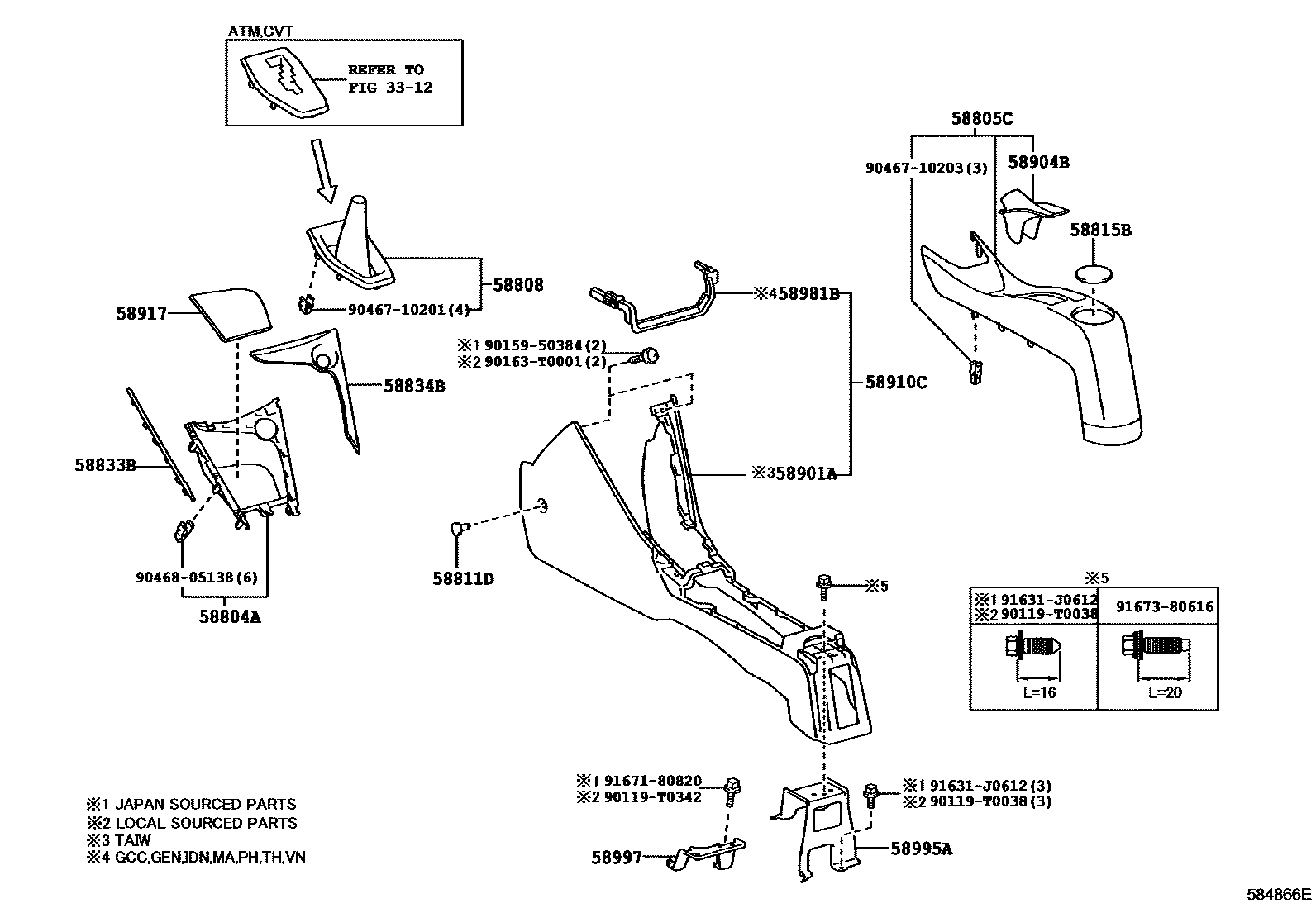

Toyota YARIS — CONSOLE BOX & BRACKET

0001 1 0006 1 0009 1 0010 1 0011 1

3312

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0D060iNSP151..CVT..D;NSP150,151..LHD..(GCC,GEN,PH,VN)..(G,R)201403-201708

main58804-0D070iNCP151..RHD201310-201606

main58804-0D120iNSP151..C201403-201712

main58804-0D130iNSP150,151..5F..D201403-201708

main58804-0D170iNCP150..TAIW201409-201604

main58804-0D320iNSP150..RHD..R201710-202108

main58804-0D330iNSP151..CVT..SA201710-202207

main58804-0D340iNSP151..GEN..D..A201710-202302

main58804-0D350iNSP150..CVT..PH201710-202207

main58804-0D360iNSP151..PH201710-202207

main58804-0D400supersedes 58804-0D400iNSP151..CVT..(G,V)..C201802

main58804-0D480iNSP151..R..F201804-202101

main58804-0D490iNSP151..(G,V)..F201804-202101

main58804-0D620supersedes 58804-0D650iNSP150..CVT..R..H;NSP151..CVT..D..H201806-201910

PARAGUAY SPEC

main58804-0D630iNSP151..CVT..(G,V)..H201806-201910

main58804-0D640-C0iNSP150,151..6F201806-201910

BLACK,TRIM2#

main58804-0D140iNSP152201310-201708

J PACKAGE

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-0D040-C0iNCP15#..LHD..(GCC,GEN,PH,VN)201403-201606

BLACK,TRIM0#,2#

main58805-0D070-C0iNCP151..RHD201310-201606

BLACK,TRIM0#,2#

main58805-0D100-C1iNCP150..TAIW..(G,R)201409-201604

BLACK,TRIM2#

main58805-0D130-C1iNCP150..(G,R)..C201403-201609

BLACK,TRIM2#

main58805-0D250-C0iNSP151..V..F201804-202101

BLACK,TRIM2#

main58805-0D270-C1iNSP150,151..H201806-201910

BLACK,TRIM2#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0D180-C0iNSP150,151..LHD..5F..GEN201403-201708

BLACK,TRIM0#,2#

main58808-0D190-C0iNSP150..5F..G201403-201708

BLACK,TRIM0#,2#

main58808-0D250-C0iNCP150..5F..(G,R)..C201403-201609

BLACK,TRIM2#

main58808-0D370-C0iNSP151..5F..SA201710-202207

BLACK,TRIM2#

main58808-0D470-C0iNSP151..5F..R..C201802-202108

BLACK,TRIM2#

main58808-0D640-C0iNSP150,151..5F..GEN..R201710-202302

BLACK,TRIM0#,2#

58811DCLIP(FOR CONSOLE BOX)

main90467-05164-C0iNCP150..TAIW..(G,R)201409-201604

BLACK,TRIM2#

main90467-05164-C7iNSP151..TAIW..(G,R)201610-201802

BLACK,TRIM2#

main90467-10203×2iNSP151..F201709-202101

main90467-T0004-C1iNCP15#..GCC,GEN,PH,VN201310-201606

BLACK,TRIM0#,2#

main90467-T0004-C4iNSP151..R..C201612-201712

BLACK,TRIM2#,(L)

58815BCARPET, CONSOLE BOX

main58815-0D150iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main58815-0D230iNSP151..TAIW201409-201802

main58815-0D250iNSP151..C201403-201712

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-0D050iNCP15#..LHD..(GCC,GEN,PH,VN)201403-201606

main58833-0D060iNCP151..RHD201310-201606

main58833-0D090iNCP150..TAIW201409-201604

main58833-0D120iNCP150..C201403-201609

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-0D050iNCP15#..LHD..(GCC,GEN,PH,VN)201403-201606

main58834-0D060iNCP151..RHD201310-201606

main58834-0D090iNCP150..TAIW201409-201604

main58834-0D120iNSP151..C201403-201712

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-0D290-C0iNCP150..TAIW..(G,R)201409-201604

BLACK,TRIM2#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-0D030-C0iNSP150,151..PH201607-201708

BLACK,TRIM2#

main58904-0D070-C0iNCP150..TAIW..(G,R)201409-201604

BLACK,TRIM2#

main58904-0D090-C0iNCP150..(G,R)..C201403-201609

BLACK,TRIM2#

main58904-0D140-C0iNSP150,151..LHD..(GCC,GEN)..A201710-202302

BLACK,TRIM0#,2#

main58904-0D150-C0iNSP151..B201904-202011

BLACK,TRIM2#

main58904-0D170-C0iNSP151..5F..R..C201802-202108

BLACK,TRIM2#

58910CBOX ASSY, CONSOLE, REAR

main58910-0D080-C0iNCP15#..LHD..(GCC,GEN,PH,VN)..(G,R)201403-201606

BLACK,TRIM0#,2#

main58910-0D100-C0iNCP151..RHD201310-201606

BLACK,TRIM0#,2#

main58910-0D160-C0iNCP150..TAIW..(G,R)201409-201604

BLACK,TRIM2#

main58910-0D200-C0iNCP150..G..C201403-201609

BLACK,TRIM2#

main58910-0D220-C0iNSP150,151..5F..D201403-201708

BLACK,TRIM0#,2#

main58910-0D390-C0supersedes 58910-0D620-C0iNSP151..GEN..D..A201710-202302

BLACK,TRIM0#,2#

main58910-0D450-C0iNSP150,151..D..H201806-201910

BLACK,TRIM2#

main58910-0D480-C1iNSP151..VN..G201710-202302

BLACK/IVORY/CAMEL STITCH,TRIM0#

main58910-0D480-C2iNSP151..(PH,SA)..(G,V)201710-202009

E-SPORT PACKAGE(GRADE MARK(S)),BLACK/IVORY STITCH,TRIM2#

main58910-0D480-C4iNSP151..PH202009-202207

BLACK/BLUE,TRIM2#

main58910-0D490-C2iNSP151..V..B201904-202011

BLACK/RED STITCH,TRIM2#

main58910-0D540-C0iNSP151..6F..AGT..G201806-201910

BLACK,TRIM2#

main58910-0D550-C0iNSP151..BZ..G201806-201910

BLACK/RED,TRIM25

main58910-0D550-C1supersedes 58910-0D550-C1iNSP151..BZ..G201806-201910

BLACK/LT.GRAY,TRIM25

main58910-0D580-C1iNSP151..D..B201904-202011

BLACK,TRIM2#

main58910-0D620-C0iNSP151..VN..R201710-202008

BLACK,TRIM0#

main58910-0D630-C2iNSP150..5F..PH201710-202108

BLACK,TRIM2#

main58910-0D640-C2iNSP151..G..C201802

BLACK,TRIM2#

main58910-0D650-C1iNSP151..V..C201802

BLACK/RED STITCH,TRIM2#

main58910-0D660-C0iNSP151..V..F201804-202101

BLACK,TRIM2#

main58910-0D680-C1iNSP151..SA..R202009-202207

BLACK,TRIM2#

main58910-0D720-C0iNSP151..GEN..G;NSP150,151..R..H201806-201910

BLACK,TRIM2#

main58910-0D740-C1iNSP151..(G,R)..B201904-202011

BLACK,TRIM2#

main58910-0D750-C0iNSP151..CVT..R..C201802

BLACK,TRIM2#

main58910-0DA70-C0iNSP151..V..A202009-202207

BLACK/BLUE,TRIM2#

main58910-0D240-C0iNSP152201310-201708

J PACKAGE,BLACK,TRIM0#,2#

main58910-0D730-C0iNSP151..GEN..G201806-201910

SPORT PACKAGE(*RCL(LED TYPE)),BLACK,TRIM2#

main58910-0DB20-C1iNSP151..CVT..G..C202009

BRUNEI SPEC,BLACK,TRIM2#

58917MAT, BOX BOTTOM, NO.2

main58917-0D110iNCP15#..4FC..(GCC,GEN,PH,VN)..G201510-201606

main58917-0D120iNSP150..5F..G201310-201708

main58917-0D140iNSP151..(G,V)..C201403-201712

main58917-0D150iNCP150..TAIW..(G,V)201409-201604

58981BRETAINER, CONSOLE MOUNTING, NO.1

main58164-0D010iNSP150,151..LHD..(GCC,GEN,PH,VN)201403-201708

main58164-0D020iNCP151..RHD201310-201606

main58164-0D080iNSP151..C201403-201712

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-0D100iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main58995-0D110iNSP151..TAIW201409-201802

main58995-0D120iNCP150..C201403-201609

main58995-0D150iNSP151..PH,SA;NSP150..CVT..PH201709-202207

main58995-0D160iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main58995-0D170iNSP151..F201804-202101

main58995-0D190iNSP150,151..H201806-201910

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-0D040iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main58997-0D050iNSP151..TAIW201409-201802

main58997-0D060iNSP151..C201403-201712

main58997-0D070iNSP150..RHD;NSP150..5F..PH201709-202108

main58997-0D080iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main58997-0D090iNSP151..F201804-202101

main58997-0D110iNSP150,151..H201806-201910

90119T0038

main90119-T0038

90119T0342

main90119-T0342

9015950384

main90159-50384

90163T0001

main90163-T0001

9046710201

main90467-10201

9046710203

main90467-10203

9046805138

main90468-05138

91631J0612

main91631-J0612

9167180820

main91671-80820

9167380616

main91673-80616

25 parts on this diagram · 5 diagrams in section
