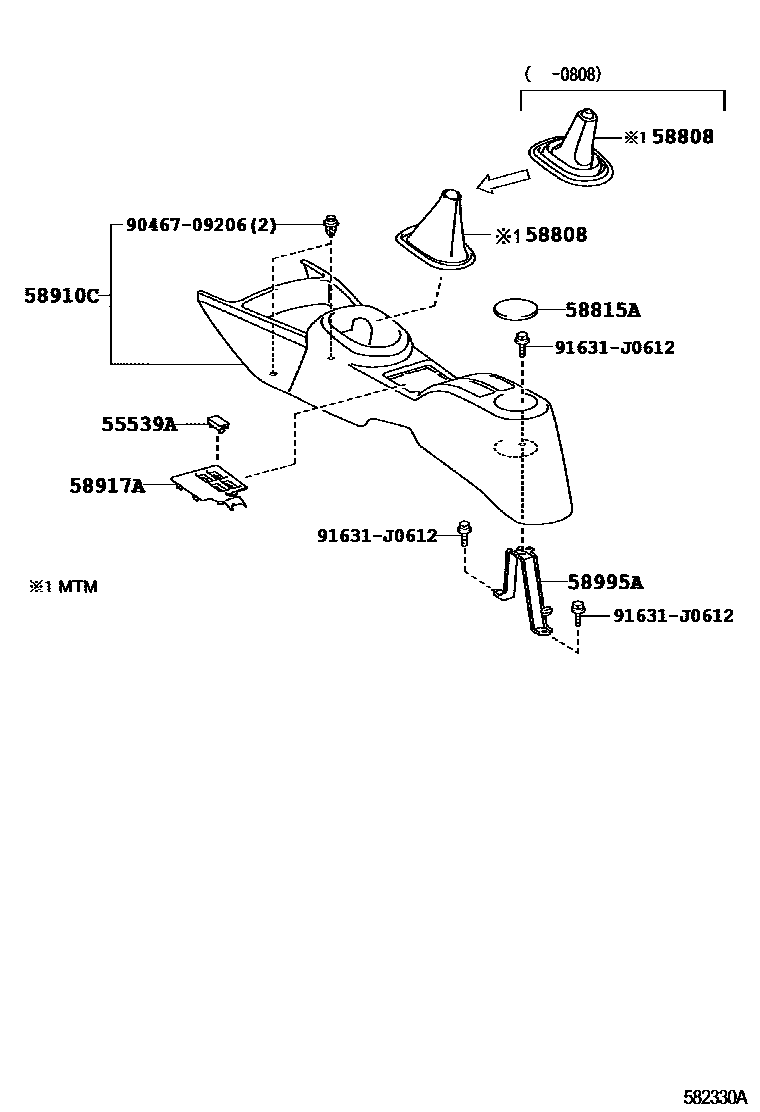

Toyota YARIS — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-52060-B1iNCP91..5F200508-200708

DK.GRAY,TRIM1#

main58808-52090-B0iNCP91..5F200808-200911

DK.GRAY,TRIM1#

main58808-52170-B0iNCP91..5F200911-201107

DK.GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-52050iNCP91200508-200708

main58815-52110iNCP91201106-201107

58910CBOX ASSY, CONSOLE, REAR

main58910-52020-B0iNCP91200508-200708

DK.GRAY,TRIM1#

58917ACOVER, CONSOLE BOX, REAR

main58917-52040-B0iNCP91200508-200708

DK.GRAY,TRIM1#

main58917-52041-B0iNCP91200902-201107

DK.GRAY,TRIM1#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-52010iNCP91200508-200708

9046709206

main90467-09206

91631J0612

main91631-J0612

8 parts on this diagram · 1 diagram in section
