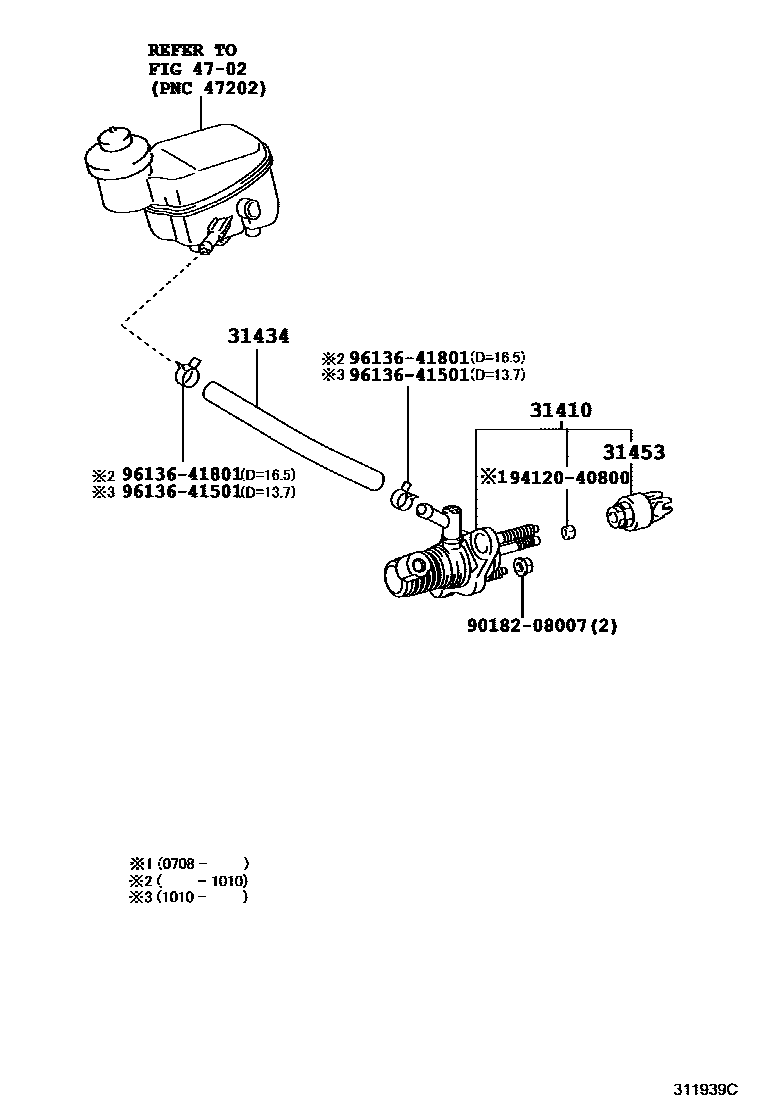

Toyota YARIS — CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-52070iNCP91..5F200508-201011

sub31420-52071

main31420-52080iNCP91..5F201011-201108

sub31420-52081

31434TUBE, CLUTCH RESERVOIR

main31434-52150iNCP91..5F200508-201010

main31434-52230iNCP91..5F201010

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-26020iNCP91..5F200508-201011

sub31404-26021

main31453-52020iNCP91..5F201011

sub31453-52021

4702

9018208007

main90182-08007

9412040800

main94120-40800

9613641501

main96136-41501

9613641801

main96136-41801

8 parts on this diagram · 1 diagram in section
