Toyota YARIS — ARMREST & VISOR

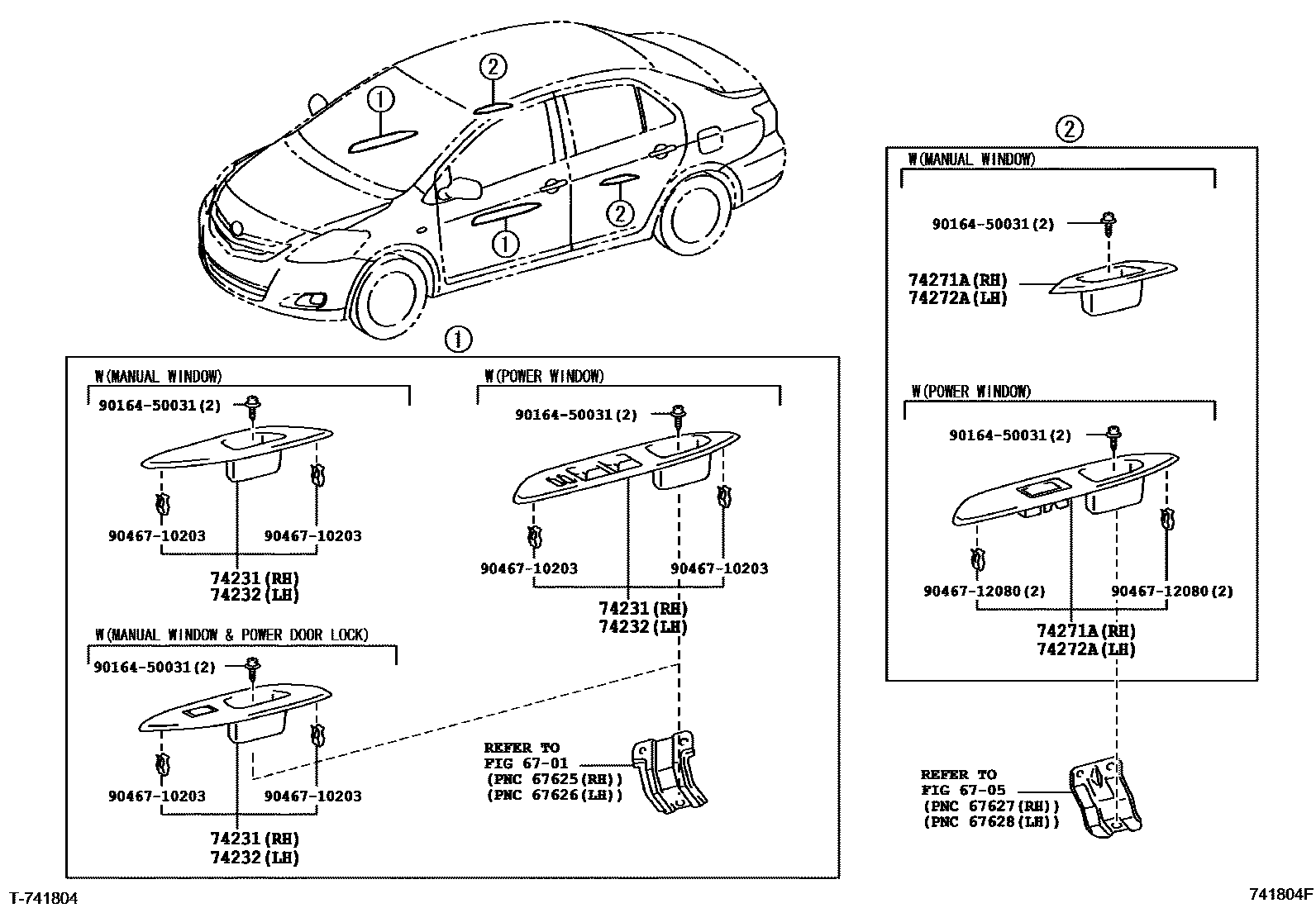

Parts diagram
6701FRONT DOOR PANEL & GLASS
→ Go to FIG 67-01
6705REAR DOOR PANEL & GLASS
→ Go to FIG 67-05
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-52380-B0i200808-201208
DK.GRAY,TRIM1#
main74231-52380-B0i200808-201208
DK.GRAY,TRIM1#,41
main74231-52380-B0i200602-200808
DK.GRAY,TRIM1#,4#
main74231-52380-E0i200808-201208
ASH BROWN,TRIM4#
main74231-52380-E0i200808-201208
ASH BROWN,TRIM40
main74231-52530i201208-201607
SILVER
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-52300-B0i200602-200808
DK.GRAY,TRIM1#,4#
main74232-52300-B0i200808-201208
DK.GRAY,TRIM1#
main74232-52300-B0i200808-201208
DK.GRAY,TRIM1#,41
main74232-52300-E0i200808-201208
ASH BROWN,TRIM4#
main74232-52300-E0i200808-201208
ASH BROWN,TRIM40
main74232-52420i201208-201607
SILVER
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-52090-B0i200602-200808
DK.GRAY,TRIM1#,4#
main74271-52090-B0i200808-201208
DK.GRAY,TRIM1#
main74271-52090-B0i200808-201208
DK.GRAY,TRIM1#,41
main74271-52090-E0i200808-201208
ASH BROWN,TRIM4#
main74271-52090-E0i200808-201208
ASH BROWN,TRIM40
main74271-52150i201208-201607
SILVER
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-52080-B0i200808-201208
DK.GRAY,TRIM1#
main74272-52080-B0i200602-200808
DK.GRAY,TRIM1#,4#
main74272-52080-B0i200808-201208
DK.GRAY,TRIM1#,41
main74272-52080-E0i200808-201208
ASH BROWN,TRIM4#
main74272-52080-E0i200808-201208
ASH BROWN,TRIM40
main74272-52140i201208-201607
SILVER
9016450031
main90164-50031
9046710203
main90467-10203
9046712080
main90467-12080

9 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota YARIS

This section contains 18 genuine Toyota parts for the ARMREST & VISOR system of the Toyota YARIS. Key components include: FRONT DOOR PANEL & GLASS, REAR DOOR PANEL & GLASS, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH.
