Toyota YARIS — ARMREST & VISOR

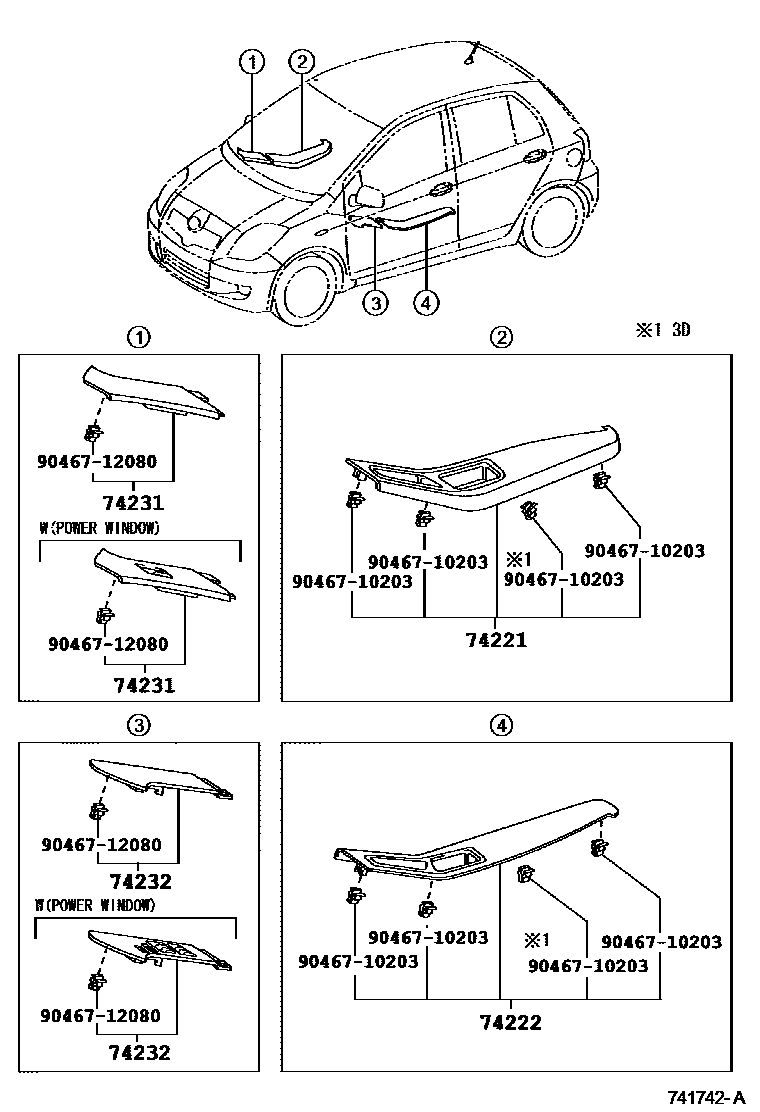

Parts diagram

74221COVER, DOOR ARMREST, RH

main74221-52010-B0200508-201107

main74221-52010-B1200508-201107

main74221-52020-B0200508-201107

main74221-52020-B1200508-201107

74222COVER, DOOR ARMREST, LH

main74222-52010-B0200508-201107

main74222-52010-B1200508-201107

main74222-52020-B0200508-201107

main74222-52020-B1200508-201107

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-52310-B0200508-201107

main74231-52310-B1200508-201002

main74231-52320-B1201002-201107

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52230-B0200508-201107

main74232-52230-B1200508-201002

main74232-52240-B1201002-201107

main74232-52250-B1201002-201107

9046710203

main90467-10203

9046712080

main90467-12080

6 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota YARIS

This section contains 15 genuine Toyota parts for the ARMREST & VISOR system of the Toyota YARIS. Key components include: COVER, DOOR ARMREST, RH, COVER, DOOR ARMREST, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, VISOR ASSY, RH.
