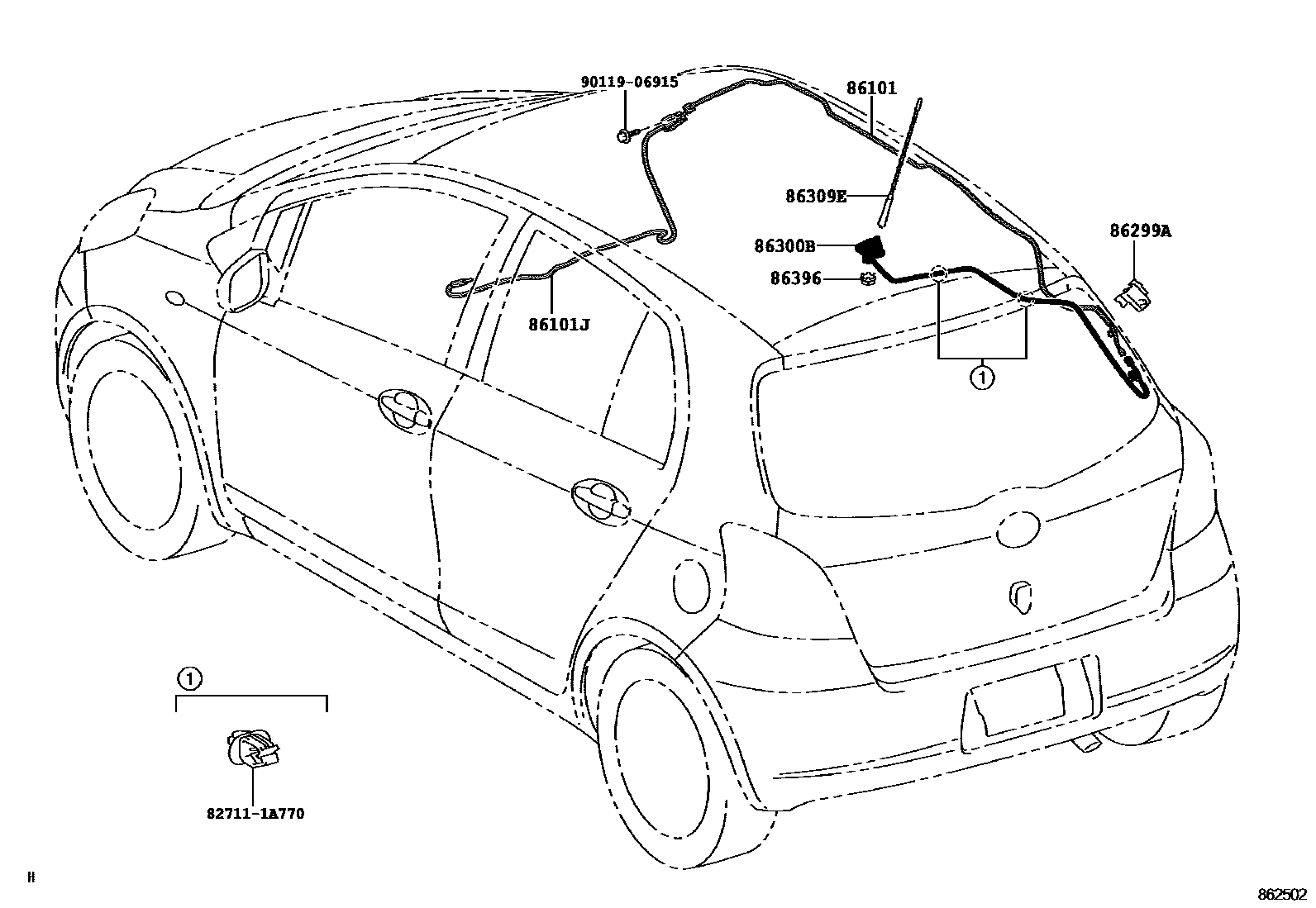

Toyota YARIS — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-52340iNCP91200508-201107

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-52410iNCP91200508-201107

86299ACLIP, RADIO TO ANTENNA WIRE

main86299-52010iNCP91200508-201107

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-52290iNCP91200508-201107

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-52040iNCP91200508-201107

86396NUT, ANTENNA

main86396-20040iNCP91200508-201107

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9011906915

main90119-06915

8 parts on this diagram · 1 diagram in section
