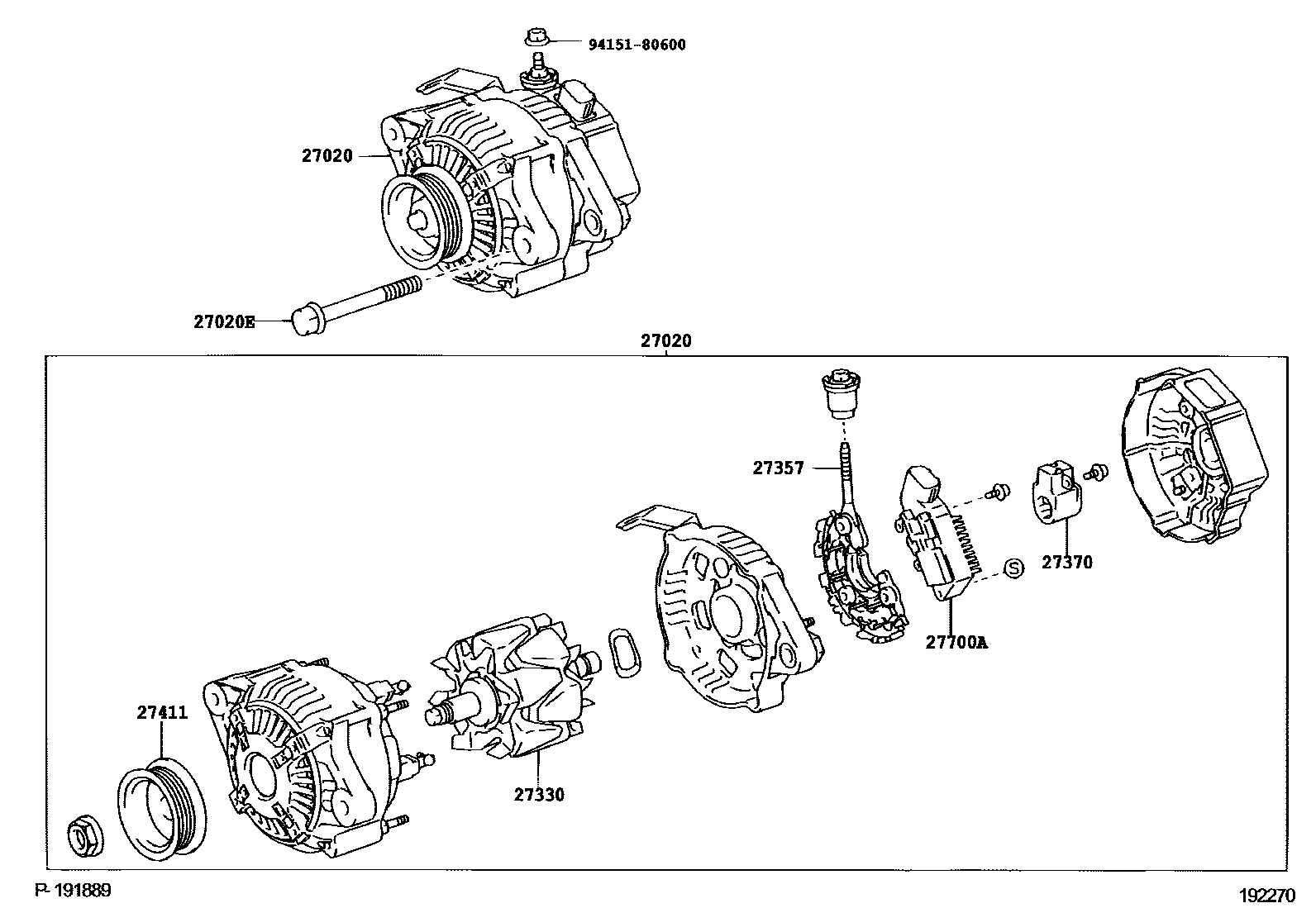

Toyota YARIS — ALTERNATOR

27020ALTERNATOR ASSY

main27060-21150i1NZFE..NCP91200508-200906

12V 80A

sub27060-21151

main27060-21151i1NZFE..NCP91200907-201107

12V 80A

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1NZFE..NCP91200508-201107

27330ROTOR ASSY, ALTERNATOR

main27330-30130i1NZFE..NCP91200904-201107

main27330-62220i1NZFE..NCP91200508-200904

sub27330-30130

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22200i1NZFE..NCP91200508-201107

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-23120i1NZFE..NCP91200508-201107

27411PULLEY, ALTERNATOR

main27411-70140i1NZFE..NCP91200508-201107

27700AREGULATOR ASSY, GENERATOR

main27700-21050i1NZFE..NCP91200508-201107

9415180600

main94151-80600

8 parts on this diagram · 1 diagram in section
