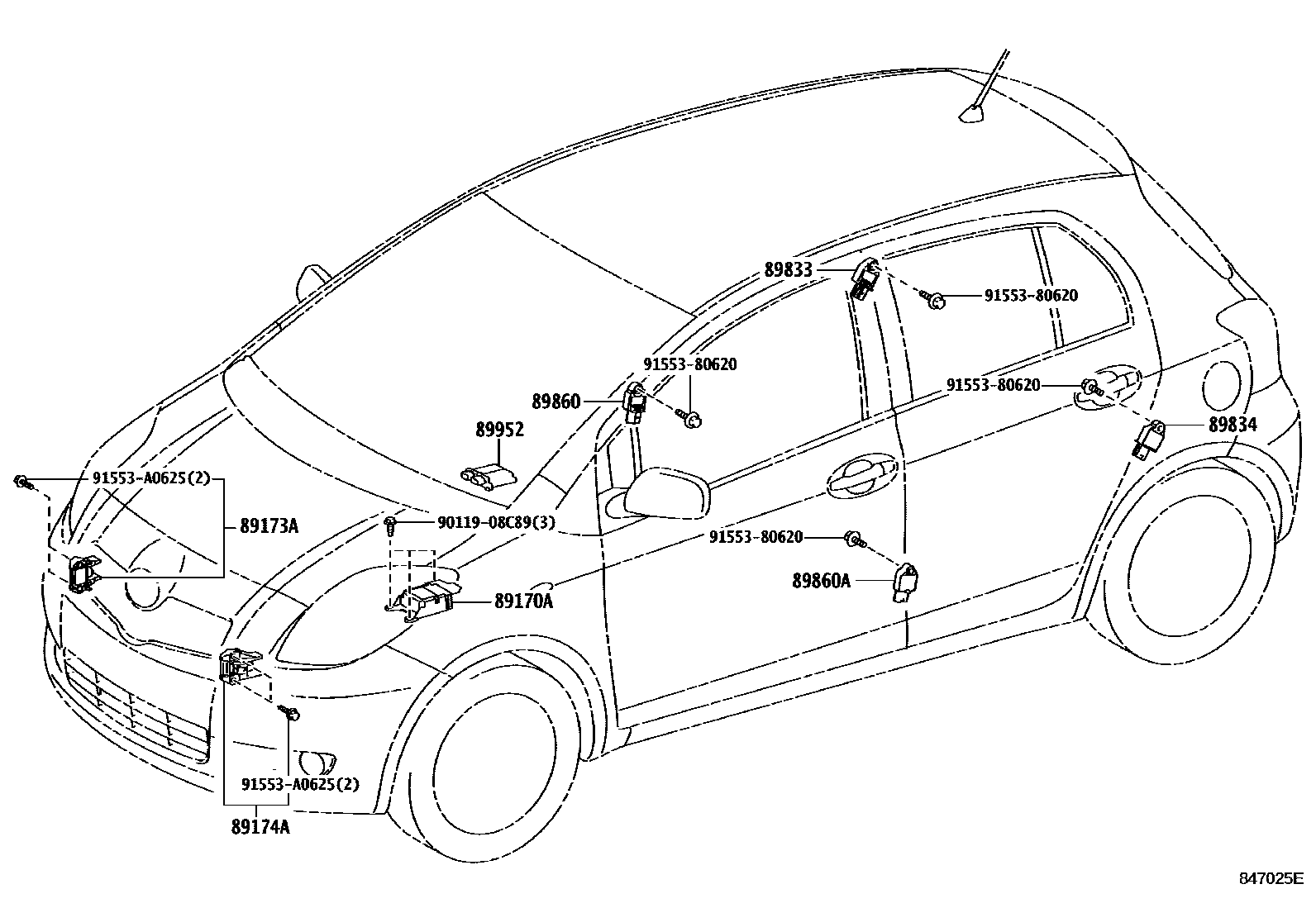

Toyota YARIS — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-52690iNCP91200508-200808

main89170-52B90iNCP91..CND200808-201001

main89170-52C00iNCP91..3D..CND200808-201108

main89170-52C10iNCP91..5D..CND200808-201108

89173ASENSOR, AIRBAG, FRONT RH

main89173-09270iNCP91200508-200708

main89173-29245iNCP91200708-200808

main89173-39375iNCP91200808-201107

89174ASENSOR, AIRBAG, FRONT LH

main89173-09270iNCP91200508-200708

main89173-29245iNCP91200708-200808

main89173-39375iNCP91200808-201107

89833SENSOR, AIRBAG, REAR RH

main89831-33020iNCP91..3D..5F..RS;NCP91..5D..STD..CND201001-201107

MEXICO SPEC

main89831-33020iNCP91..USA200808-201107

SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE)

89834SENSOR, AIRBAG, REAR LH

main89831-33020iNCP91..USA200808-201107

SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE)

main89831-33020iNCP91..CND201001-201107

MEXICO SPEC

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-28020iNCP91..USA200808-201107

SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE)

main89831-28020iNCP91..CND201001-201107

MEXICO SPEC

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-28020iNCP91..USA200808-201107

SRS AIR BAG-DRIVER(DUAL) & PASSENGER(ADVANCE)

main89831-28020iNCP91..CND201001-201107

MEXICO SPEC

89952COMPUTER, OCCUPANT DETECTION

main89952-35011iNCP91200508-201107

sub89952-35020

9011908C89

main90119-08C89

9155380620

main91553-80620

91553A0625

main91553-A0625

11 parts on this diagram · 1 diagram in section
