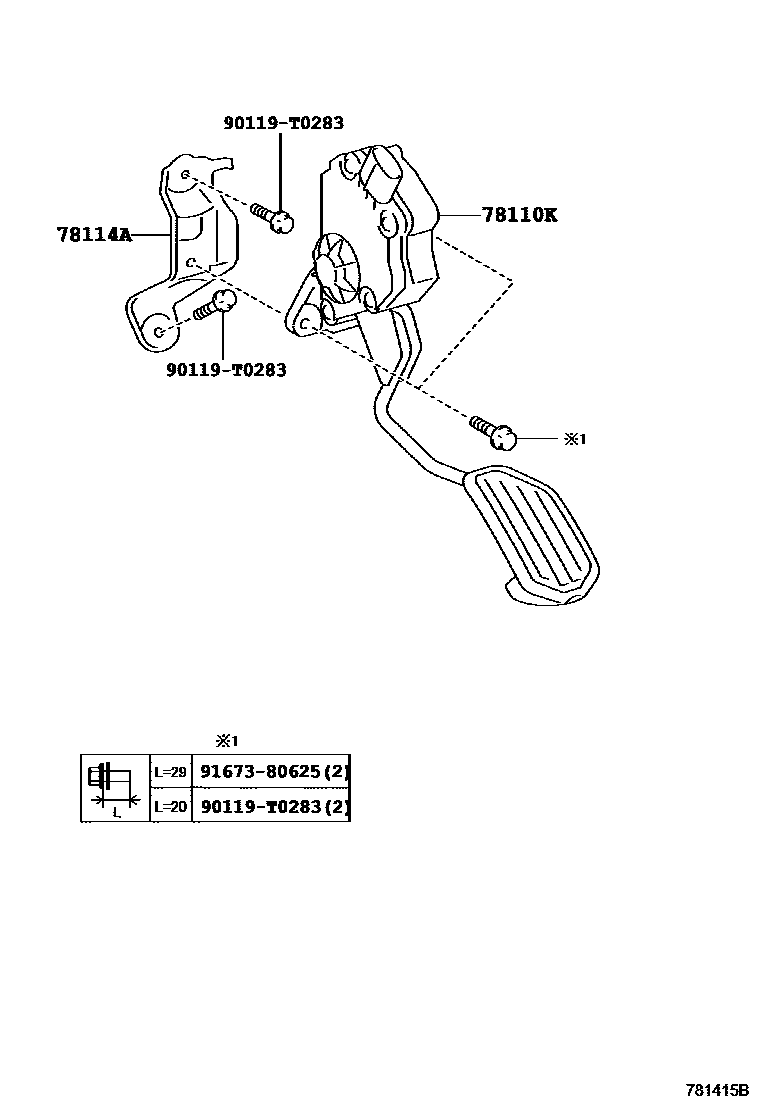

Toyota YARIS — ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-0D130iNCP15#,NSP152..RHD201310-201603

main78110-0D200iNCP15#..LHD201403-201603

main78110-0D210iNSP150,151..CVT..PH201710-202207

main78110-0D260iNSP150..RHD;NSP151..5F..R..C201709-202108

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-0D040iNSP151..SA201709-202207

main78114-0D080iNSP151..5F..R..C201802-202108

90119T0283

main90119-T0283

9167380625

main91673-80625

4 parts on this diagram · 2 diagrams in section
