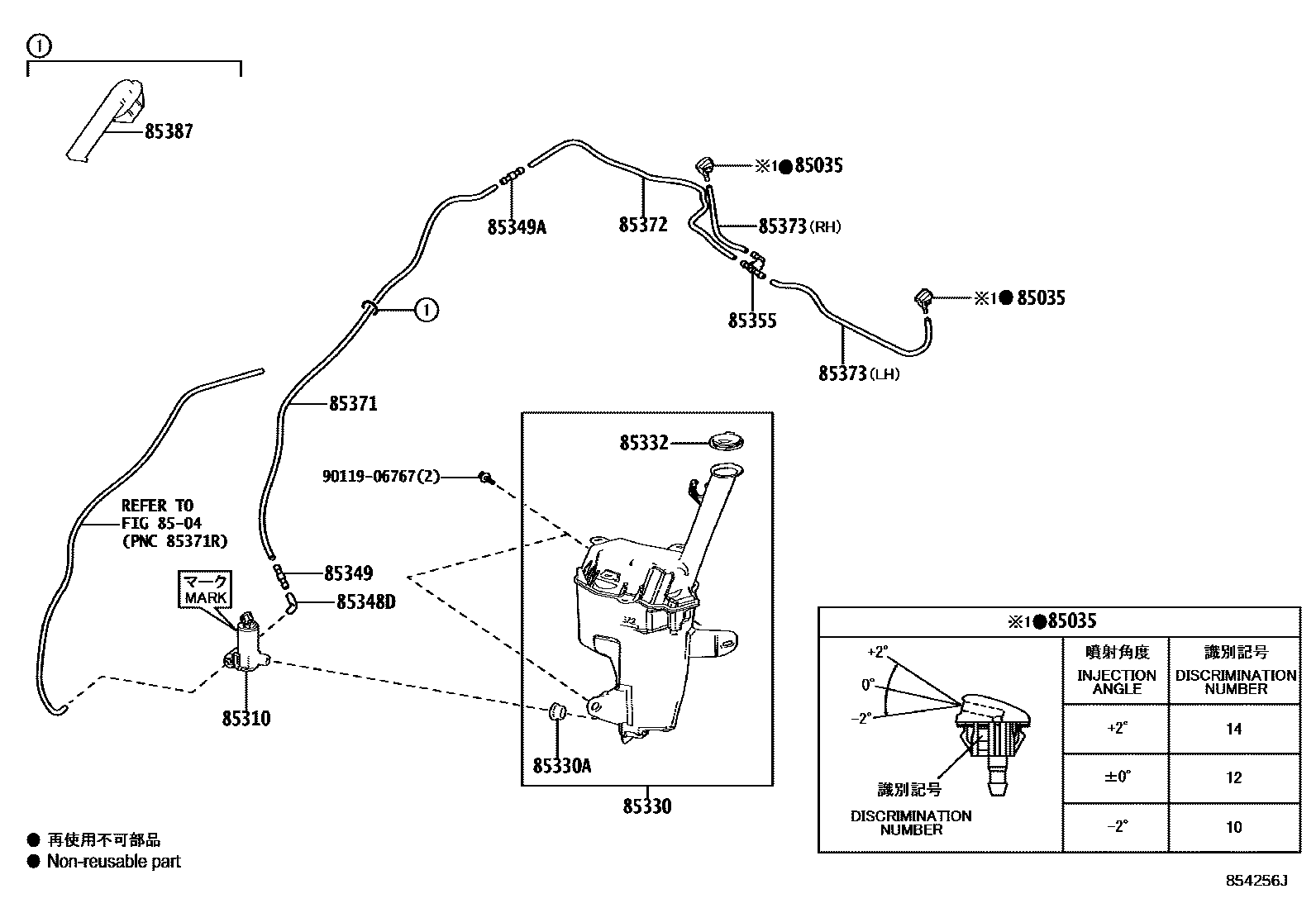

Toyota YARIS — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52430×2i202002-202401

main85381-52440×2i202002-202401

main85381-52450×2i202002-202401

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47090i202002-202012

main85330-47091i202101-202401

85330JAR ASSY, WINDSHIELD WASHER

main85315-K0030supersedes 85315-K0040i202401

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202002-202401

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i202002-202401

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85336-12230i202002-202401

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i202002-202401

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i202002-202401

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i202002

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-62228i202002-202401

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i202002-202401

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i202002-202401

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-52090i202002-202401

9011906767

main90119-06767

15 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota YARIS

This section contains 15 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota YARIS. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
