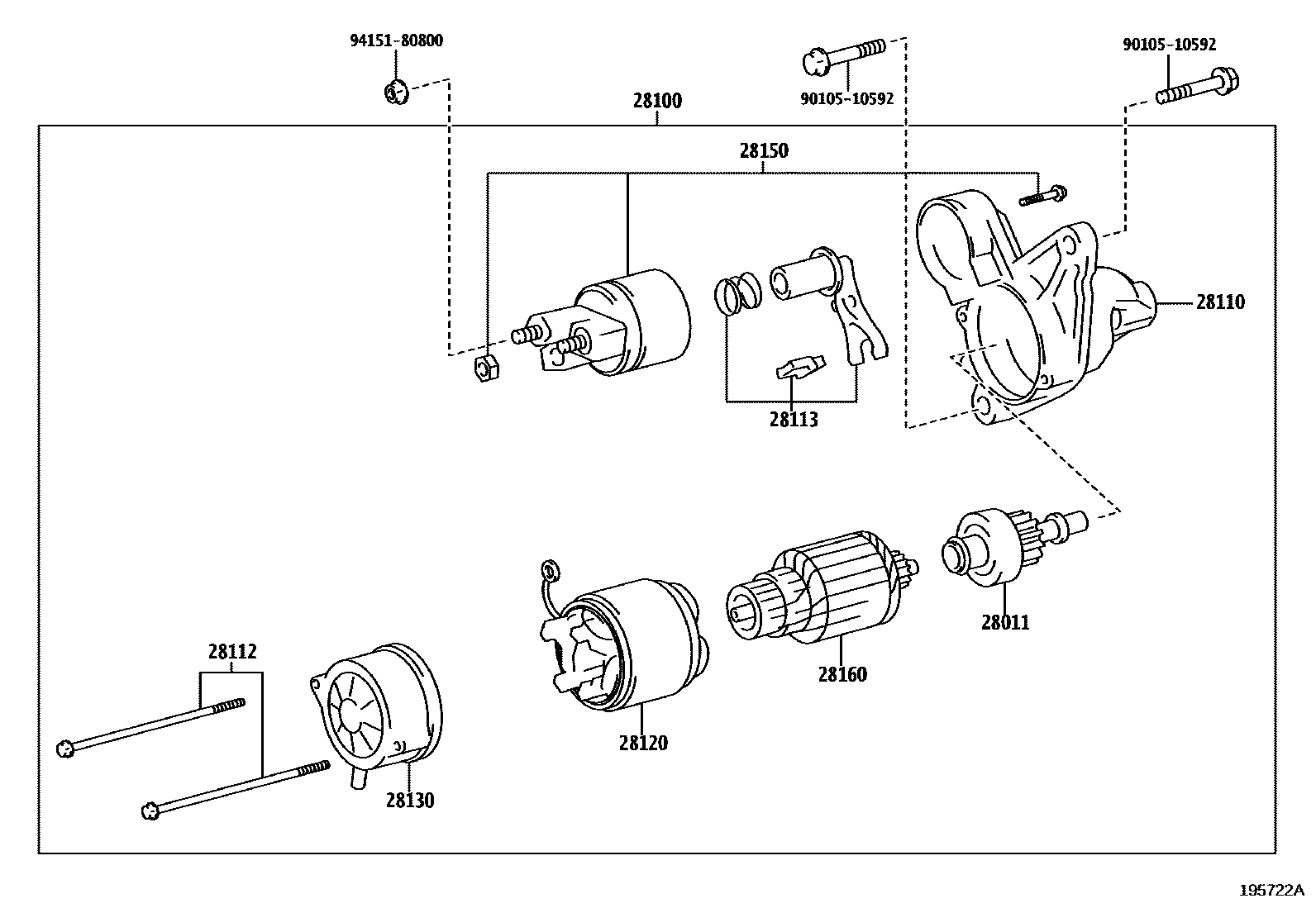

Toyota YARIS — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-0Q160i202002-202401

28100STARTER ASSY

main28100-0Q160i202002-202401

main28100-K0040i202002-202401

28110HOUSING ASSY, STARTER DRIVE

main28110-0Q160i202002-202401

28112BOLT, HOUSING SET

main28112-0Q160i202002-202401

28113LEVER, STARTER PINION DRIVE

main28113-0Q160i202002-202401

28120YOKE ASSY, STARTER

main28120-0Q160i202002-202401

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0Q160i202002-202401

28150SWITCH ASSY, MAGNET STARTER

main28150-0Q160i202002-202401

28160ARMATURE ASSY, STARTER

main28160-0Q160i202002-202401

main28160-21070i202002-202401

9010510592

main90105-10592

9415180800

main94151-80800

11 parts on this diagram · 2 diagrams in section

STARTER for Toyota YARIS

This section contains 15 genuine Toyota parts for the STARTER system of the Toyota YARIS. Key components include: CLUTCH SUB-ASSY, STARTER, CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, BOLT, HOUSING SET.
