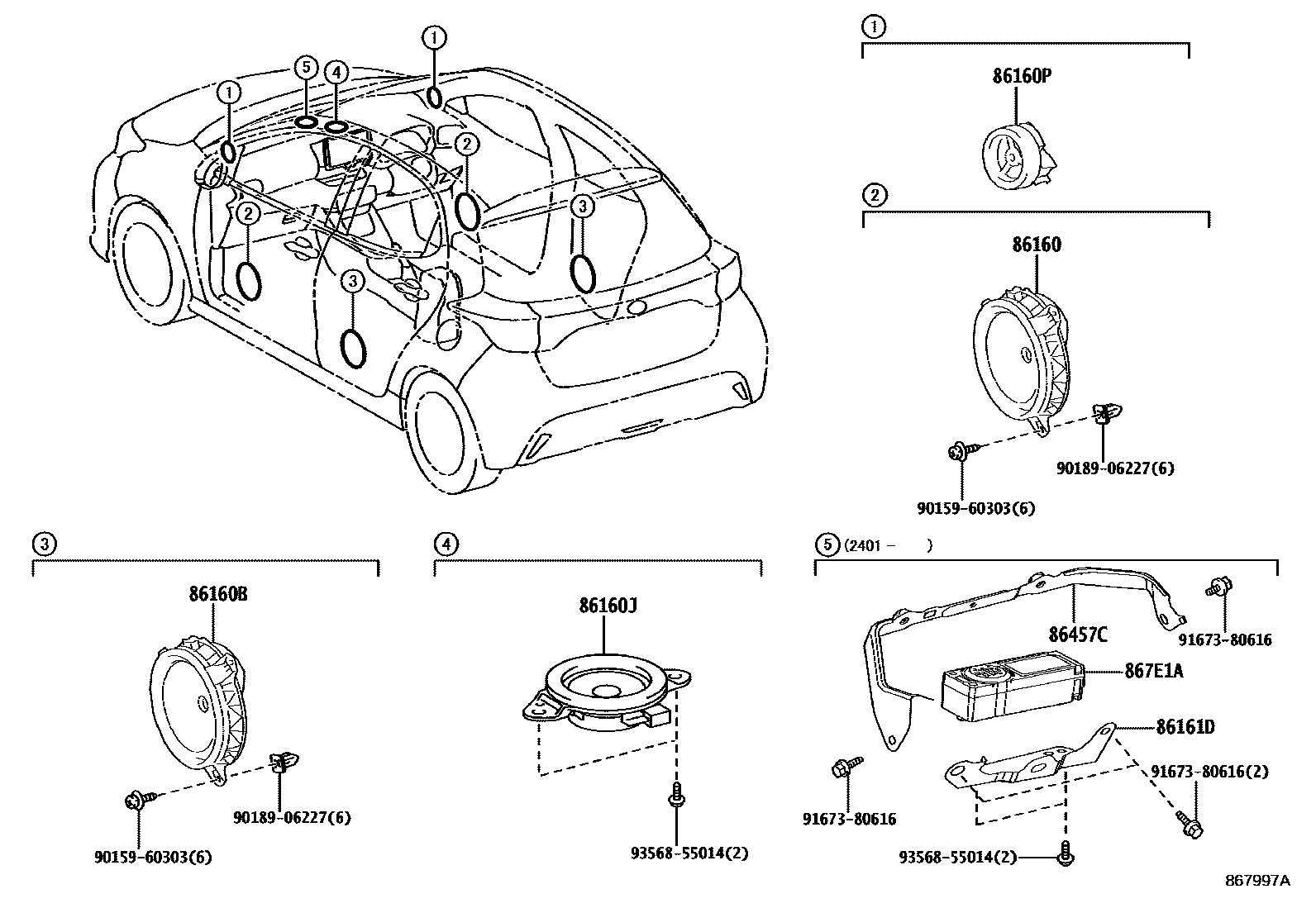

Toyota YARIS — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-30E00×2i202002-202401

86160BSPEAKER ASSY, REAR

main86160-30E00×2i202002

86160JSPEAKER ASSY, FRONT NO.3

main86150-52100i202002

86160PSPEAKER ASSY, FRONT NO.2

main86160-52170×2i202002-202401

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-52040i202401-202503

86457CBRACKET, MULTI-MEDIA MODULE

main86457-K0110i202401-202503

867E1ABOX, COMMUNICATION TELEMATICS

main867E1-33020i202401-202503

9015960303

main90159-60303

9018906227

main90189-06227

9167380616

main91673-80616

9356855014

main93568-55014

11 parts on this diagram · 1 diagram in section

SPEAKER for Toyota YARIS

This section contains 11 genuine Toyota parts for the SPEAKER system of the Toyota YARIS. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.3, SPEAKER ASSY, FRONT NO.2, BRACKET, SPEAKER MOUNTING, NO.1.
