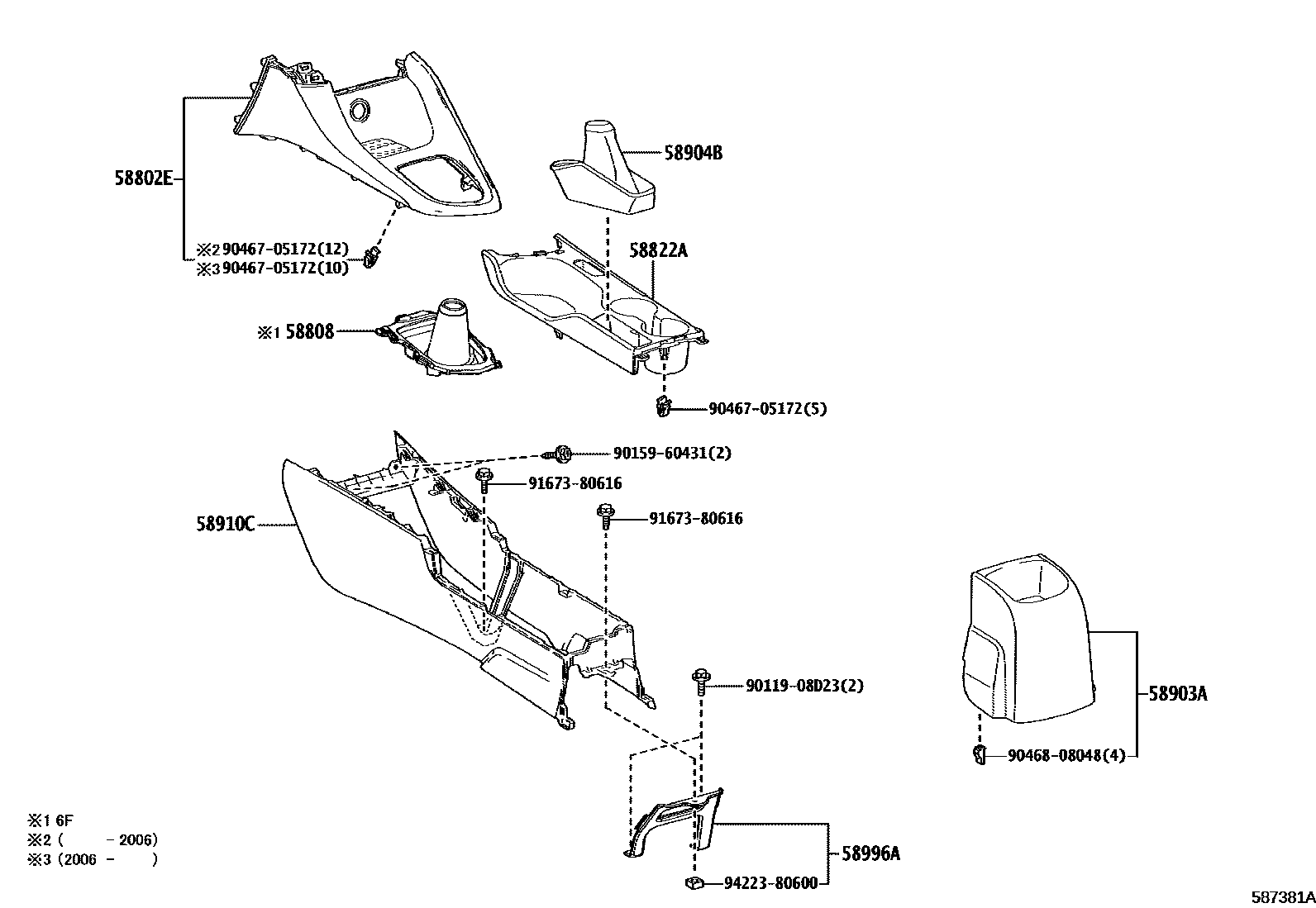

Toyota YARIS — CONSOLE BOX & BRACKET

0001 1 0002 1

58802EBOX SUB-ASSY, CONSOLE, FRONT

main58810-K0020-C2iKSP210,MXPA1#,MXPH14,17..U,X202401

BLACK/BLACK,TRIM2#

main58810-K0020-C3iKSP210,MXPA1#,MXPH1#..HBDX,X202002-202208

BLACK/TAUPE,TRIM4#

main58810-K0060-C0iMXPA15..G202002-202401

BLACK/BLACK/BLACK,TRIM11,20,21

main58810-K0060-C1iMXPH10,15..HBDG202002

BLACK/TAUPE/ROSE METALLIC,TRIM40

main58810-K0060-C2iKSP210,MXPA1#..G202002-202401

BLACK/TAUPE/BLACK,TRIM40

main58810-K0060-C3iMXPA1#..CVT..(G,Z)202002-202401

BLACK/LT.GRAY/ROSE METALL,TRIM10

main58810-K0060-C4iMXPH10,15..HBDG202002

BLACK/BLACK/ROSE METALLIC,TRIM20

main58810-K0060-C5iKSP210,MXPA1#,MXPH14,17..G,Z202401

BLACK,TRIM2#

main58810-K0060-C8iKSP210,MXPA1#,MXPH14,17..G202401

BLACK/SILVER,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-K0010-C1iMXPA10..6F..G202401

BLACK,TRIM2#,4#

58822APANEL, CONSOLE, UPPER REAR

main58822-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#,4#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-K0010-C0iMXPH10,15..HBDG202002

BLACK,TRIM1#,2#

main58903-K0020-C0iMXPA15..G202003-202401

BLACK,TRIM1#,2#,4#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-K0010-C1iMXPA1#..X;KSP210,MXPH1#..G,HBDX,X202002-202110

BLACK,TRIM1#,2#

main58904-K0011-C1iKSP210,MXPA1#,MXPH14,17..U,X,Z202401

BLACK,TRIM2#,4#

58910CBOX ASSY, CONSOLE, REAR

main58910-K0010-C0iMXPH10,15..HBDG202002

BLACK,TRIM1#,2#,4#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-K0010iKSP210,MXPA10,MXPH14,17202401

main58996-K0020iMXPA15202401

9011908D23

main90119-08D23

9015960431

main90159-60431

9046705172

main90467-05172

9046808048

main90468-08048

9167380616

main91673-80616

9422380600

main94223-80600

13 parts on this diagram · 2 diagrams in section
