Toyota YARIS — WINDSHIELD WIPER

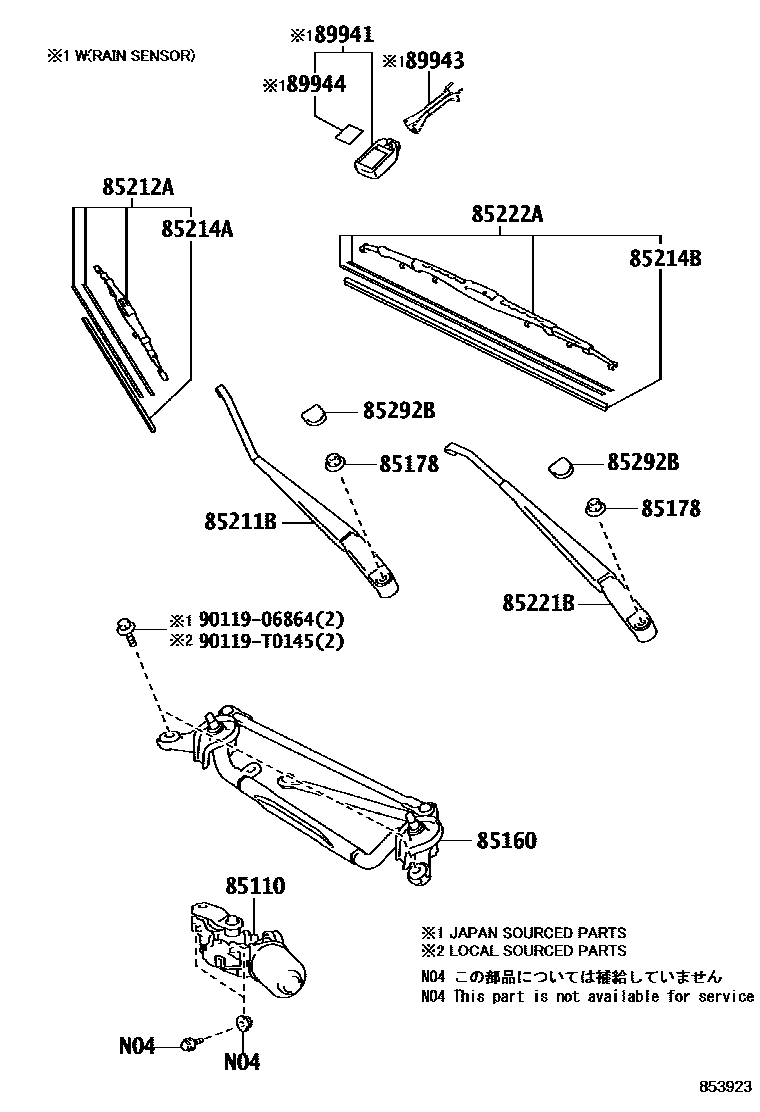

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0D150i201804-201811

main85110-0D151i201812-202101

main85110-0D210i201403-201606

main85110-0D220i201310-201609

main85110-0D250i201607-201708

main85110-0D260i201911-202302

main85110-0D290i201607-201708

main85110-0D320i201806-201910

main85110-0D340i201911-202207

85160LINK ASSY, WINDSHIELD WIPER

main85150-0D150i201804-202101

main85150-0D200i201710-202207

main85150-0D210i201310-201609

main85150-0D310i201806-201910

main85150-0D300i201607-201708

LATIN AMERICA SPEC&ARGENTINA SPEC; MEXICO SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2i201806-201910

(J)

main90182-T0029×2i201310-201708

85211BARM, FRONT WIPER, RH

main85211-0D190i201409-201802

main85211-0D200i201403-201708

main85211-0D210i201709-202207

main85211-0D260i201806-201910

85212ABLADE, FR WIPER, RH

main85212-0D070i201709-202302

main85212-0D081i201404-201708

main85212-0D150i201403-201404

main85212-0K050i201802

85214ARUBBER, WIPER, RH

main85214-02070i201802

main85214-02180i201404-201708

main85214-0D121i201710-202101

main85214-0D240i201403-201404

85214BRUBBER, WIPER, LH

main85214-02070i201403-201404

main85214-02180i201404-201802

main85214-0D121i201709-202207

main85214-0D240i201310-201712

85221BARM, FRONT WIPER, LH

main85221-0D170i201409-201604

main85221-0D180i201403-201708

main85221-0D190i201310-201606

main85221-0D210i201806-201910

main85221-0D300i201607-201708

LATIN AMERICA SPEC&ARGENTINA SPEC; MEXICO SPEC

85222ABLADE, FR WIPER, LH

main85222-0D071i201404-201606

main85222-0D080i201710-202108

main85222-0D150i201403-201404

main85222-0D160i201310-201712

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030×2i201709-202207

main85292-0D050×2i201409-201604

89941SENSOR, RAIN

main89941-52010i201806-201910

main89941-48080i202009-202302

G PACKAGE

89943COVER, RAIN SENSOR

main89943-47010i201806-201910

main89943-52050i202009-202302

G PACKAGE

89944TAPE, RAIN SENSOR

main89944-42010i201806-201910

main89944-42020i202009-202302

G PACKAGE

9011906864

main90119-06864

90119T0145

main90119-T0145

15 parts on this diagram · 2 diagrams in section

WINDSHIELD WIPER for Toyota YARIS

This section contains 15 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota YARIS. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
