Toyota YARIS — WINDSHIELD WIPER

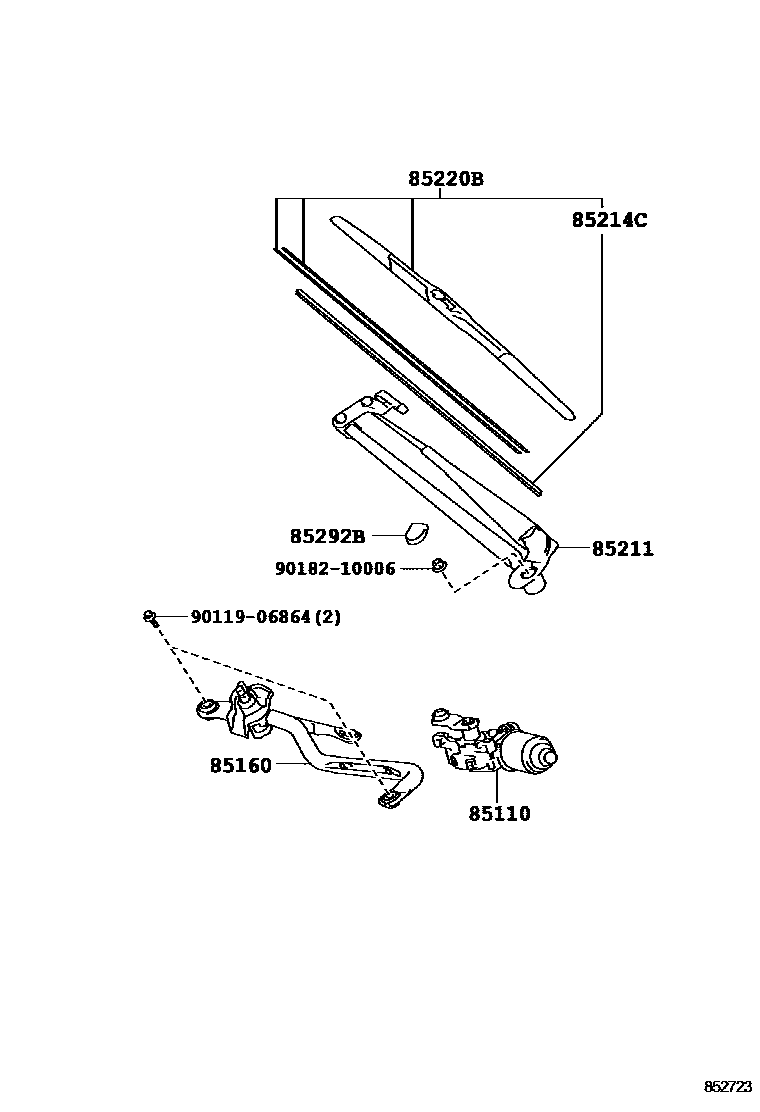

Parts diagram
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-52351i201407-201701
main85110-52600i201108-201407
sub85110-52351
main85110-52650i201108-201407
sub85110-0D191
85160LINK ASSY, WINDSHIELD WIPER
main85150-52580i201108-201701
main85150-52590i201108-201407
85211ARM, FRONT WIPER
main85211-52390i201108-201112
sub85211-52391
main85211-52391i201201-201212
main85211-52520i201212-201701
main85221-52380i201108-201109
sub85221-52381
main85221-52381i201110-201304
main85221-52490i201304-201407
85214CRUBBER, WIPER BLADE, CENTER
main85214-28080i201108-201110
main85214-52070i201201-201203
TYPE B
sub85214-28080
main85214-52070i201110-201701
sub85214-28080
main85214-52080i201108-201201
TYPE A
85220BBLADE, FRONT WIPER
main85212-52260i201108-201201
TYPE A
sub85212-52261
main85212-52270i201201-201202
TYPE B
sub85212-52271
main85212-52271i201203-201701
main85222-52270i201108-201109
main85222-52280i201110-201202
sub85222-52281
main85222-52281i201203-201407
85292BCAP, FRONT WIPER ARM HEAD
main85292-13010i201108-201304
main85292-52060i201212-201701
main85292-52070i201304-201407
9011906864
main90119-06864
9018210006
main90182-10006

8 parts on this diagram · 2 diagrams in section
