Toyota YARIS — WINDSHIELD WIPER

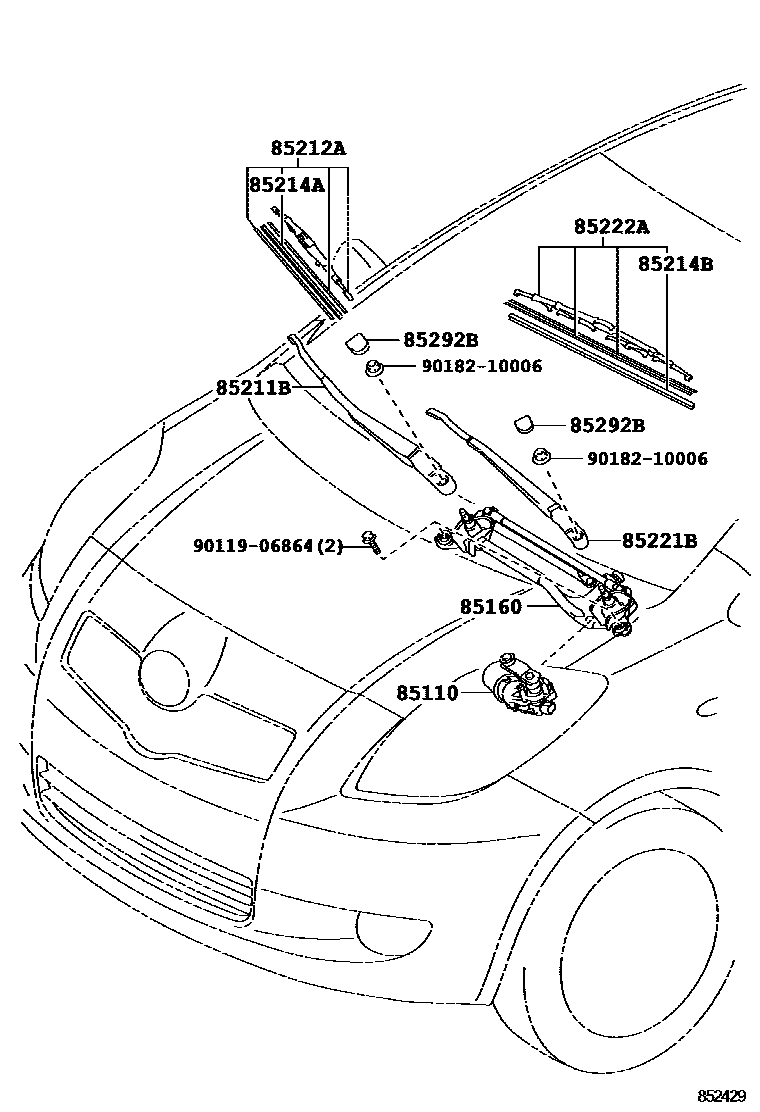

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-1A080i200808-201108

main85110-52280i200508-200708

main85110-52380i200808-201108

main85110-52490i200708-200808

85160LINK ASSY, WINDSHIELD WIPER

main85150-52230i200508-200808

main85150-52280i200508-200808

85211BARM, FRONT WIPER, RH

main85211-52210i200508-200808

main85211-52230i200508-200808

85212ABLADE, FR WIPER, RH

main85212-30370i200508-200808

main85212-44031i200508-200511

main85212-44032i200512-200808

85214ARUBBER, WIPER, RH

main85214-50100i200508-200808

main85214-68010i200508-200511

main85214-68011i200808-201107

85214BRUBBER, WIPER, LH

main85214-50100i200808-201107

main85214-68010i200508-200511

main85214-68011i200512-200808

85221BARM, FRONT WIPER, LH

main85221-52210i200808-201107

main85221-52230i200808-201107

85222ABLADE, FR WIPER, LH

main85222-24080i200808-201107

main85222-68010i200508-200511

main85222-68011i200512-200808

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i200508-200808

9011906864

main90119-06864

9018210006

main90182-10006

11 parts on this diagram · 2 diagrams in section

WINDSHIELD WIPER for Toyota YARIS

This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota YARIS. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
