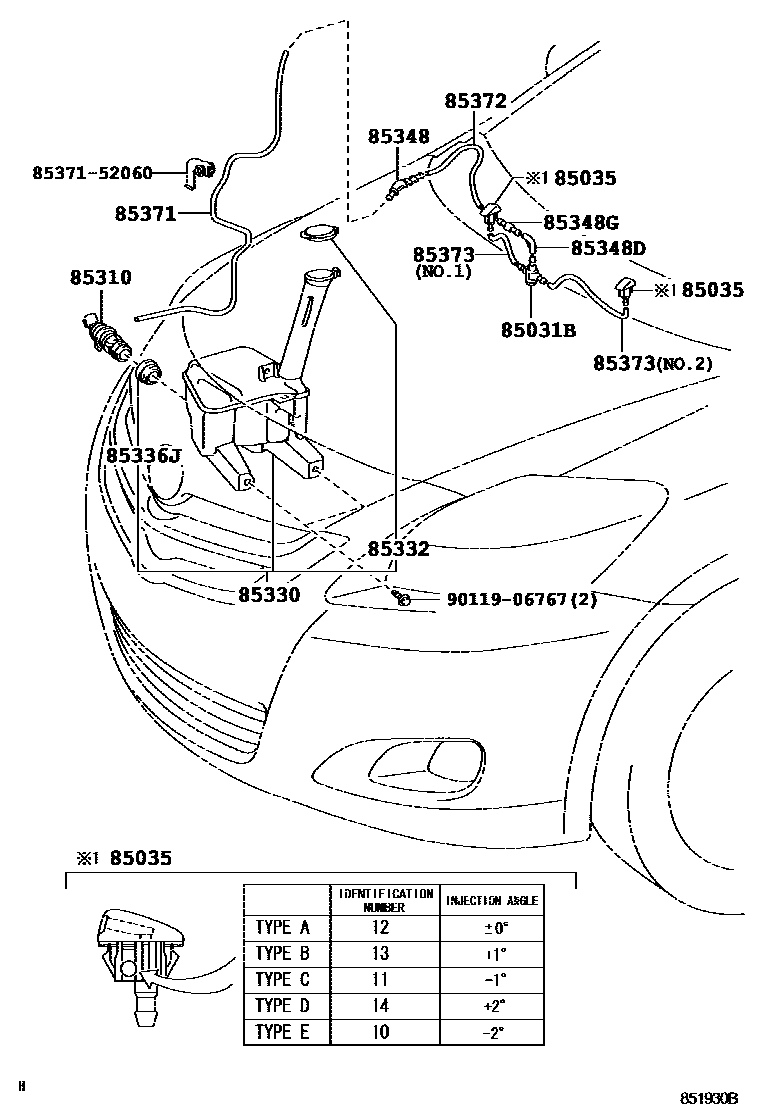

Toyota YARIS — WINDSHIELD WASHER
85031BVALVE SUB-ASSY, WASHER
85035NOZZLE SUB-ASSY, WASHER
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
TYPE D:REFER ILLUST.
TYPE E:REFER ILLUST.
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
sub85330-0D100
85330JAR ASSY, WINDSHIELD WASHER
85332CAP, WINDSHIELD WASHER JAR
85336JPROTECTOR, WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=780)
L=1450(*H,L=810)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=540)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=320),NO.1,NO.2
L=1450(*H,L=410),NO.1,NO.2
8537152060HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-52060
9011906767
main90119-06767
14 parts on this diagram · 1 diagram in section
