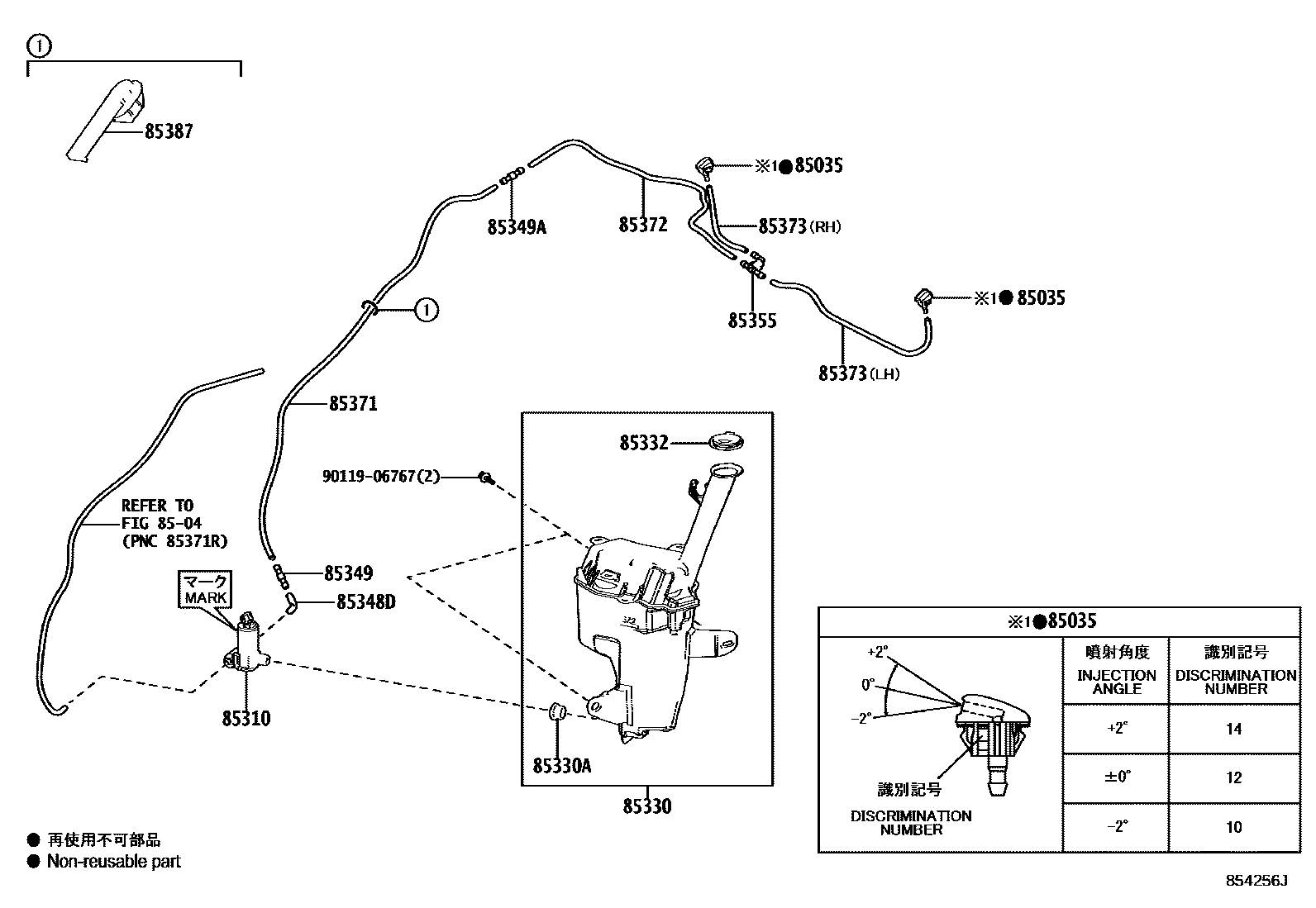

Toyota YARIS — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52430×2iMXPA10..6F202005-202205

ANGLE 0

main85381-52440×2iMXPA10,MXPH10..CVT202005-202401

ANGLE -2

main85381-52450×2iMXPA10202401-202501

ANGLE +2

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47090iMXPA10,MXPH10202005-202012

MARK=85330-47090

main85330-47091iMXPA10,MXPH10..CVT202101-202401

MARK=85330-47091

85330JAR ASSY, WINDSHIELD WASHER

main85315-K0030iMXPA10..6F202005-202205

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iMXPA10..6F202005-202205

85332CAP, WINDSHIELD WASHER JAR

main85316-16070iMXPA10..6F202005-202205

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85336-12230iMXPA10,MXPH10..CVT202005-202401

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iMXPA10..6F202005-202205

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iMXPA10..6F202005-202205

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iMXPA10..6F202005-202205

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-62228iMXPA10..6F202005-202205

L=800

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iMXPA10..6F202005-202205

L=1450(*H,L=670)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iMXPA10..6F202005-202205

L=1450(*H,L=150),LH,RH

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-52090iMXPA10..6F202005-202205

9011906767

main90119-06767

15 parts on this diagram · 1 diagram in section
