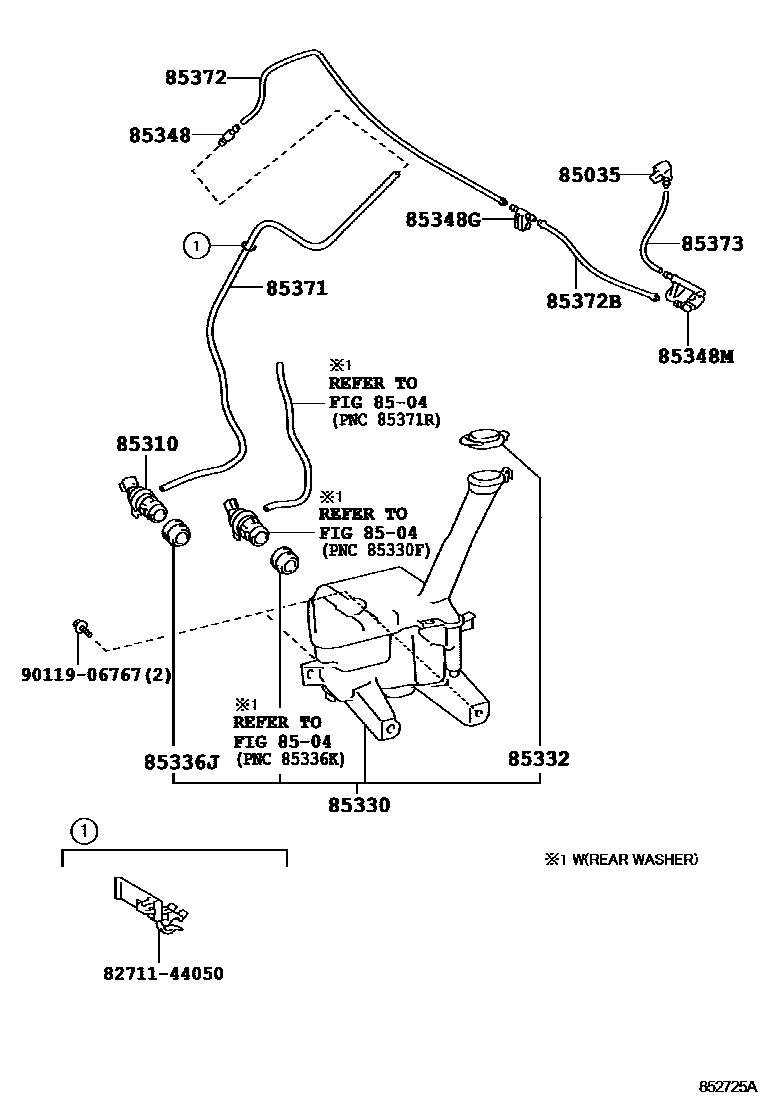

Toyota YARIS — WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-52360iNCP13#..RHD201108-201310

main85381-52361iNCP13#201407-201701

main85381-52370iNCP13#..LHD201108-201203

main85381-52371iNCP13#..LHD201204-201211

main85381-52460iNCP13#..LHD201211-201312

main85381-52461iNCP13#..LHD201312-201407

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iNCP13#201108-201407

sub85330-0D100

85330JAR ASSY, WINDSHIELD WASHER

main85315-52300iNCP13#201701

main85315-52330iNCP130..5F..(ARL,GCC)201108-201407

REAR WINDOW WIPER-WITHOUT

85332CAP, WINDSHIELD WASHER JAR

main85316-10270iNCP13#201108-201407

85336JPROTECTOR, WASHER JAR

main85336-60300iNCP13#201108-201407

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iNCP13#..LHD201108-201407

main85375-52190iNCP13#..RHD201108-201407

main85375-52441iNCP13#201412-201701

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85371-52070iNCP13#..LHD201108-201407

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85385-52200iNCP13#..LHD201108-201407

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iNCP13#201108-201407

L=1450(*H,L=740),REAR WINDOW WIPER-WITHOUT

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iNCP13#..LHD201108-201407

L=1450(*H,L=360)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iNCP13#..LHD201108-201407

L=1450(*H,L=290)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iNCP13#..RHD201108-201212

L=1450(*H,L=150)

8271144050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-44050

9011906767

main90119-06767

15 parts on this diagram · 2 diagrams in section
