Toyota YARIS — WINDSHIELD WASHER

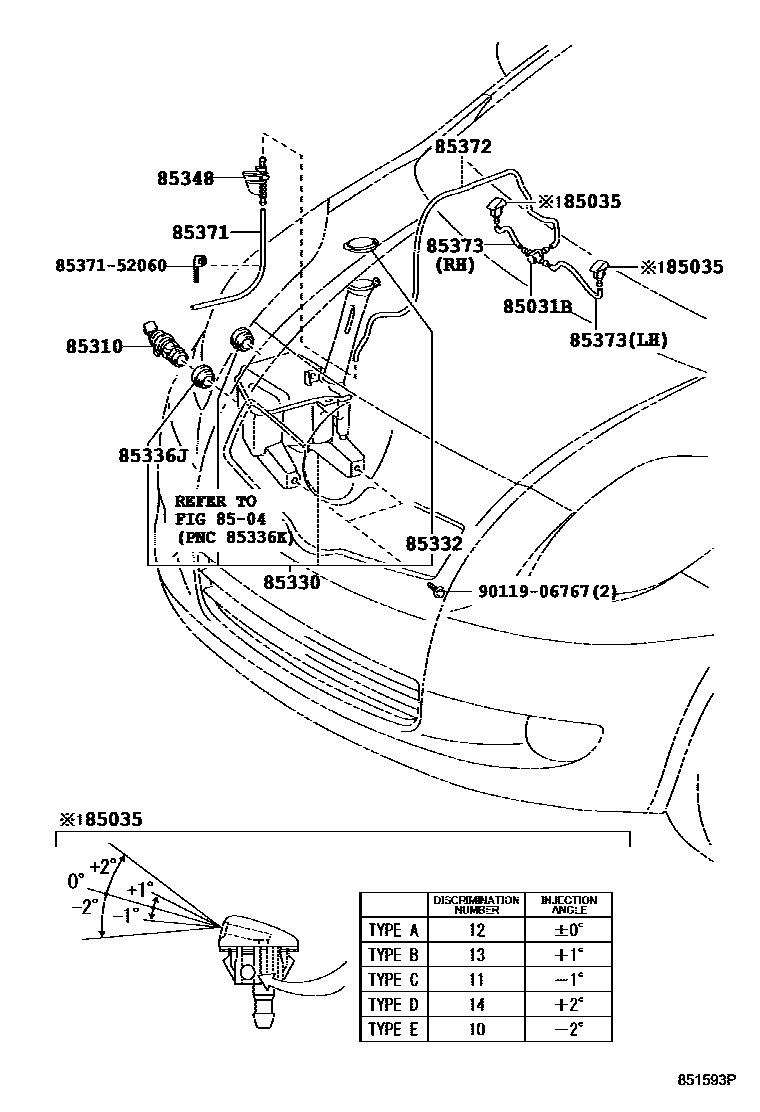

Parts diagram
85031BVALVE SUB-ASSY, WASHER
main85321-30080i200508-201107
85035NOZZLE SUB-ASSY, WASHER
main85381-52250i200508-201108
TYPE A:REFER ILLUST.
main85381-52280i200508-200808
TYPE B:REFER ILLUST.
main85381-52290i200508-200808
TYPE C:REFER ILLUST.
main85381-52300i200508-201108
TYPE D:REFER ILLUST.
main85381-52310i200508-201108
TYPE E:REFER ILLUST.
8504REAR WASHER
→ Go to FIG 85-04
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-21010i200508-201107
85330JAR ASSY, WINDSHIELD WASHER
main85315-52170i200508-201107
85332CAP, WINDSHIELD WASHER JAR
main85316-26030i200508-201107
85336JPROTECTOR, WASHER JAR
main85336-60300i200508-201107
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85385-52361i200508-201107
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33080i200508-201107
L=1450(*H,L=720)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33080i200508-201107
L=1450(*H,L=780)
main90099-33080i200508-201107
L=1450(*H,L=510)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080i200508-201107
L=1450(*H,L=180),LH,RH
main90099-33080i200508-201107
L=1450(*H,L=330),RH
main90099-33299i200508-201107
L=1000(*H,L=315),LH
8537152060HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-52060
9011906767
main90119-06767

13 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota YARIS

This section contains 13 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota YARIS. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
