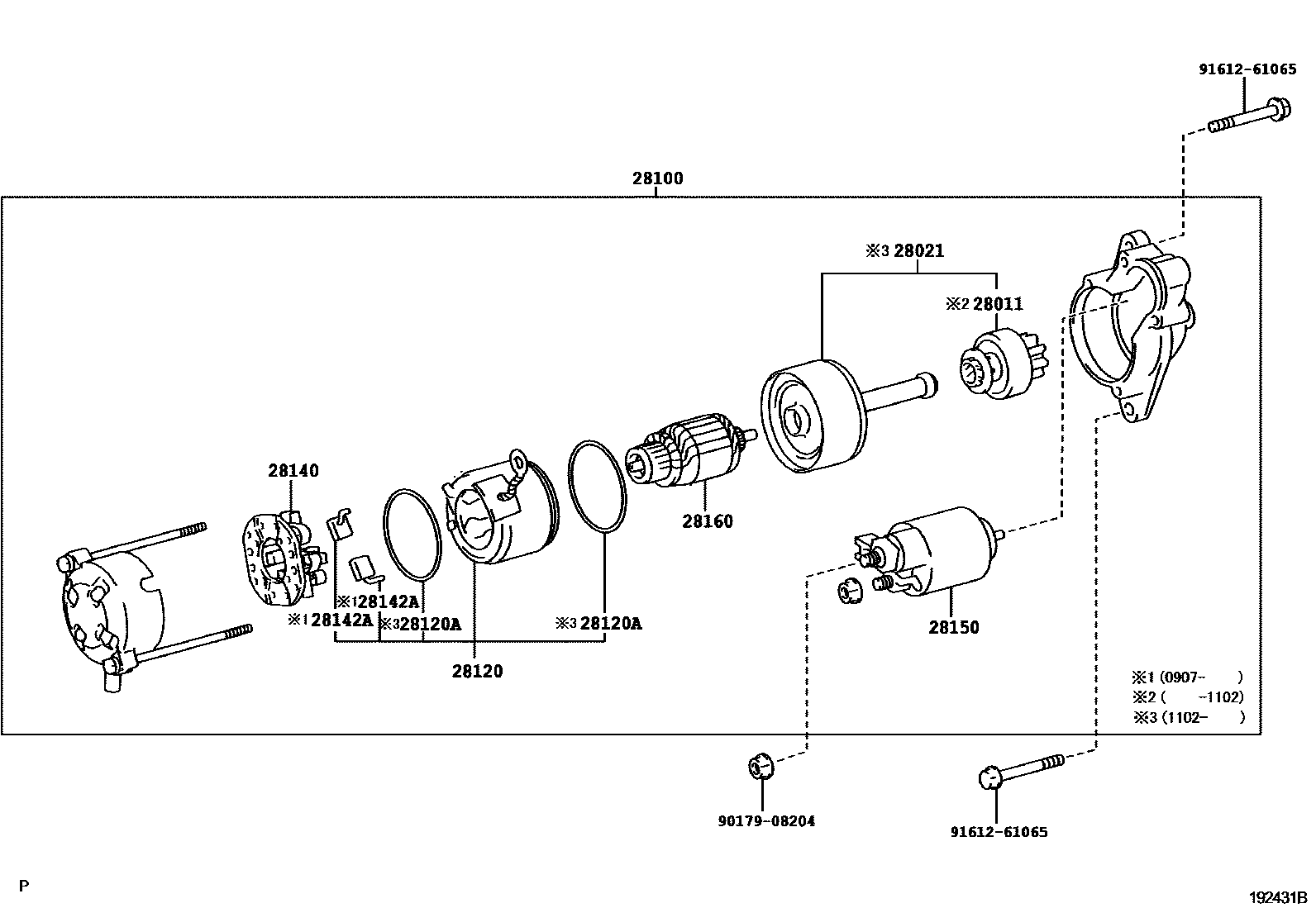

Toyota YARIS — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-70020i1NZFE,2NZFE..NCP9#200601-201102

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-70020i1NZFE,2NZFE..NCP9#201102

28100STARTER ASSY

main28100-21020i1NZFE,2NZFE..NCP9#200601-200906

12V 0.8KW

sub28100-21021

main28100-21021i1NZFE,2NZFE..NCP9#200907-201407

12V 0.8KW

sub28100-21022

main28100-21022i1NZFE..NCP93201408

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-47120i1NZFE,2NZFE..NCP9#200907

main28120-70020i1NZFE,2NZFE..NCP9#200601-200907

28120ARING, O(FOR STARTER YOKE)

main90099-14092i1NZFE,2NZFE..NCP9#201102

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i1NZFE,2NZFE..NCP9#200601-200808

28142ASTARTER KIT

main28142-70020i1NZFE,2NZFE..NCP9#200907

28150SWITCH ASSY, MAGNET STARTER

main28150-16160i1NZFE,2NZFE..NCP9#200601-200705

main28150-21020i1NZFE,2NZFE..NCP9#200706-200808

28160ARMATURE ASSY, STARTER

main28160-70021i1NZFE,2NZFE..NCP9#200601-200808

9017908204

main90179-08204

9161261065

main91612-61065

11 parts on this diagram · 1 diagram in section
