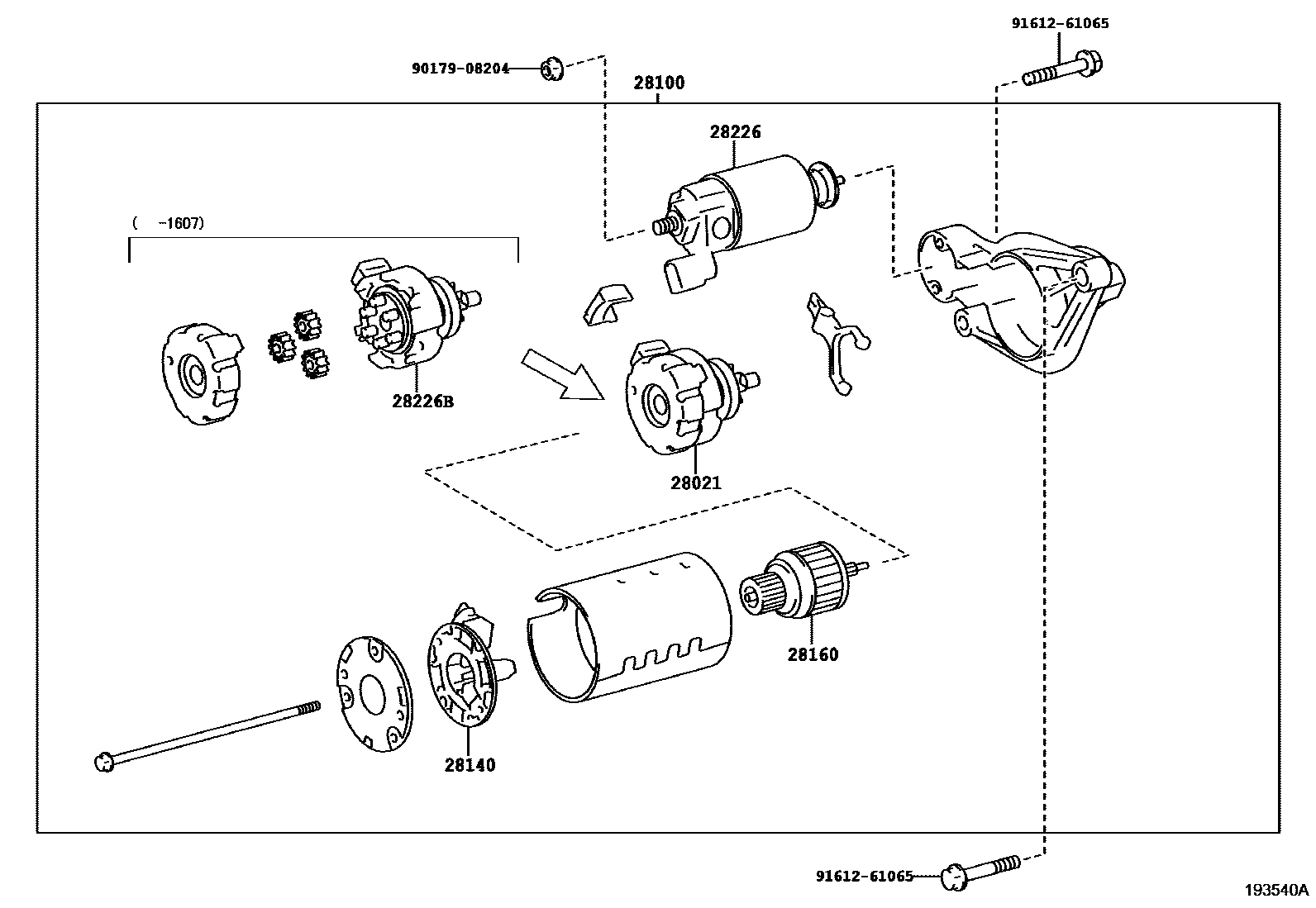

Toyota YARIS — STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21070i1NZFE,2NZFE..NCP13#201607-201701

main28021-21140i1NZFE,2NZFE..NCP13#201903

28100STARTER ASSY

main28100-21070i1NZFE,2NZFE..NCP13#201108-201407

12V 1.0KW

main28100-21140i1NZFE,2NZFE..NCP13#201903

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-21070i1NZFE,2NZFE..NCP13#201108-201407

28160ARMATURE ASSY, STARTER

main28160-21070i1NZFE,2NZFE..NCP13#201108-201407

main28160-47180i1NZFE,2NZFE..NCP13#201903

28226STARTER KIT, BATTERY TERMINAL

main28226-21080i1NZFE,2NZFE..NCP13#201108-201407

main28226-21081i1NZFE,2NZFE..NCP13#201409-201701

main28226-47180i1NZFE,2NZFE..NCP13#201903

28226BSTARTER KIT, REPAIR SERVICE

main28226-21070i1NZFE,2NZFE..NCP13#201108-201407

9017908204

main90179-08204

9161261065

main91612-61065

8 parts on this diagram · 1 diagram in section
