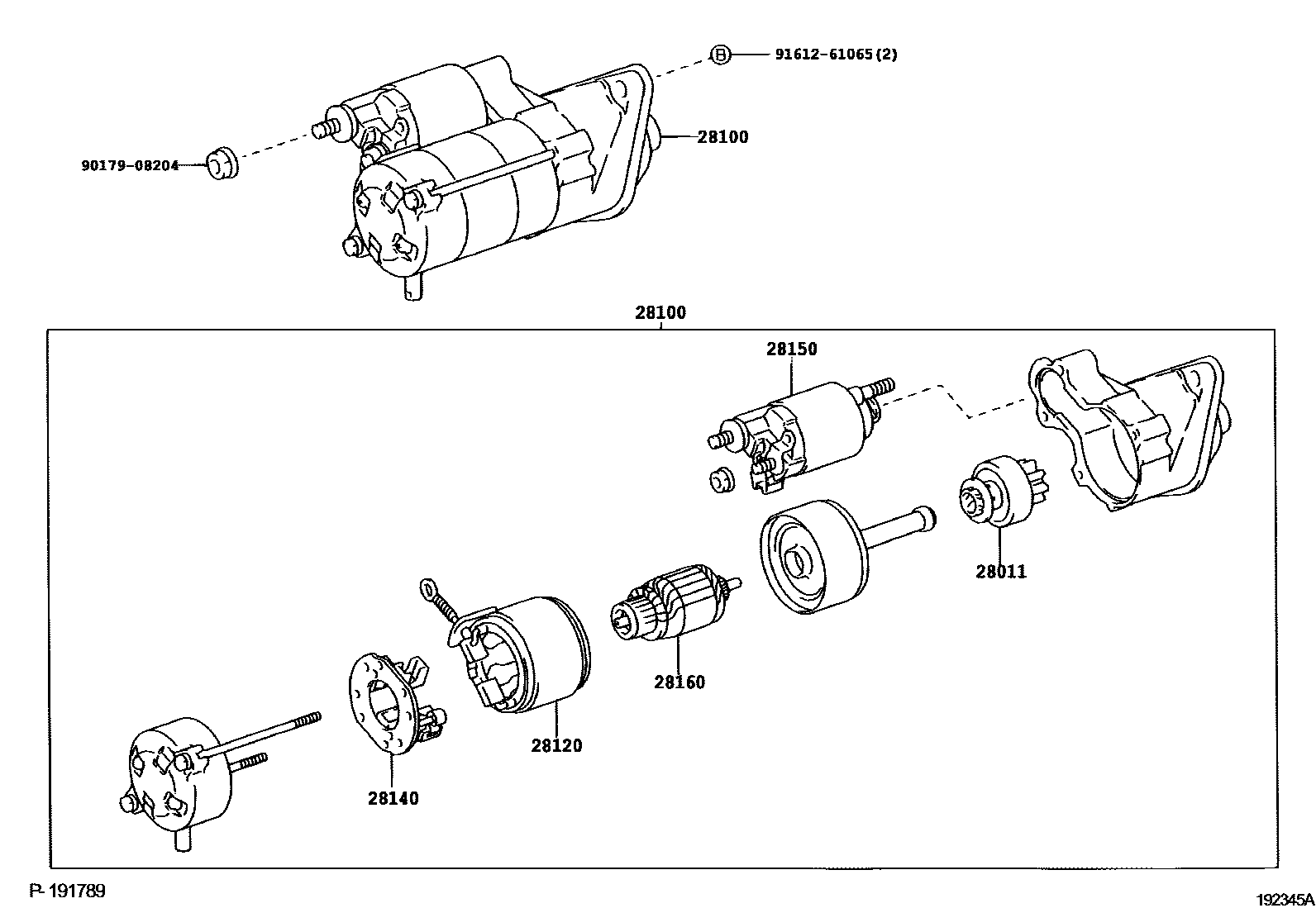

Toyota YARIS — STARTER

0001 112V 0.8KW 0002 112V 0.8KW 0003 112V 0.8KW

28011CLUTCH SUB-ASSY, STARTER

main28011-70020i1NZFE,2NZFE..NCP9#200508-201102

28100STARTER ASSY

main28100-21020i1NZFE,2NZFE..NCP9#200508-200906

12V 0.8KW

main28100-21021i1NZFE,2NZFE..NCP9#200907-201107

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-47120i1NZFE,2NZFE..NCP9#200907-201107

main28120-70020i1NZFE,2NZFE..NCP9#200508-200907

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i1NZFE,2NZFE..NCP9#200508-201107

28150SWITCH ASSY, MAGNET STARTER

main28150-16160i1NZFE,2NZFE..NCP9#200508-200705

main28150-21020i1NZFE,2NZFE..NCP9#200706-201107

28160ARMATURE ASSY, STARTER

main28160-70021i1NZFE,2NZFE..NCP9#200508-201107

9017908204

main90179-08204

9161261065

main91612-61065

8 parts on this diagram · 3 diagrams in section
