Toyota YARIS — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-2B580iNCP9#200601-201411

main86160-52300iNCP93201411

86160BSPEAKER ASSY, REAR

main86160-1A180iNCP92..RHD200703-200808

AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI

main86160-1A180iNCP92..RHD200703-200808

AUDIO (OVERSEAS MARKET)-RADIO LESS 2SPEAKER

main86160-1A180iNCP92..RHD200703-200808

AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER

main86160-1A180iNCP92;NCP93..GCC200703-200808

AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS)

main86160-1A180iNCP9#..GCC200808-201307

main86160-33680iNCP9#..GCC,GEN200601-200702

AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER

sub86160-1A180

main86160-33680iNCP93..ARL200601-200702

AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS)

sub86160-1A180

main86160-33680iNCP93..ARL200601-200702

AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI

sub86160-1A180

main86160-33680iNCP93..ARL200601-200702

AUDIO (OVERSEAS MARKET)-RADIO LESS 2SPEAKER

sub86160-1A180

9015970003

main90159-70003

9026905034

main90269-05034

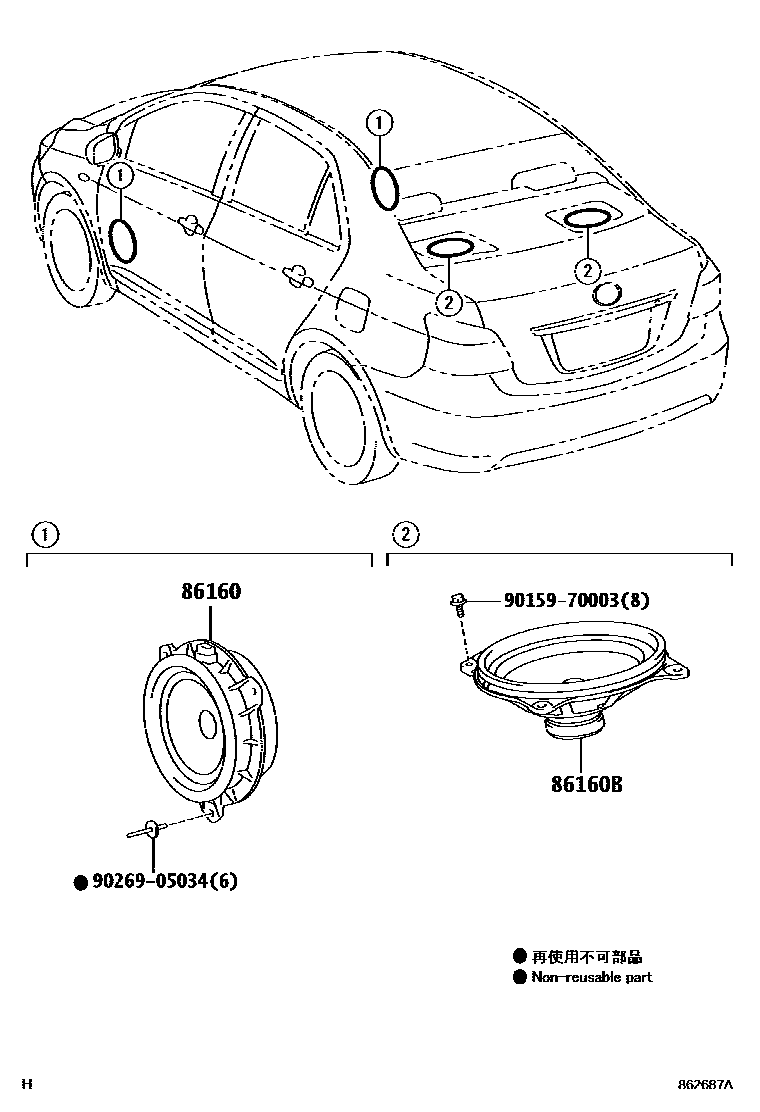

4 parts on this diagram · 1 diagram in section
