Toyota YARIS — SPEAKER

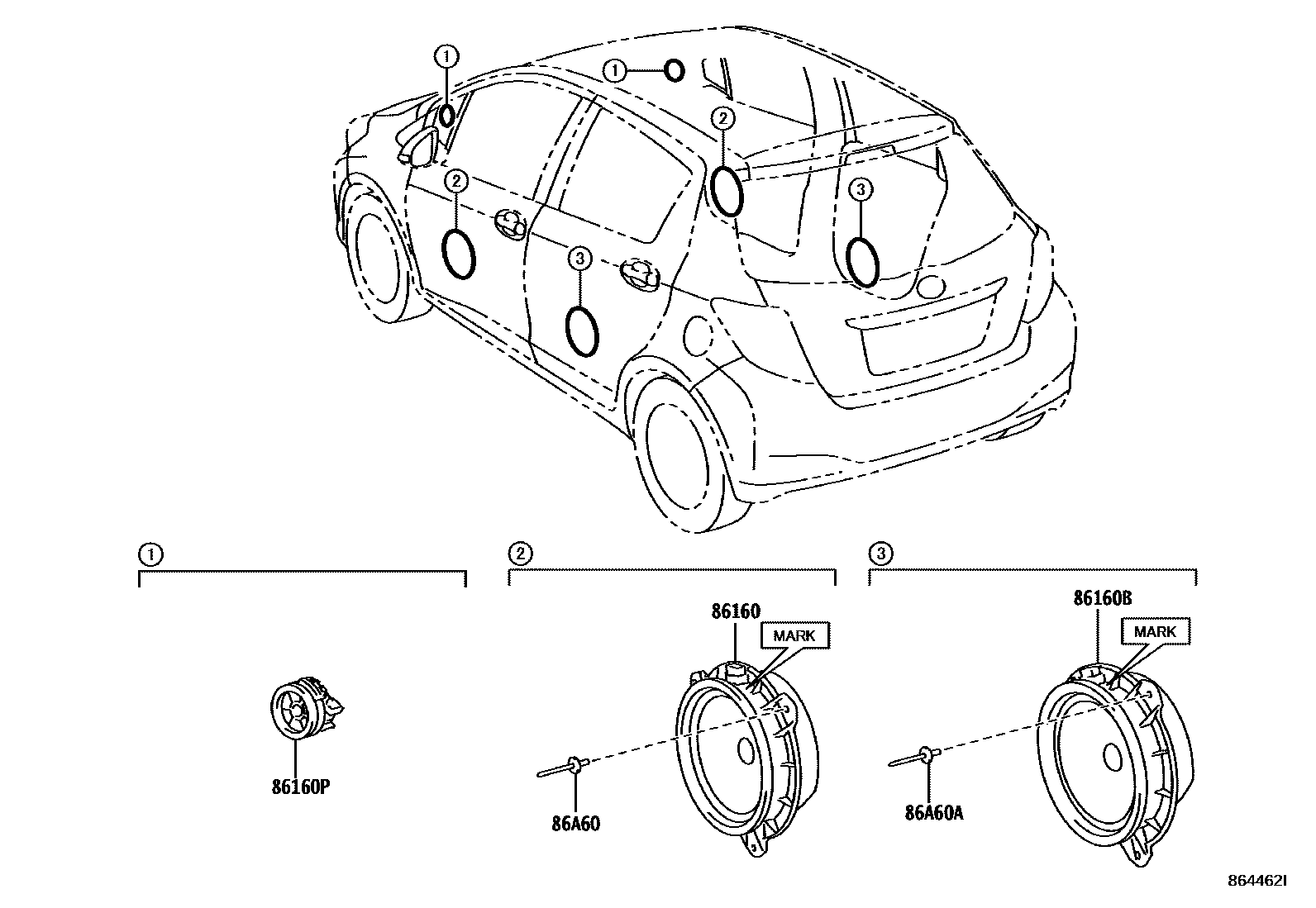

86160SPEAKER ASSY, FRONT NO.1
MARK = F7
AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SPEAKER
AUDIO(FOR OVERSEAS MARKET)-CD 4SPEAKER AM=10KHZ STEP
AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER
AUDIO(FOR OVERSEAS MARKET)-CD 4SPEAKER AM=5KHZ STEP
MARK = N5
AUDIO(FOR OVERSEAS MARKET)-CD 4SPEAKER AM=10KHZ STEP
sub86160-52331
AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER
sub86160-52331
AUDIO(FOR OVERSEAS MARKET)-CD 4SPEAKER AM=5KHZ STEP
sub86160-52331
AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SPEAKER
sub86160-52331
sub86160-52331
86160BSPEAKER ASSY, REAR
MARK = F7
AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SPEAKER
AUDIO(FOR OVERSEAS MARKET)-CD 4SPEAKER AM=10KHZ STEP
AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER
AUDIO(FOR OVERSEAS MARKET)-CD 4SPEAKER AM=5KHZ STEP
AUDIO-CD & 6SPEAKER & BLUETOOTH
MARK = N5
AUDIO(FOR OVERSEAS MARKET)-CD 4SPEAKER AM=5KHZ STEP
sub86160-52331
AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER
sub86160-52331
AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SPEAKER
sub86160-52331
AUDIO(FOR OVERSEAS MARKET)-CD 4SPEAKER AM=10KHZ STEP
sub86160-52331
86160PSPEAKER ASSY, FRONT NO.2
AUDIO-RADIO LESS & 6SPEAKER
AUDIO-CD & 6SPEAKER & BLUETOOTH
86A60RIVET (FOR RADIO SPEAKER)
AUDIO(FOR OVERSEAS MARKET)-CD 4SPEAKER AM=10KHZ STEP
AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SPEAKER
AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER
AUDIO(FOR OVERSEAS MARKET)-CD 4SPEAKER AM=5KHZ STEP
REFER TO PNC 86160
REFER TO PNC 86160
86A60ARIVET (FOR RADIO SPEAKER)
AUDIO(FOR OVERSEAS MARKET)-CD 4SPEAKER AM=10KHZ STEP
AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SPEAKER
REFER TO PNC 86160B
AUDIO-CD & 6SPEAKER & BLUETOOTH
AUDIO(FOR OVERSEAS MARKET)-CD 4SPEAKER AM=5KHZ STEP
AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 4SPEAKER
REFER TO PNC 86160B
5 parts on this diagram · 1 diagram in section
