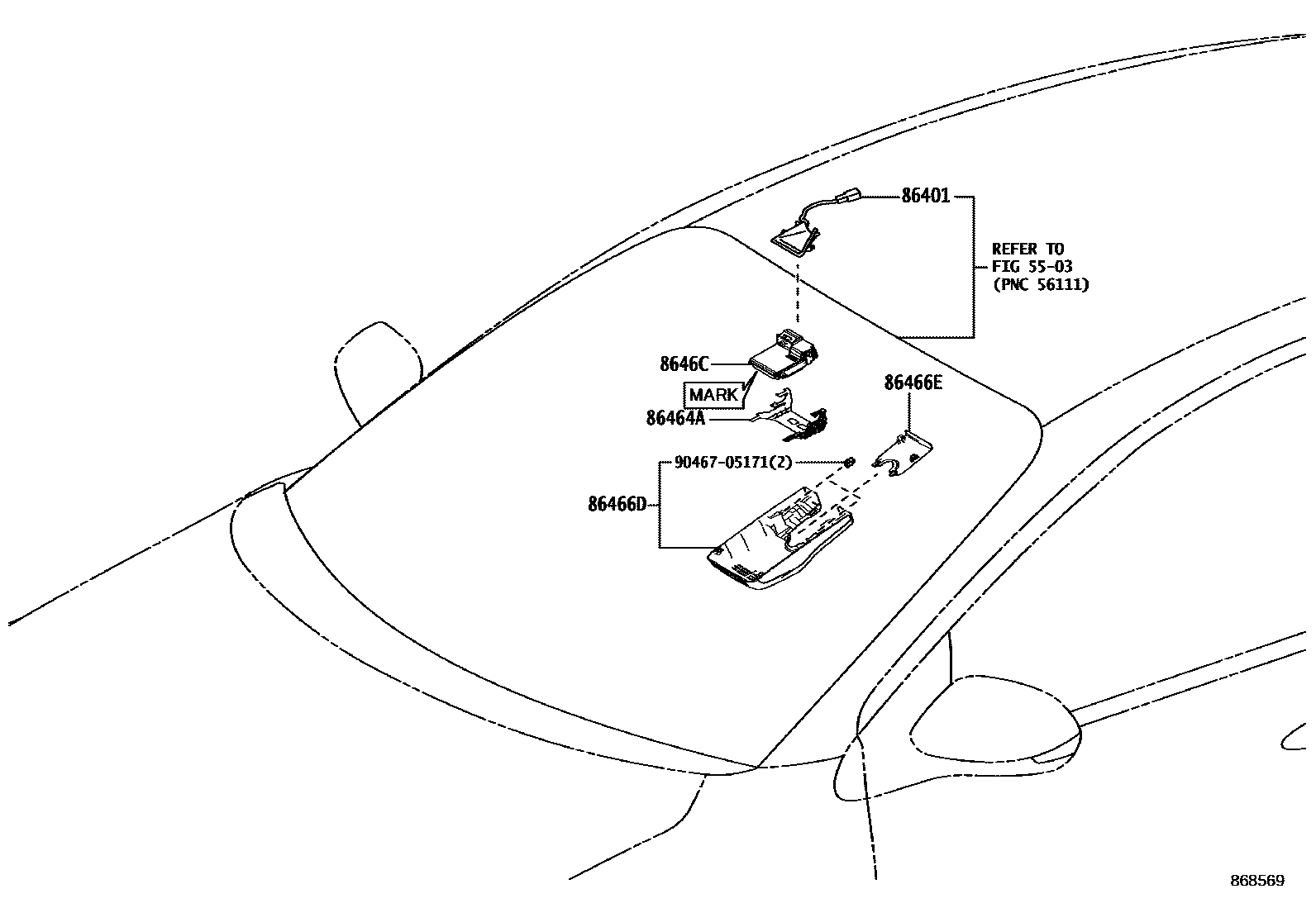

Toyota YARIS — PRE-COLLISION SYSTEM

0001 1 0002 1

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-K0010iMXPA10,MXPH10202005-202401

86464ALATCH, FORWARD RECOGNITION

main86464-K0010iMXPA10,MXPH10202005-202401

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-52190iMXPA10202401-202501

main86466-K0010iMXPA10,MXPH10202005-202401

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-K0020iMXPA10,MXPH10202005-202401

main86467-52070iMXPA10202401-202501

8646CCAMERA, FORWARD RECOGNITION

main8646C-52030iMXPA10,MXPH10202101-202105

*614,MARK8646C-52030

main8646C-52080iMXPA10,MXPH10202105-202401

*614,MARK8646C-52080

main8646C-52250iMXPA10202401-202501

*614

main8646C-K0010iMXPA10,MXPH10202005-202105

*614,MARK8646C-K0010

9046705171

main90467-05171

7 parts on this diagram · 2 diagrams in section
