Toyota YARIS — PARTIAL ENGINE ASSEMBLY

Parts diagram

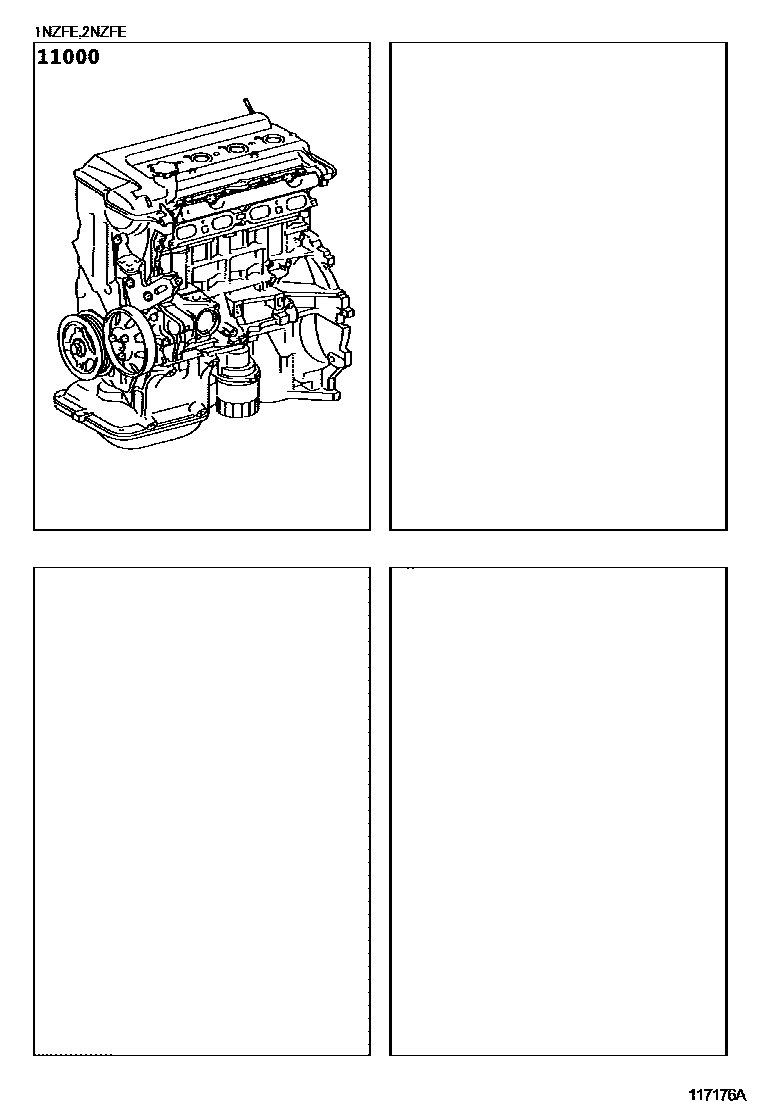

11000ENGINE ASSY, PARTIAL

main19000-21831i201407-201506

main19000-21C02i201108-201407

main19000-21C60i201701-202001

main19000-21C90i201701-202001

main19000-21E00i201506-201609

1 parts on this diagram · 1 diagram in section
